5. Xtender Monitoring Program for PC
 INTEGRATED MONITORING PROGRAM – LOG FILE VIEWING &
PRINTING

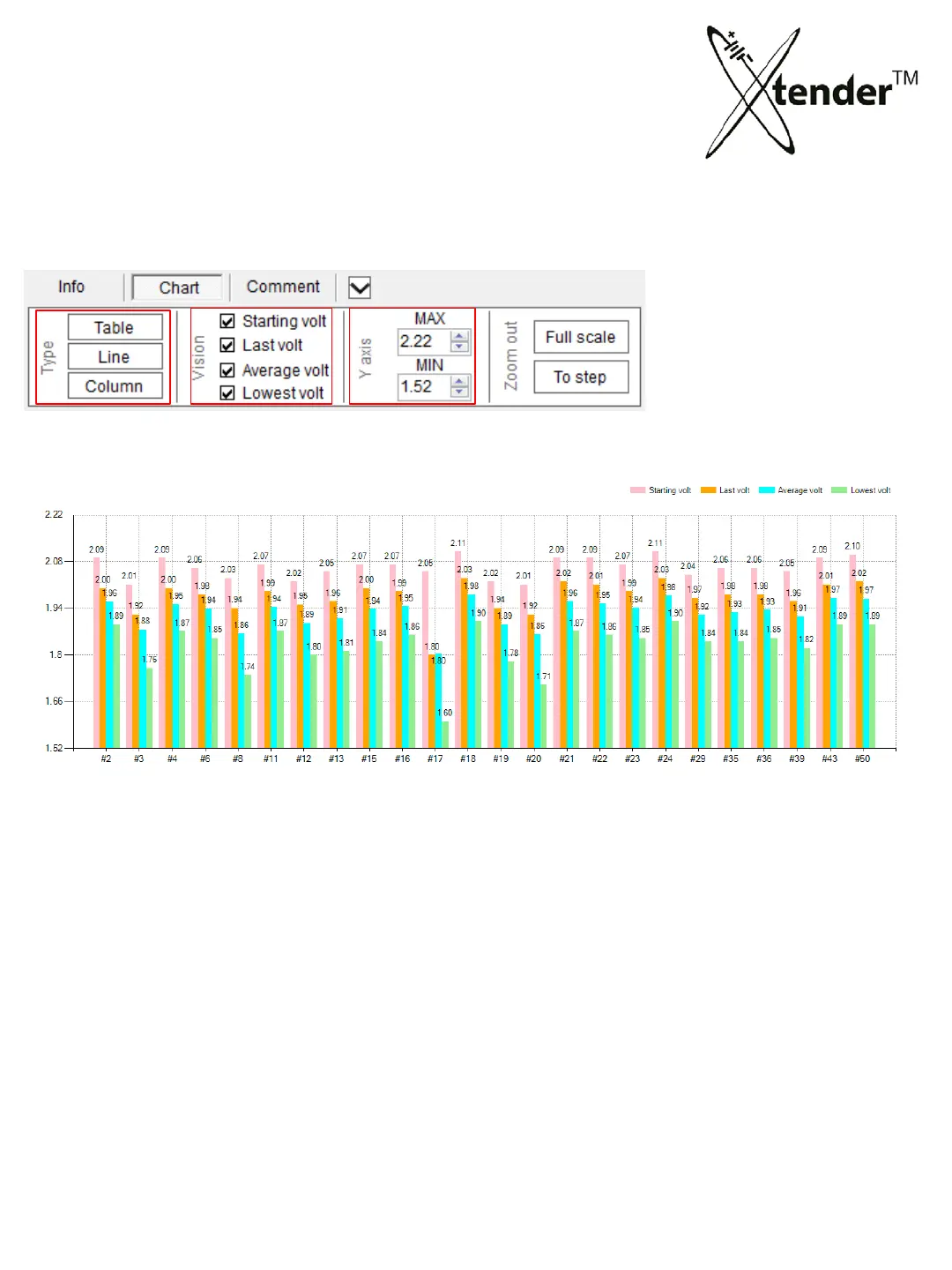

 BMS Log file : Bottom Menus – Column
[Column Graph Example]
1
1. Column
2
3
2. Vision 3. Y axis
You can change minimum or maximum value of the Set
Voltage for Y axis.
 Starting volt :
 Last volt :
 Average volt :
 Lowest volt :
Select Voltage from the list to output.
