Flintec FAA-27 - 4.4 Changing the Analogue Output; 4.5 Serial Port Connection

FAA-27, Technical Manual, Rev. 1.1, June 2014
Page 9 of 21
Pin Name
Definition
I
Current Output
V
Voltage Output
G
GND
Shield

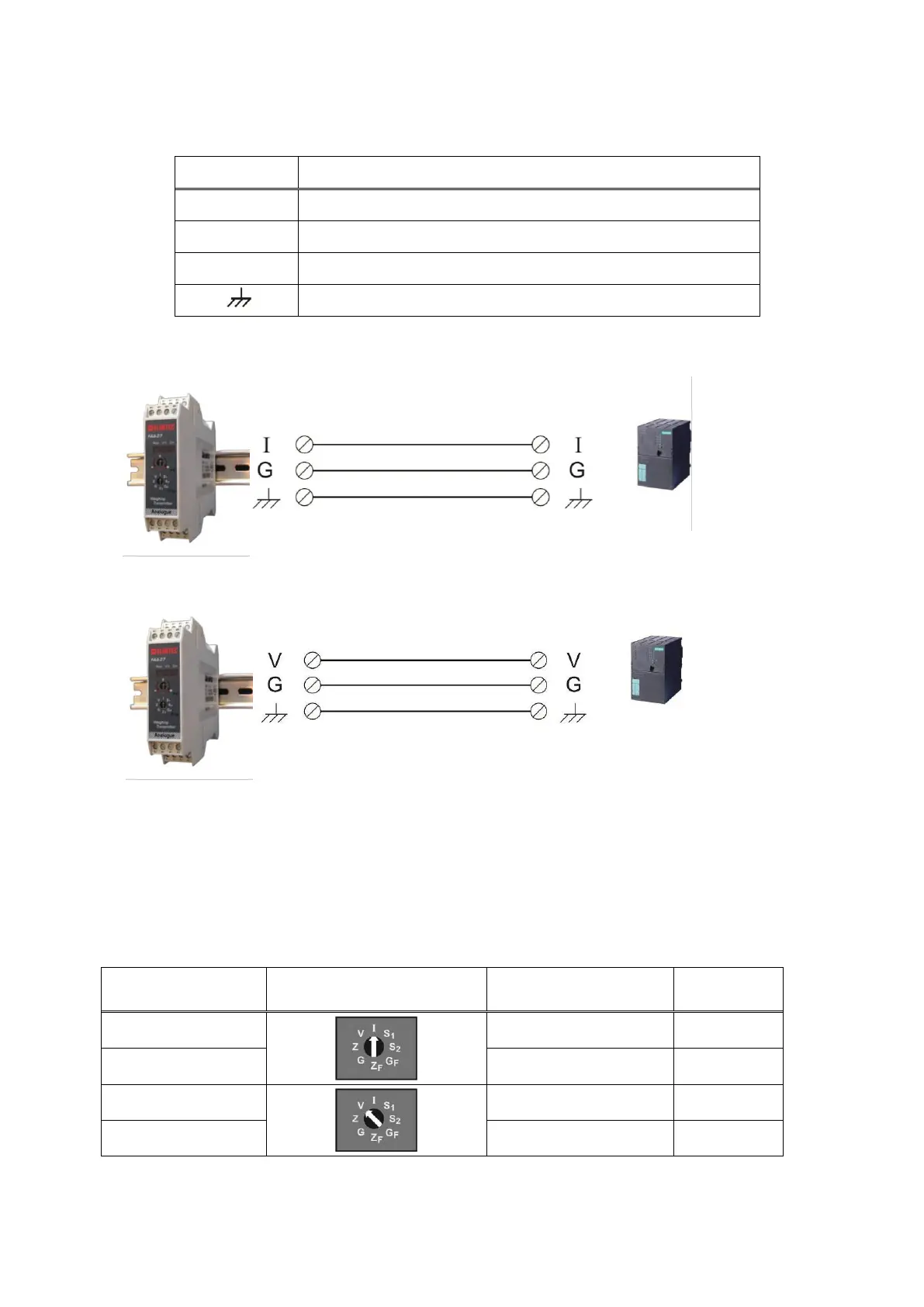

Current output connection
Voltage output connection
4.4 Changing the Analogue Output
FAA-27 sets its analog output according to the table below at power on. Turn the
programming switch and connect TxD and RxD pins as indicated in the table below
before power on the instrument to set analog output type and its signal level.
Analogue
Output Range
Prog. Switch Position
TxD & RxD pins
V / I LED
4 - 20 mA
Open circuited
On
0 - 20 mA
Short circuited
Off
0 - 10 VDC
Open circuited
Flash
0 - 5 VDC
Short circuited
Blinking
