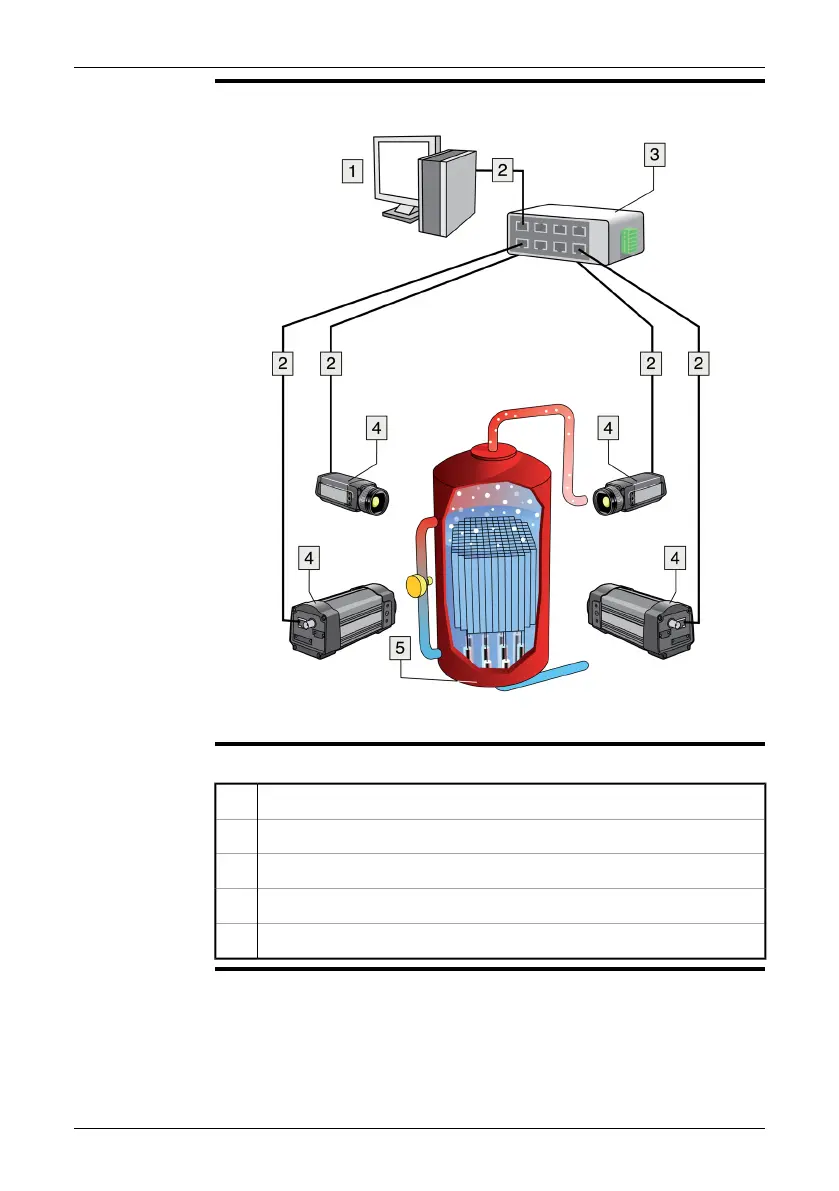

Figure
10777503;a3
Explanation
This
table
explains
the
figure:
Computer
1
CA
T
-6
Ethernet™
cable
with
RJ45
connectors
2
Industrial
Ethernet™
switch
3
FLIR
A3XX/A6XX
cameras
4
Industrial
process
to
be
monitored,
e.g.,
a
gasifier
5
Publ.
No.
T559498
Rev
.
a461
–
ENGLISH
(EN)
–
August
19,
2010
27
11
–
Example
system
overviews
32
34
Table of Contents
Default Chapter
5
Table of Contents
5
1 Warnings & Cautions
7
2 Notice to User
9
3 Customer Help
11
4 Documentation Updates
12
5 Important Note about this Manual
13
6 Overview of Camera Models
14
Flir A300
14
Flir A310
15
Flir A315
16
FLIR A320 Tempscreen
17
Flir A615
18
7 Packing List
19
8 Installation
20
General Information
20
System Requirements
21
Installation
22
9 Mechanical Installation
23
Installation of Fixed Cameras
23
Mounting and Removing Lenses (FLIR A3XX Series)
24
Mounting an Additional Infrared Lens
24
Removing an Additional Infrared Lens
25
Mounting and Removing Lenses (FLIR A6XX Series)
26
Removing an Infrared Lens
26
Mounting an Infrared Lens
27
10 Connectors, Controls, and Indicators
28
11 Example System Overviews
32
12 Temperature Screening
35
13 Cleaning the Camera
37
Camera Housing, Cables, and Other Items
37
Infrared Lens
38
Infrared Detector
39
14 Technical Data
40
15 Pin Configurations
41
16 Mechanical Drawings
43
FLIR A3XX Series
43
Camera Dimensions (Front)
43
Camera Dimensions (Side)
44
Camera Dimensions (Bottom)
45
Camera Dimensions (with 10 MM/45° Lens)
46
Camera Dimensions (with 30 MM/15° Lens)
47
Infrared Lens (10 MM/45°)
48
Infrared Lens (30 MM/15°)
49
FLIR A6XX Series
50
Camera Dimensions (Front View, Without Lens)
50
Camera Dimensions (Side View, Without Lens)
51
Camera Dimensions (Side View, with 24.5 MM/25° Lens)
52
Specification of Mounting Interfaces, #1
53
Specification of Mounting Interfaces, #2
54
Camera Dimensions (Rear View)
55
Infrared Lens (24.5 MM/25°)
56
17 About FLIR Systems
57
More than Just an Infrared Camera
58
Sharing Our Knowledge
58
Supporting Our Customers
58
A few Images from Our Facilities
59
18 Glossary
61
19 Thermographic Measurement Techniques
65
Introduction
65
Emissivity
65
Finding the Emissivity of a Sample
66
Step 1: Determining Reflected Apparent Temperature
66
Step 2: Determining the Emissivity
68
Reflected Apparent Temperature
69
Distance
69
Relative Humidity
69
Other Parameters
69
20 History of Infrared Technology
70
21 Theory of Thermography
74
Introduction
74
The Electromagnetic Spectrum
74
Blackbody Radiation
75
Planck's Law
76
Wien's Displacement Law
77
Stefan-Boltzmann's Law
79
Non-Blackbody Emitters
80
Infrared Semi-Transparent Materials
82
22 The Measurement Formula
84
23 Emissivity Tables
90
References
90
Important Note about the Emissivity Tables
90
Tables
91
