Pin configurations
11
11.1 Ethernet connector and cable

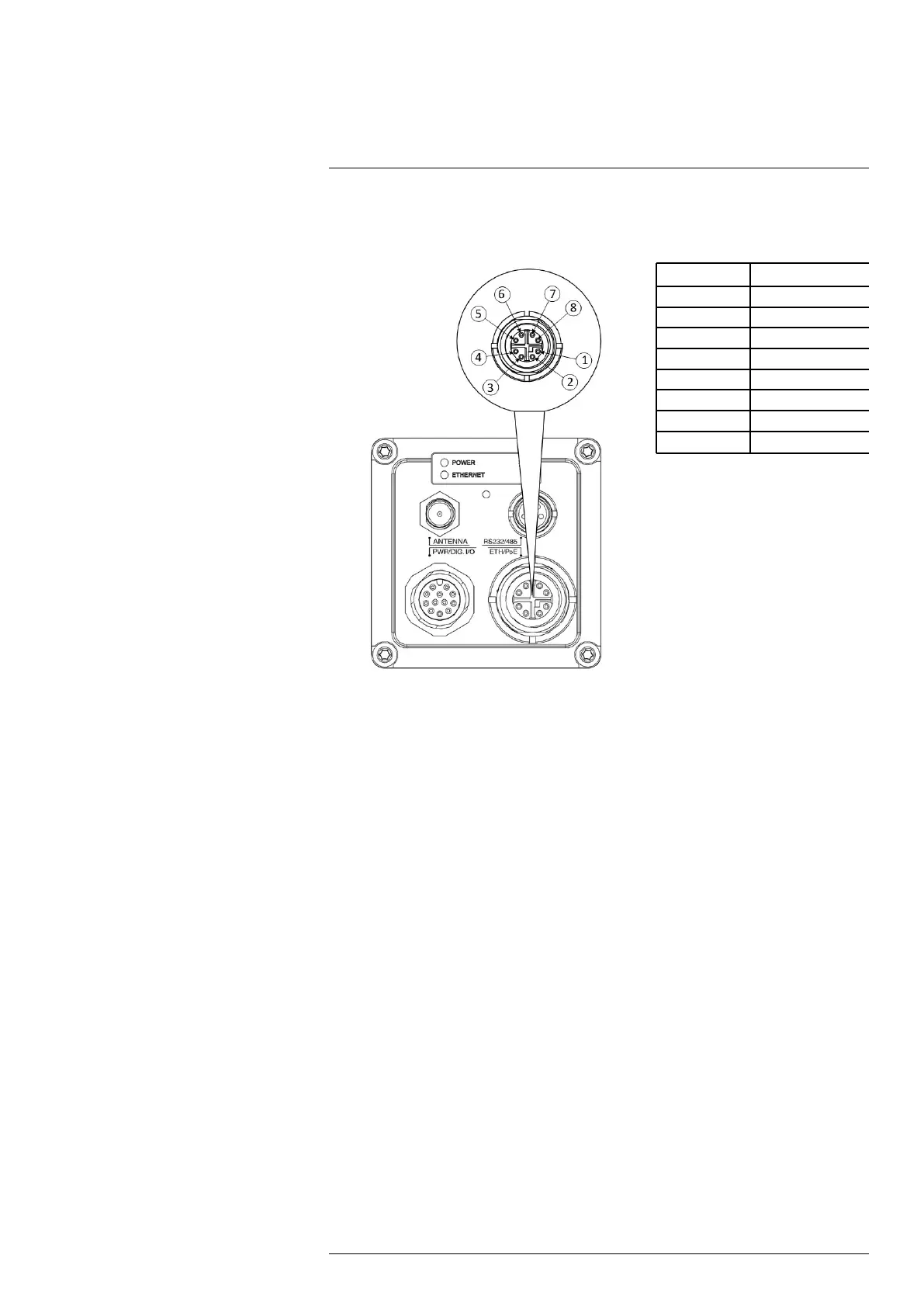

Figure 11.1 Female X-coded M12 Ethernet connector
Pin Configuration
1 DA+
2 DA-
3 DB+
4 DB-
5
DD+
6 DD-
7
DC-
8
DC+
#T810579; r. AB/78918/78918; en-US
