FLIR A50 Series - Power and Digital I;O Connections; Power;Digital I;O Connector Pinout

Pin configurations
11
11.2 Power/Digital I/O connector and cable

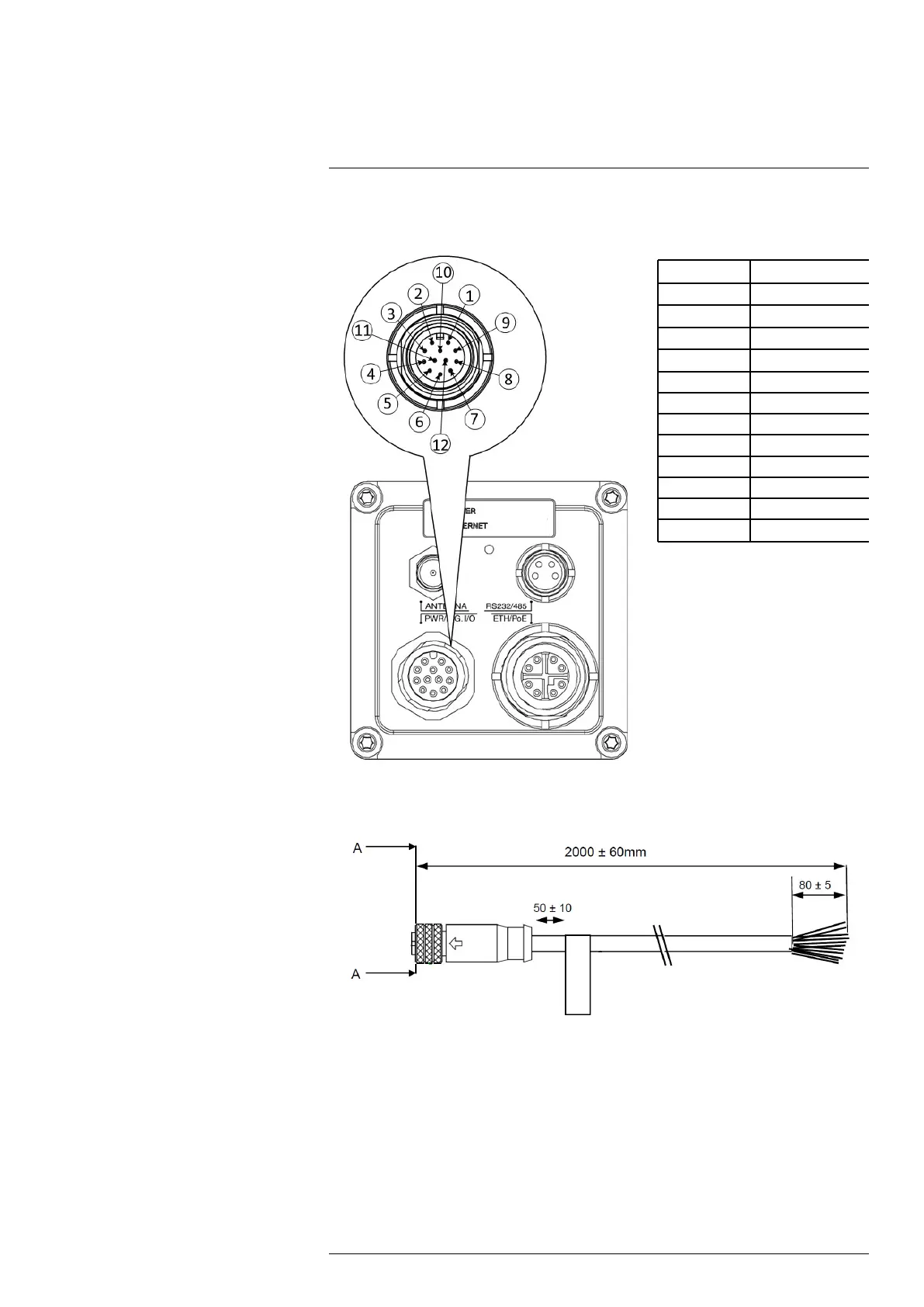

Figure 11.3 Male A-coded M12 Power/Digital I/O
connector
Pin Configuration
1 EXTPWR_RTN
2 EXTPWR_IN
3 FAULT_A
4 FAULT_B
5
DIGOUT1A
6
DIGOUT1B
7
DIGOUT2A
8
DIGOUT2B
9
DIGIN1
10
DIGIN2
11
Not Connected
12
DIGIN_RTN
