427-0073-12-12 Version 120 May 2015 3-5
3
Advanced Configuration

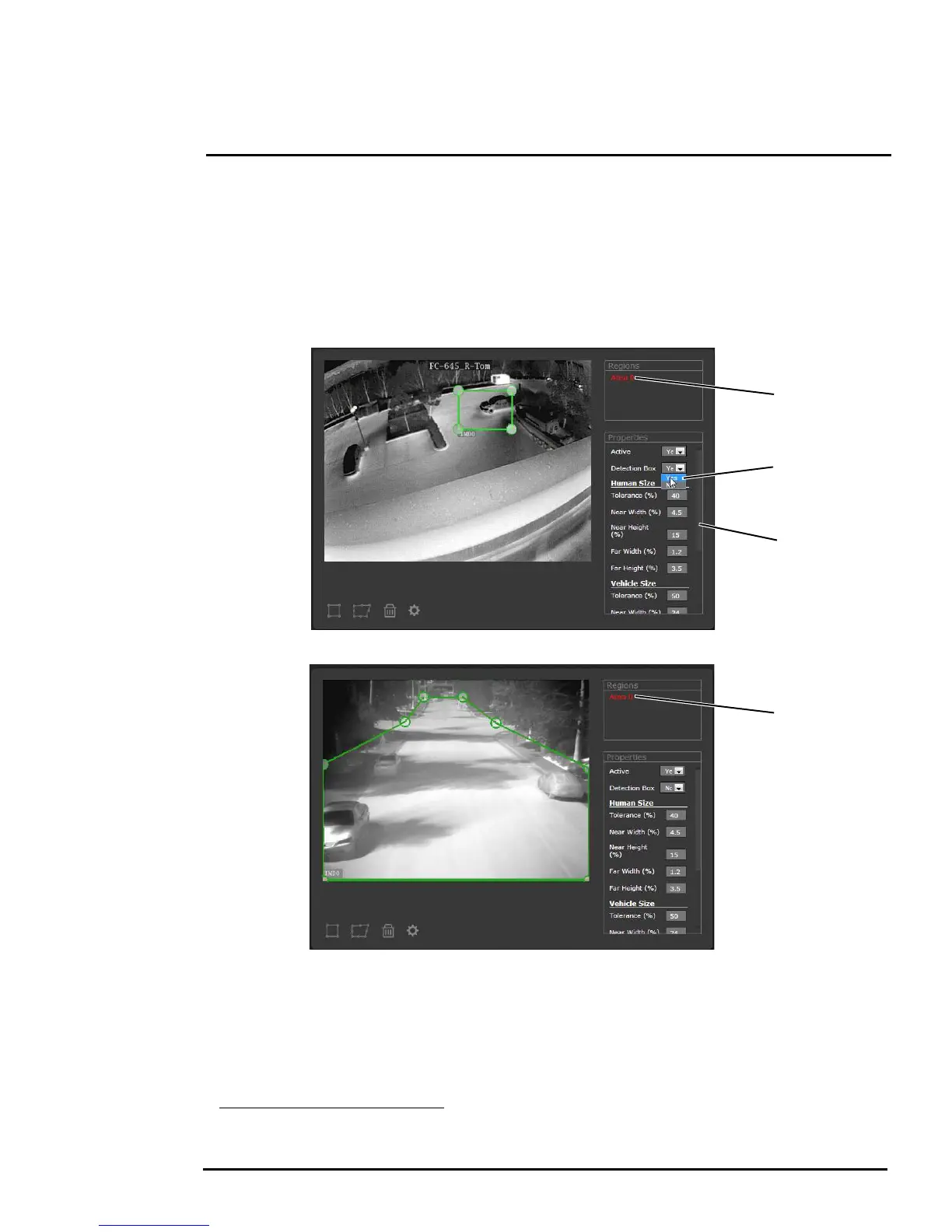

Creating Motion Detection Areas: To create a detection area, select one of the polygon icons (4 or
8 vertices
1
) and a new area will appear on the image. Drag any of the highlighted circles in the
polygon to expand and define the detection area. Then configure the parameters in the Properties
box to set the area-specific detection parameters (described in the following sections). Set Active to
Yes or No to turn on or off detection in the selected area. When configuring and testing the human and
vehicle settings, temporarily set the Detection Box parameter to Yes to display different color
bounding boxes on the image that indicate the status of the analytics (the Save button at the bottom
has to be clicked before any boxes are shown).
When Active and Detection Box are set to Yes, a moving object is indicated with a yellow, orange, or
red box surrounded by the minimum and maximum bounding boxes for a human or a vehicle, as
determined by the Properties for each area. Refer to Table 3-1 for a description of the colored boxes
when Detection Box is set to Yes.
Once the parameters are set up properly, scroll down and click the Save button.
1. With FSM, it is possible to create areas that have up to 10 vertices.
Four Corner Detection Area
Eight Corner Detection Area
Selected area
Select Yes
Scroll down
to Save
Alarm Id 0
To Next Page
