Advanced Configuration

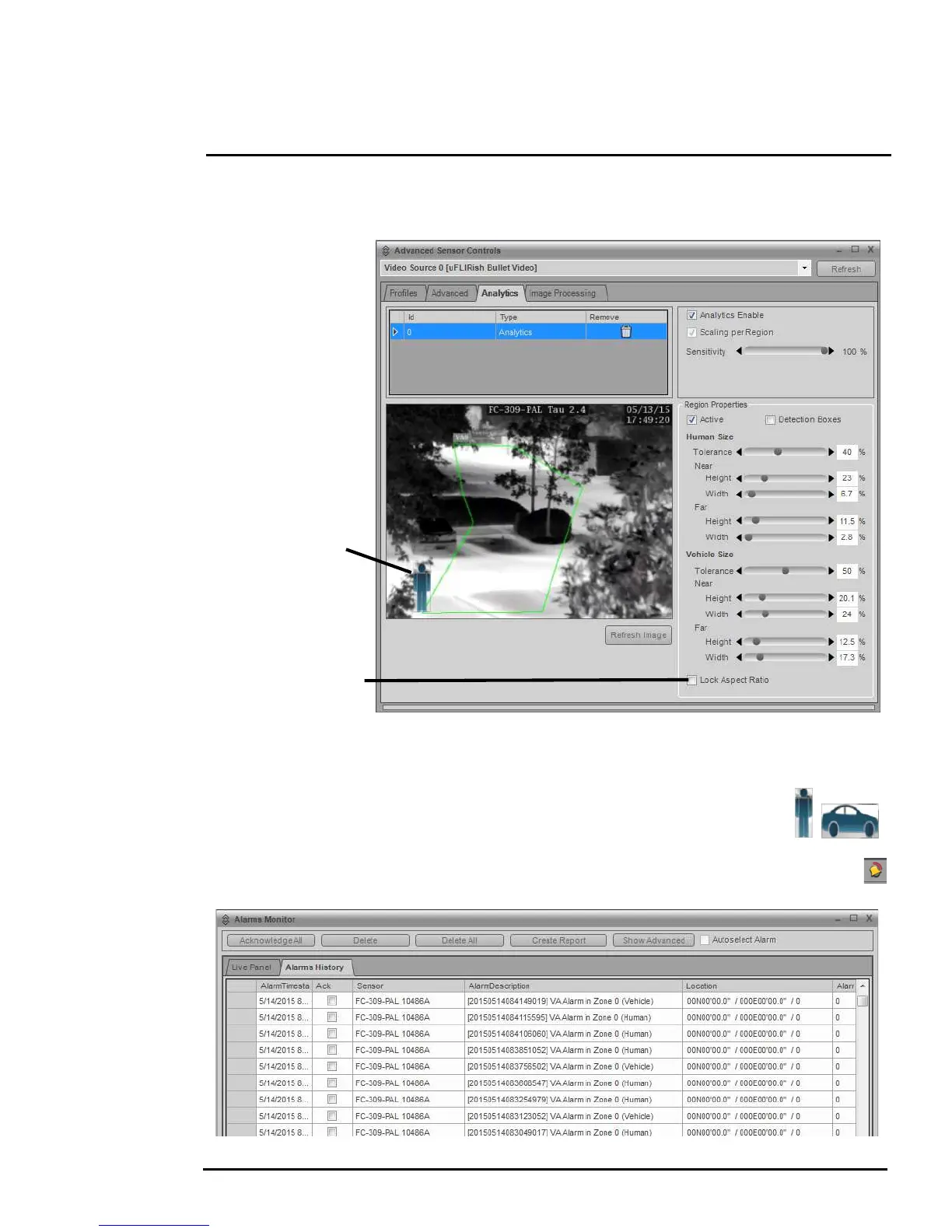

Once the area has been created, it is possible to modify the Human Size and Vehicle Size parameters
with the slider bars on the right side of the window.
To begin, select the Lock Aspect Ratio check box; that will ensure the ratio of the height and width
parameters remains consistent with the defaults.
When the Human Size Near Height or Width is clicked on, a convenient simulation of
a human or vehicle will appear on the image (at the top or bottom of the area,
depending if far or near) to assist with adjusting the size parameters.
When an alarm occurs, an indication appears in the status bar at the bottom of the FSM window.
From the Menu, select View > Alarms Monitor to see a description of alarms as they occur.
