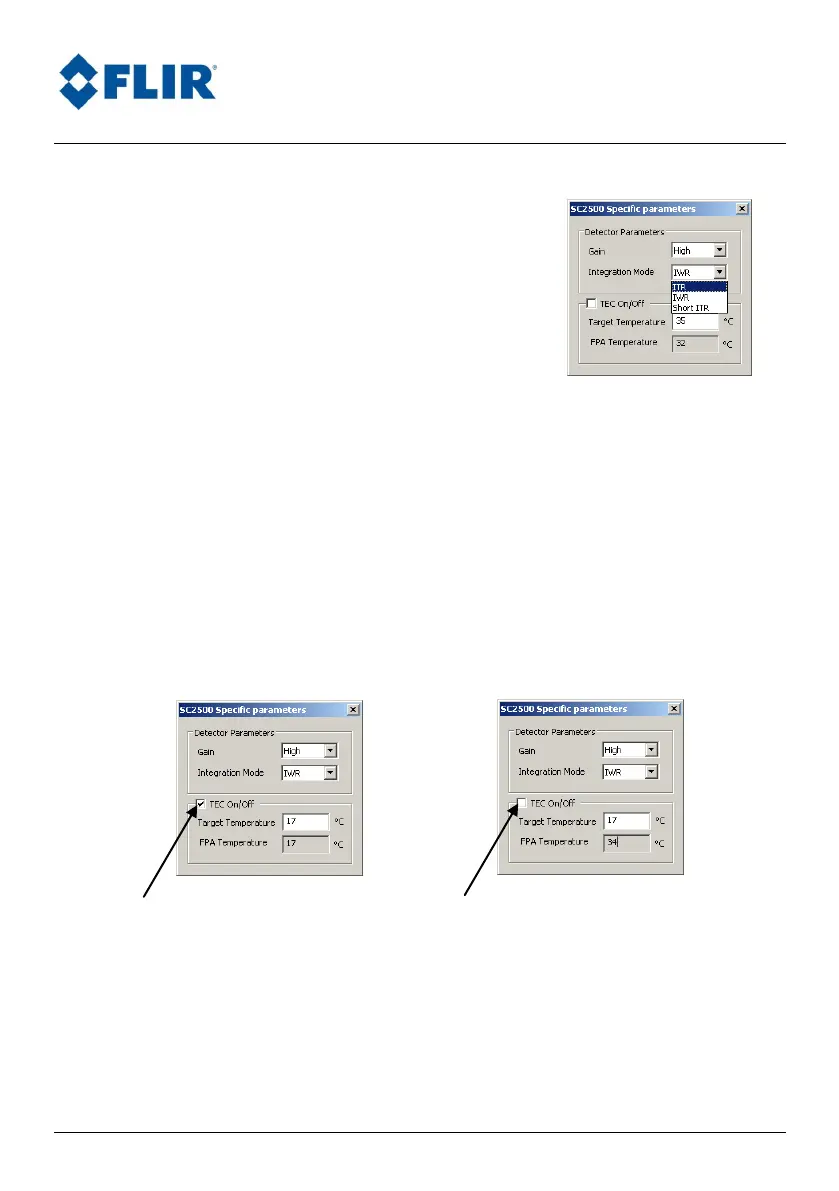

Integration modes
The SC2500 camera integration time range goes
from 400 ns up to 1 s. Standard operating mode
- ITR or IWR - can handle integration time values
from 6 µs up to 999 ms. To be able to use the
camera between 400 ns and 5 µs, you’ll have to
select the ShortITR mode.
TEC Module (Thermo-Electric Cooling Module)
The SC2500 detector’s is fitted with a TEC-1 (one stage thermo-electric
cooling module). The TEC is used to stabilize the detector when the
application requires a stabilized output vs. camera’s internal temperature
variation (high temperature thermography and general radiance
metrology).
Image quality can also be optimized by adjusting the TEC set point to the
FPA temperature at which the NUC has been done.
TEC is ON FPA Temperature
is a the user defined set point
TEC is OFF FPA Temperature is consistent
with internal camera’s temperature
