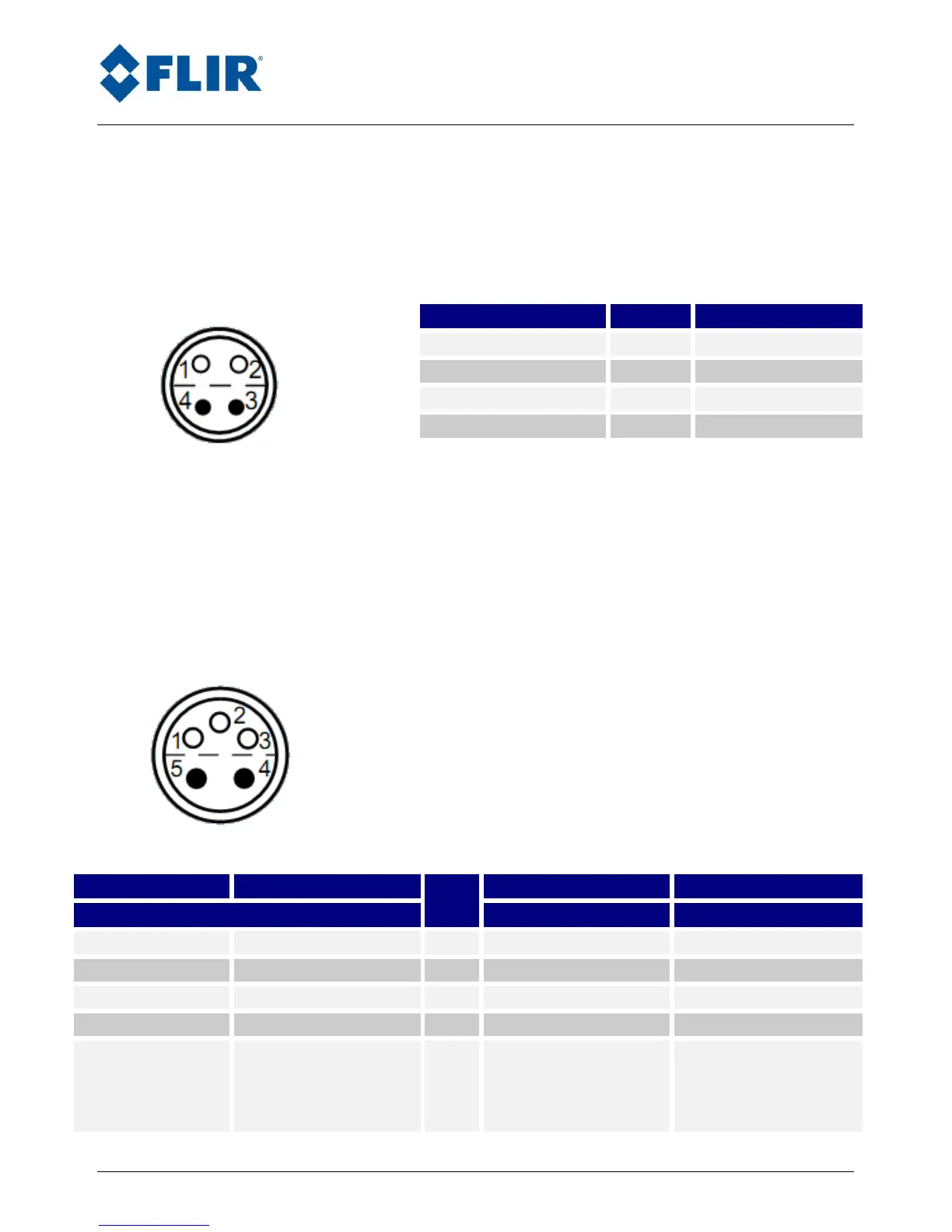

10.3.3. Trigger connector
Connector reference: LEMO ECP0S304CLN
Mating part: LEMO FFA0S304CLAC42Z
Signal Characteristic: 50 Ohms
10.3.4. Lockin connector
Connector reference: LEMO ECP1S305CLN
Mating part: LEMO FFA1S305CLAC42Z
Signal Characteristic: 10 MOhms
Signal
Pin#
characteristic
Trigger OUT
1
LVTTL – 3.3V
GND
2
Trigger IN
3
LVTTL – 3.3V
GND
4
With IRIG-B
Without IRIG-B
Pin
#
With IRIG-B
Without IRIG-B
Signal
characteristic
characteristic
Lockin
Lockin
1
0/+10V AC only
0/+10V AC only
IRIG-B
GND
2
-
-
Rand 1
Rand 1
3
-5/+5V DC + AC
-5/+5V DC + AC
GND
GND
4
-
-
N/A
Rand 2
5
-5/+5V DC + AC
3Vpp
