5. Starting with the camera
This part explains in detail all steps to be followed before using your camera for
the first time.
5.1. Mounting the camera
Ensure you that the camera is posed on a stable surface or correctly screwed
on the tripod.
5.2. Installation of the software on the computer
Software is pre installed on the computer
See software manual for installation instruction
Install frame grabber drivers, VirCAM acquisition drivers, Camera Command
software CIRRUS & Altair software.
5.3. Connecting the camera
Connect the power cable on connector with the red reference mark.
Connect numerical cable USB or cam LINK, according to your use, between the
camera and the computer.
If required connect the camera to a video monitor in order to control the
image. Use a cable BNC 75 ohms or S-video which you will connect to the
camera by using the video adapter provided with the camera (blue reference
mark)
5.4. Powering the camera
The camera is turned on by pressing the ON/OFF button for 2 seconds. The
camera will then start automatically. After a few seconds, 10s typically, the
system displays a pattern on the video output.

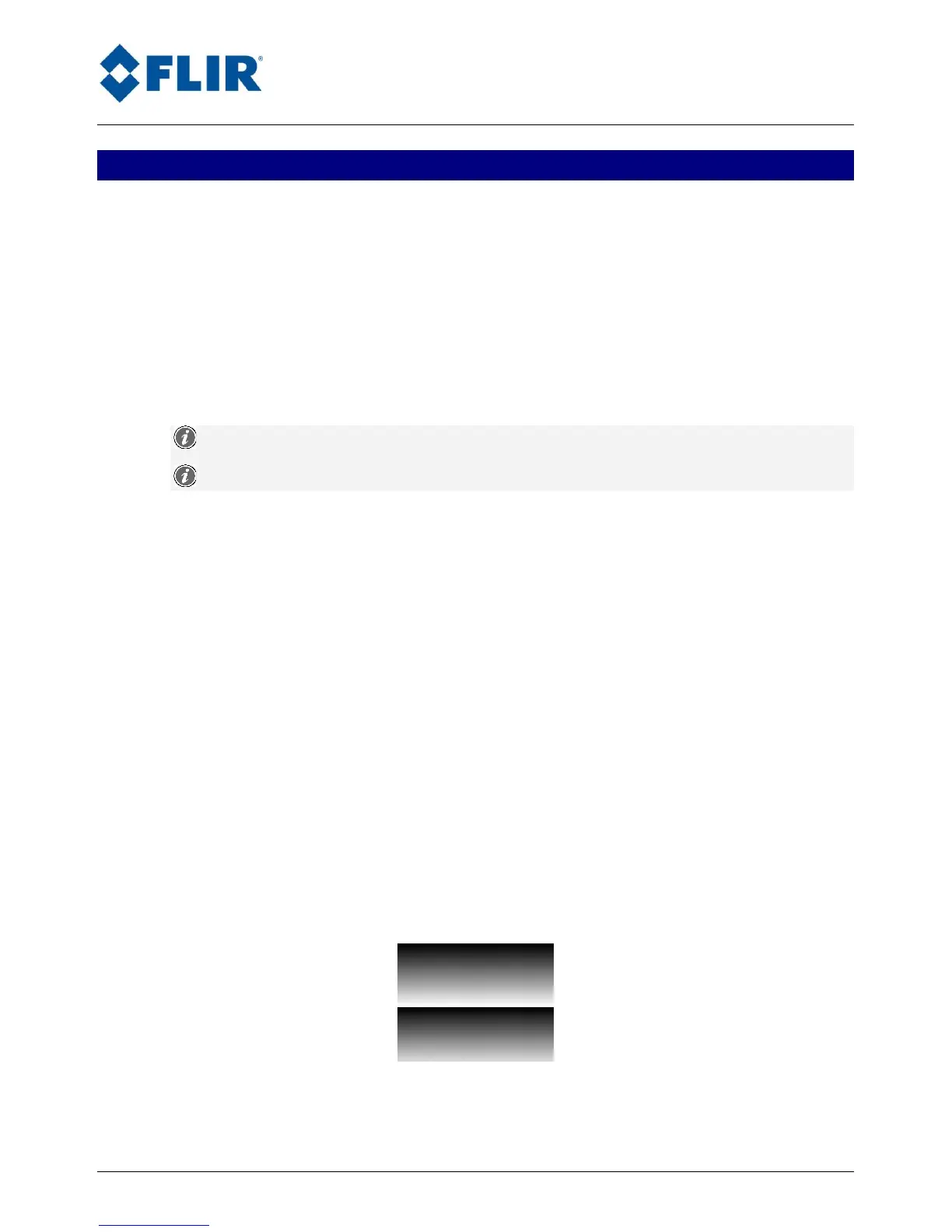

Figure 1 : Pattern
