10
IMPORTANT:
the protection plate should always remain
over the keyhole.

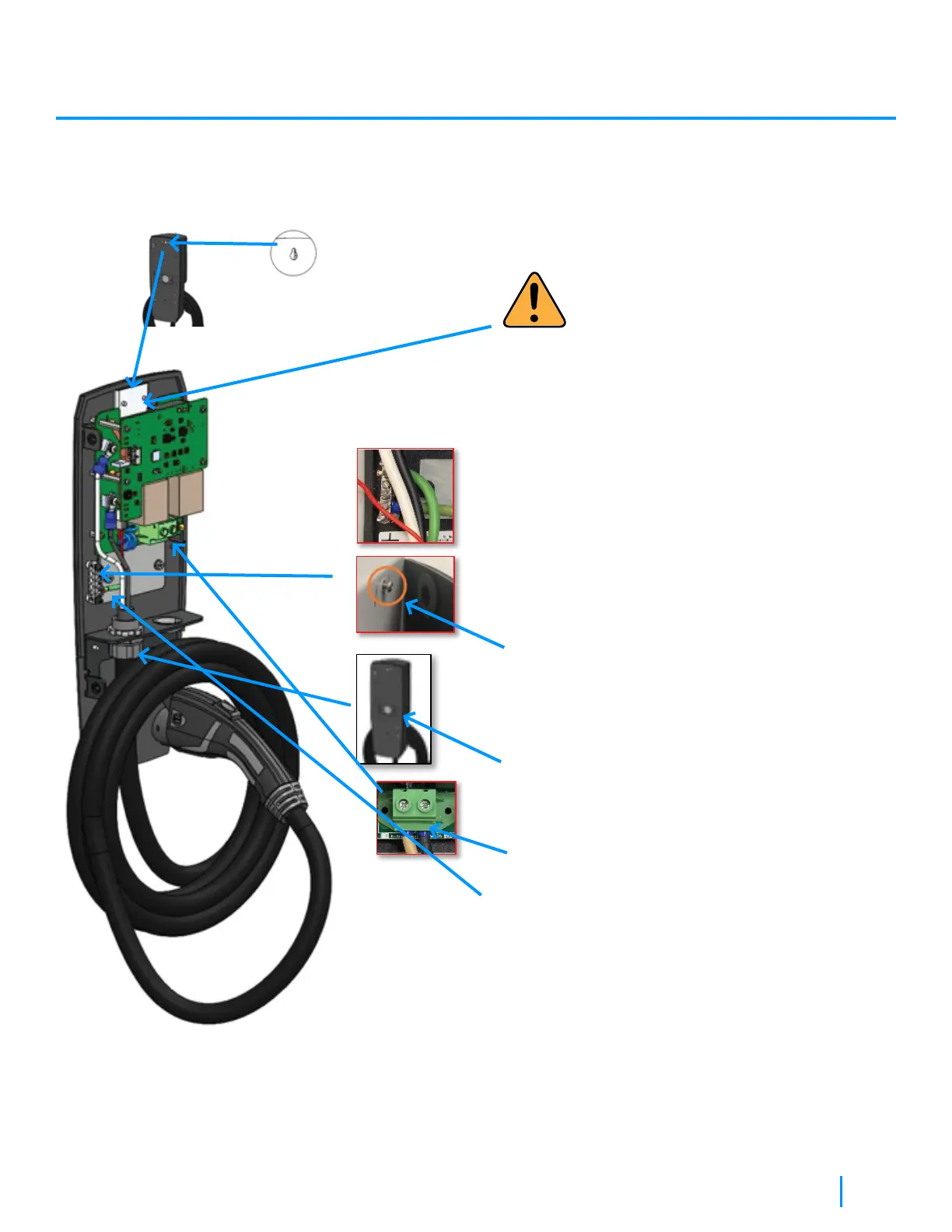

1. Remove the backplate.
2. Install the head base to align the rectangular
opening with the box opening in the wall or the
post.
3. Attach the head base to the wall or the post with
an anchoring apparatus that can withstand at least
56.7 Kg. (125 pound) per anchor point (2), in the
vertical and horizontal direction.
4. Hang the head base to the upper anchor
(previously fixed to the wall or post) via the
keyhole at the top. When doing so, ensure that
there is a ‘tight-fit’ such that there is not gap
between the gasket and the mounting wall.
5. Complete the mounting of the head base by
screwing a mounting bolt through the bottom
hole behind the illustrated cable, in the bottom
anchor point.
6. Connect two power conductors (L1 and L2) and
the ground conductor (GND).
7. The grounding conductor shall be connected to
the terminal ground.
With Electrical Box
CoRe+ Max
TM
Installation Manual
