Power Sharing
Note 1:
The electrical wiring and the associated electrical hardware used to connect in parallel the charging stations shall be
compliant to the local regulations in place.
With the embedded “Power Sharing
TM
” capability of the CoRe+ Max
TM
, up to four charging stations can be
connected in parallel to the same branch circuit.
1. The charging stations connected in parallel to a same branch circuit must be the CoRe+ Max
TM
model (the
specific model identification can be found on the unit label).
2. Without a site controller installed or in operation, or in the event of a lost communication, each CoRe+ Max
TM
limits its output to 6A.
3. To enable a dynamic sharing of current, a site controller must be installed and properly configured by AddEnergie.
4. The site controller will then ensure that available maximum current is shared optimally amongst the charging
stations (between 6A and 80A for each station), while making sure that the maximum circuit capacity (80 A in the
case of a circuit protected by a 100A breaker) is never exceeded.
5. For safety reason, each CoRe+ Max
TM
charging station will immediately interrupt an ongoing charging session
when the connected EV draws more than the amperage limit dictated at any time. To resume charging, the user
must restart the usage session process from the beginning.
6. The site controller is provided by AddEnergie as part of Global Management Service (GMS).
7. The communication between the site controller and the charging station is through a wireless meshed Zigbee
network. Refer to the communication gateway installation guide provided by AddEnergie for more details.
8. The maximum number of charging stations sharing the same 100A circuit (for a total load of 80A) is 4.

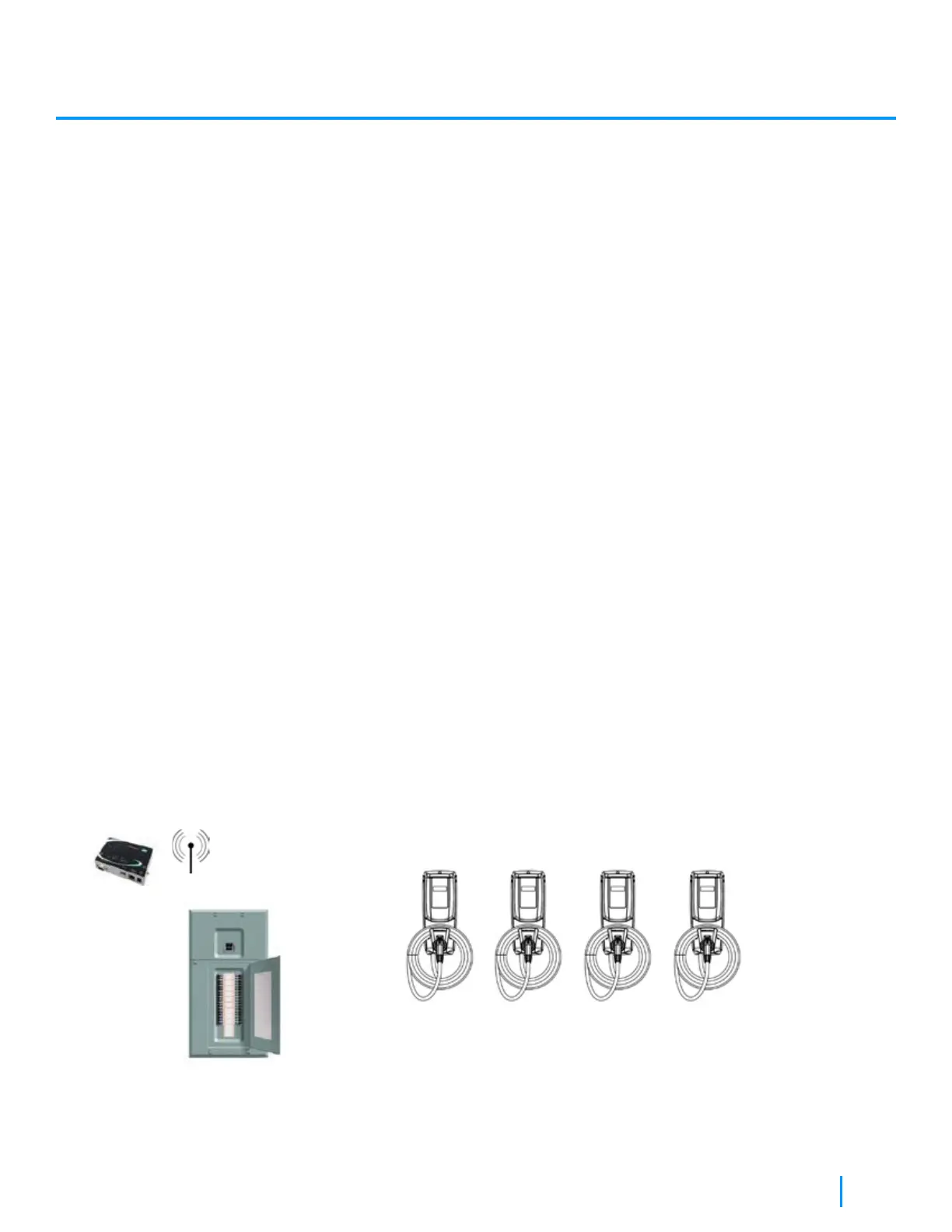

Typical Installation
CoRe+ Max
TM
Installation Manual
