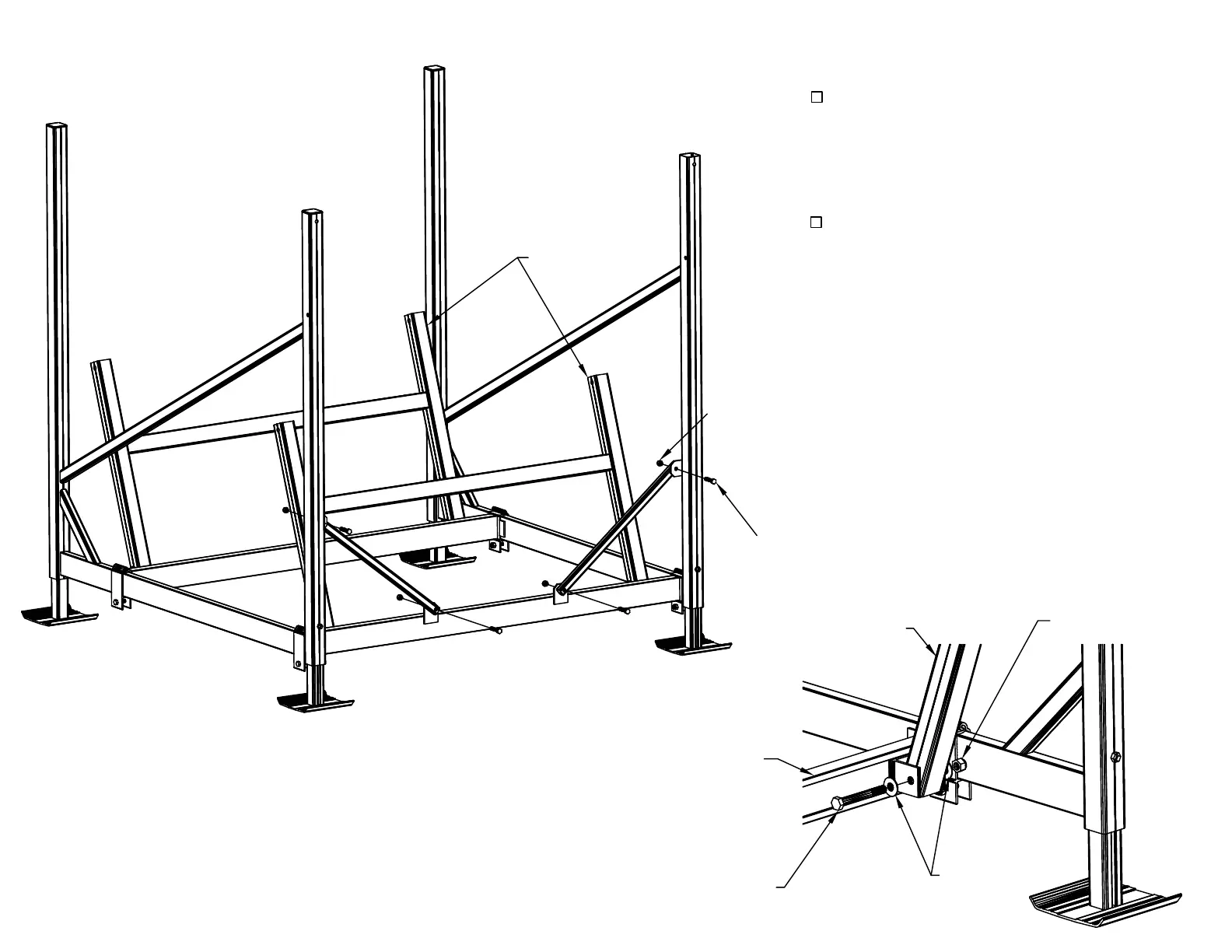

Step 2
Attach front braces to mounting
tabs using 3/8" x 1 3/4" bolts
and nylock nuts. Torque to 25 ft. lbs.
3/8" nylock nut
3/8" x 1 3/4" bolt
Pivot Arms
Rear View
1/2" x 4" bolt
1/2" washers
1/2" nylock nut
Pivot Arms
Frame Beam
Front View
Mount the pivot arms to the frame
beams using (1) 1/2" x 4" bolt, (2)
1/2" washers and (1) 1/2" nylock
nut on each clamp. (See rear
view below).
