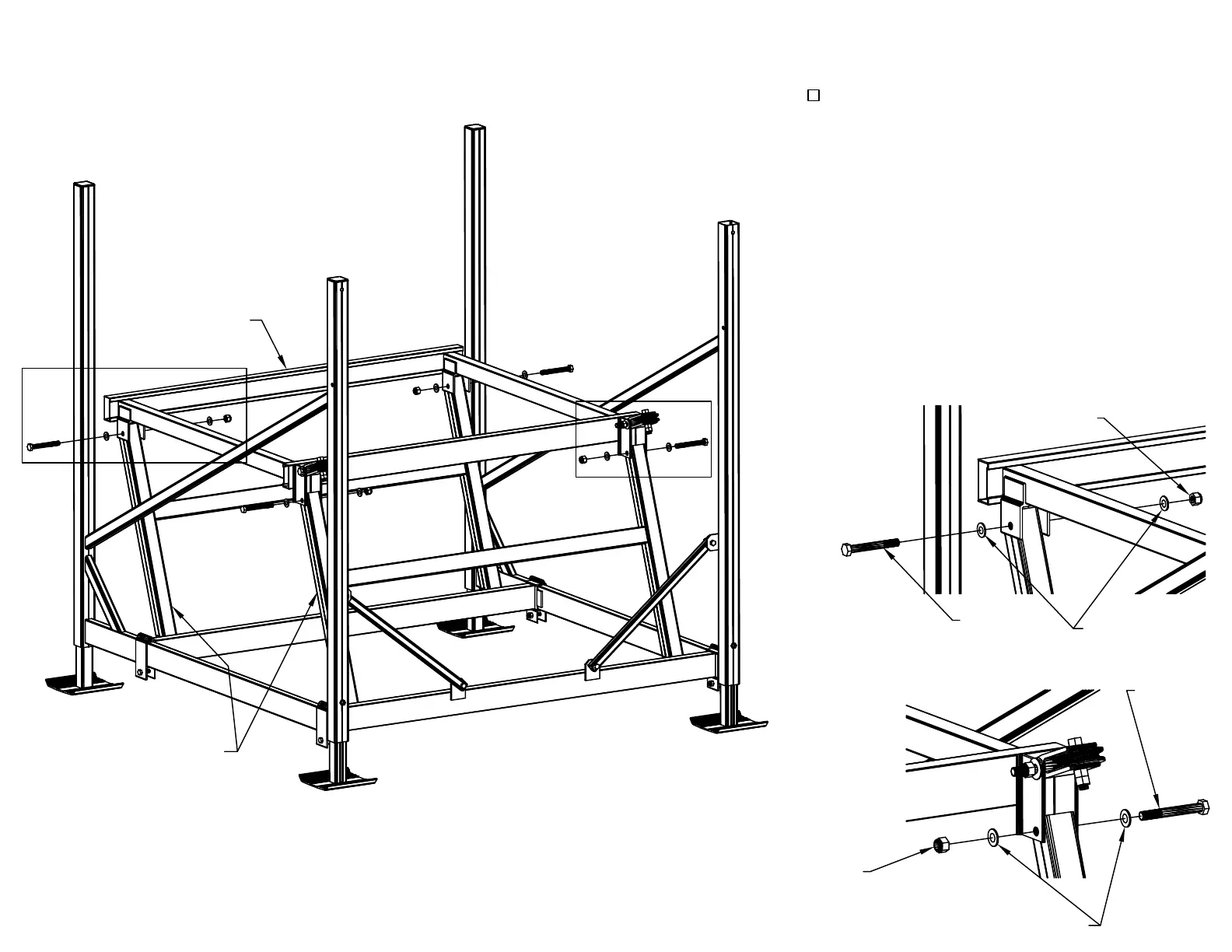

Fig. 3A
Fig. 3B
Cradle
Front/Rear Pivot Arms
Fig. 3A
1/2" nylock nut
1/2" washers
1/2" x 4" bolt
Fig. 3B
1/2" x 4" bolt
1/2" washers
1/2" nylock nut
Step 3
Sheet 6 of 8
Attach the cradle to the front and rear pivot
arms using (1) HHCS 1/2-13 x 4", (2) 1/2
washers and (1) 1/2" nylock nut on each pivot
arm.
