Floe PWC1300 - Step 3: Cradle Assembly Mounting; Place Cradle Assembly; Attach Cradle to Pivot Arms

STEP 3

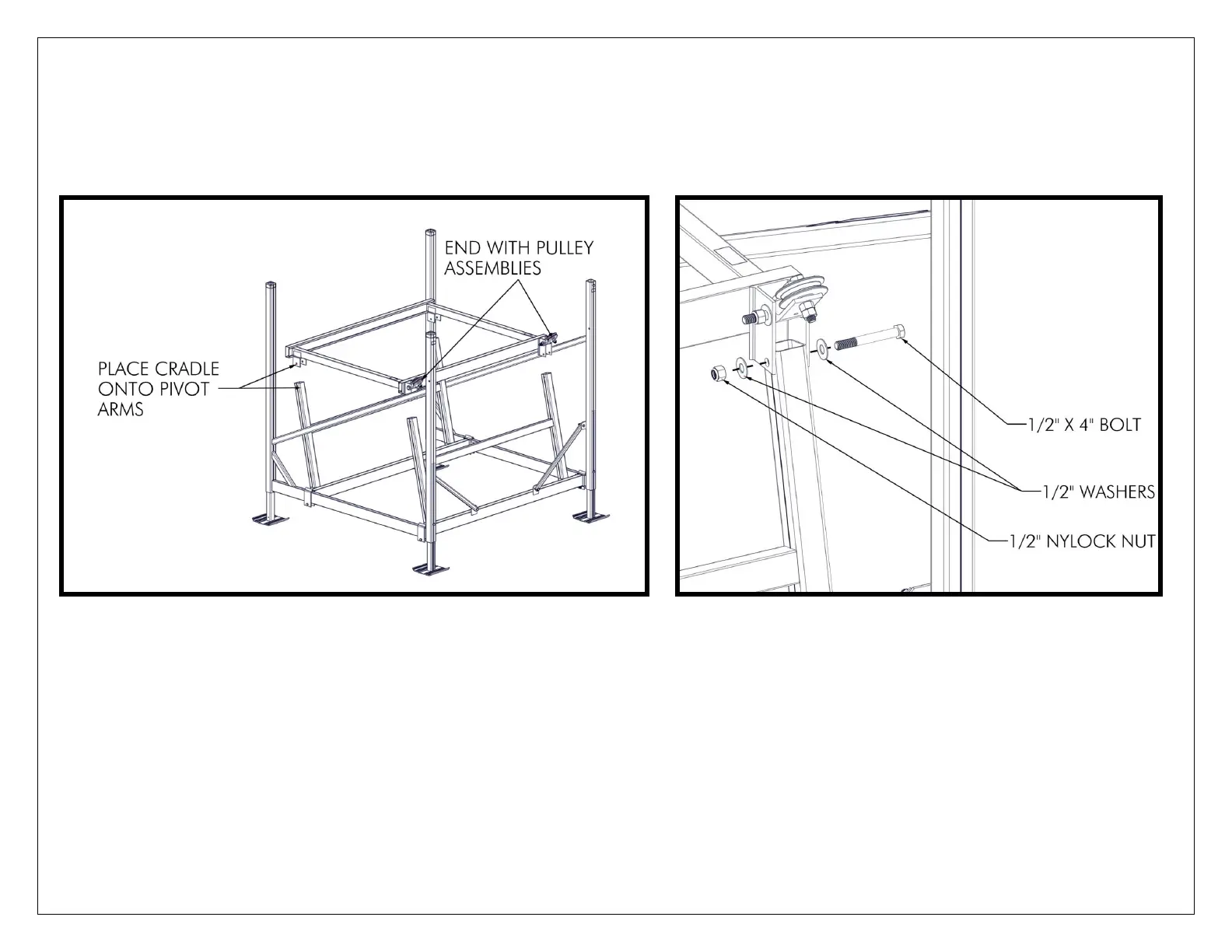

• PLACE CRADLE ASSEMBLY ONTO THE PIVOT ARMS AS SHOWN (FIGURE 3.1).
• ATTACH THE CRADLE TO THE FRONT AND REAR PIVOT ARMS USING (1) 1/2” X 4” BOLT, (2) 1/2” WASHERS,
AND (1) 1/2” NYLOCK NUT ON EACH PIVOT ARM.
DO NOT OVERTIGHTEN
(FIGURE 3.2).
FIGURE 3.1
FIGURE 3.2
4X
