Floe PWC1300 - Mount Pivot Arms

STEP 2

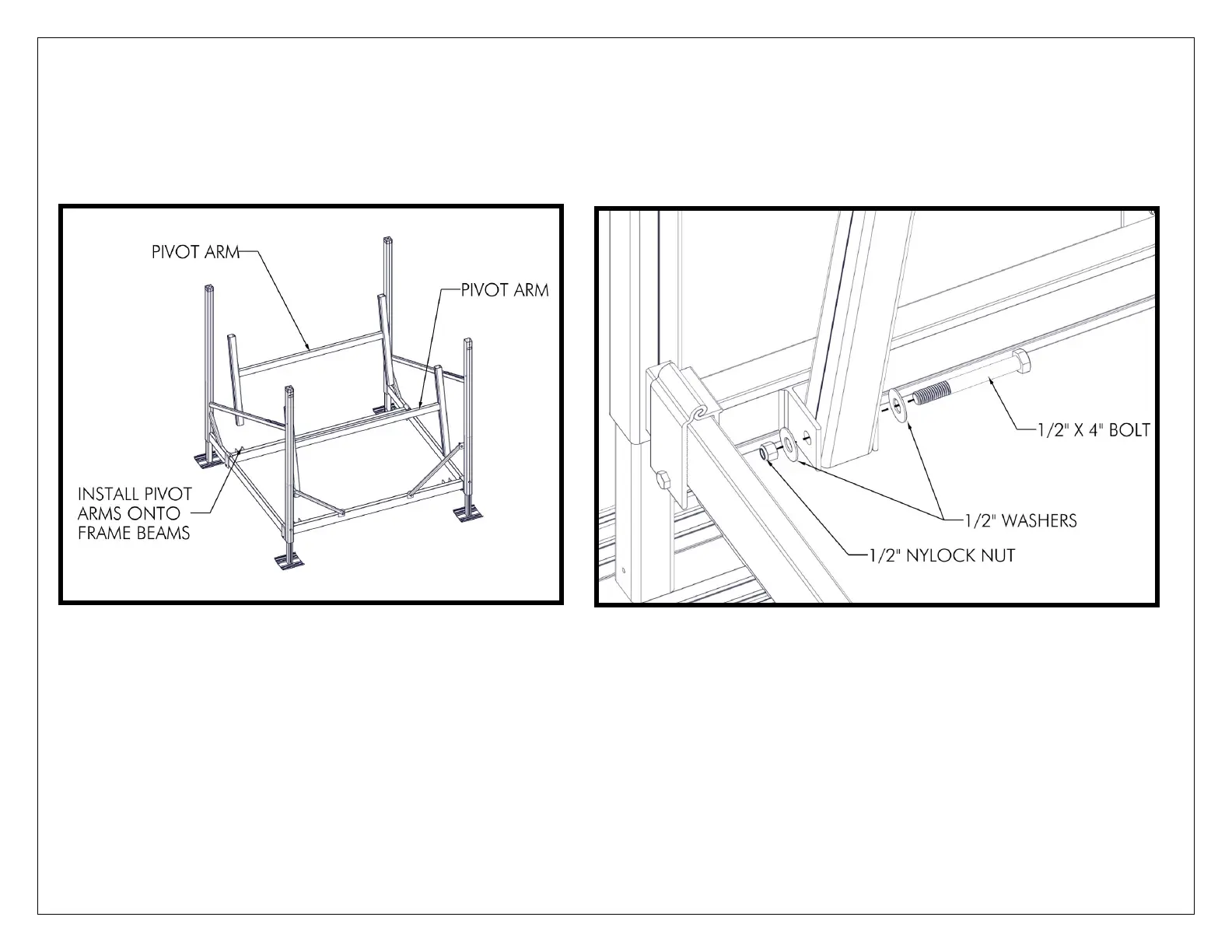

• PLACE THE PIVOT ARMS INTO THE DESIGNATED MOUNTS ON THE FRAME BEAMS AS SHOWN (FIGURE 2.3)
• MOUNT THE PIVOT ARMS TO THE FRAME BEAMS USING (1) 1/2” X 4” BOLT, (2) 1/2” WASHERS, AND (1)
1/2” NYLOCK NUT ON EACH CLAMP.
DO NOT OVERTIGHTEN
(FIGURE 2.4).
FIGURE 2.3
FIGURE 2.4
4X
