Floe PWC1300 - Step 2: Frame Braces and Pivot Arms; Attach Front Braces

STEP 2

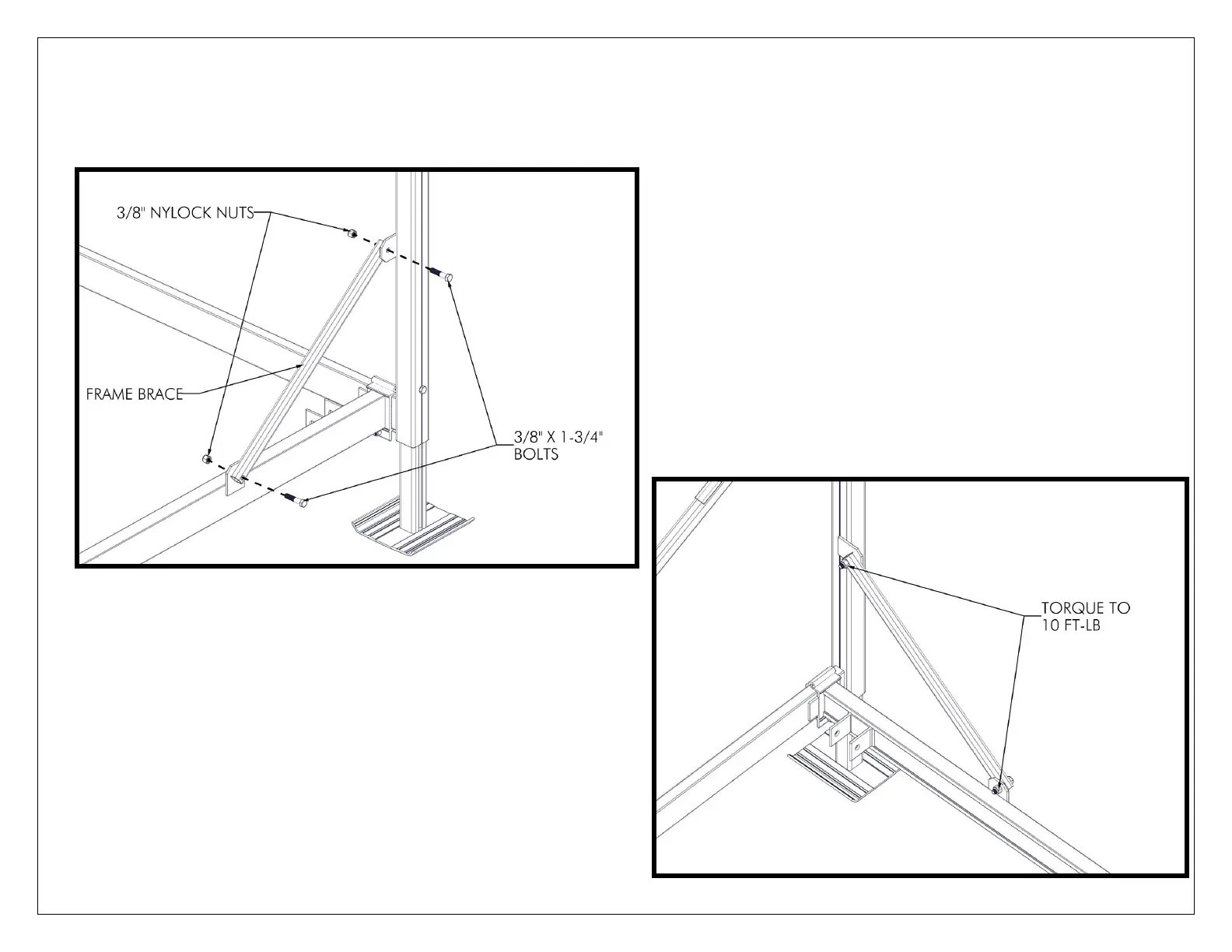

• ATTACH FRONT BRACES TO MOUNTING TABS USING (2) 3/8” X 1-3/4” BOLTS AND (2) 3/8" NYLOCK NUTS
PER BRACE (FIGURE 2.1). TORQUE TO 10 FT-LB (FIGURE 2.2).
FIGURE 2.1
FIGURE 2.2
2X
2X
