Floe PWC1300 - Prepare Winch Post Installation

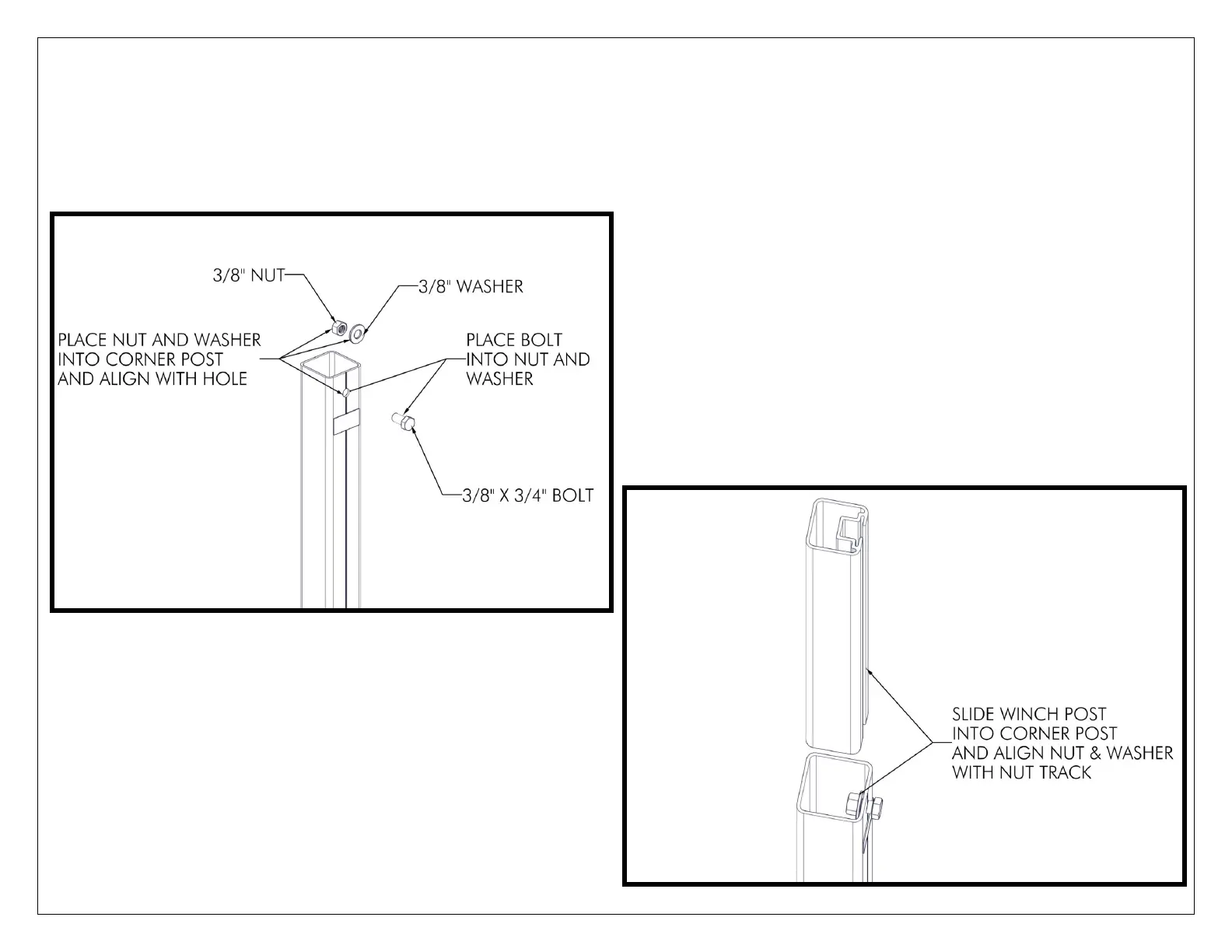

STEP 4
• PLACE THE 3/8” NUT AND A 3/8” WASHER INTO THE CORNER POST AND ALIGN THEM WITH THE HOLE,
THEN START A 3/8” X 3/4” BOLT INTO THE NUT (FIGURE 4.1).
• INSERT WINCH POST INTO THE FRONT LEG OF THE LEFT SIDE FRAME WELDMENT (FIGURE 4.2).
FIGURE 4.1
FIGURE 4.2
