Floe PWC1300 - Secure Winch Post; Install Manual Winch

STEP 4
• WHILE LEAVING 5” OF THE WINCH POST OUT OF THE TOP OF THE CORNER POST, TORQUE THE BOLT
TO 35 FT-LB (FIGURE 4.3).
• INSTALL MANUAL WINCH WITH THE CRANK SPINDLE ON THE TOP AND THE CABLE OUT THE BOTTOM
(FIGURE 4.4).

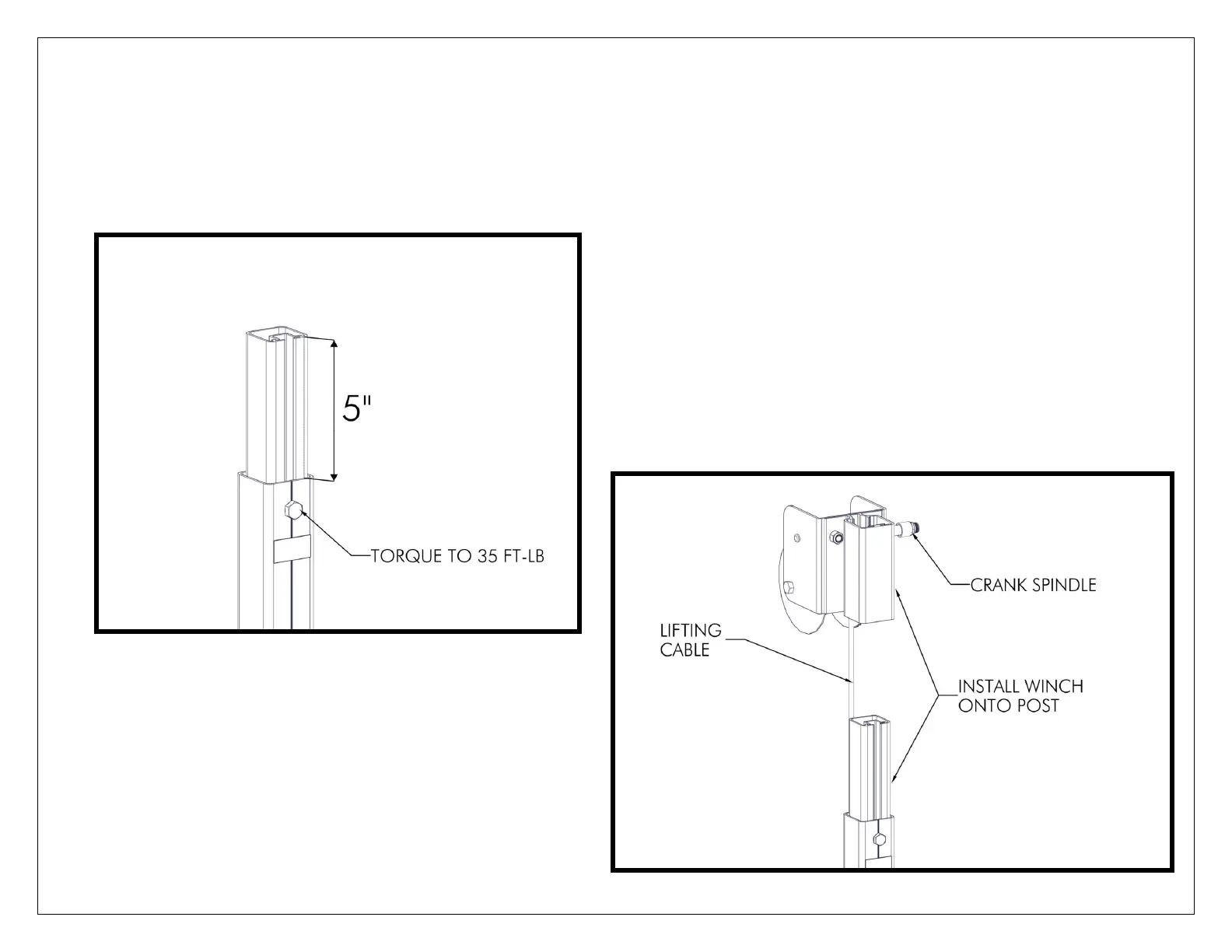

FIGURE 4.3
FIGURE 4.4
