Floe PWC1300 - Prepare Pulley Assembly for Cable

STEP 4

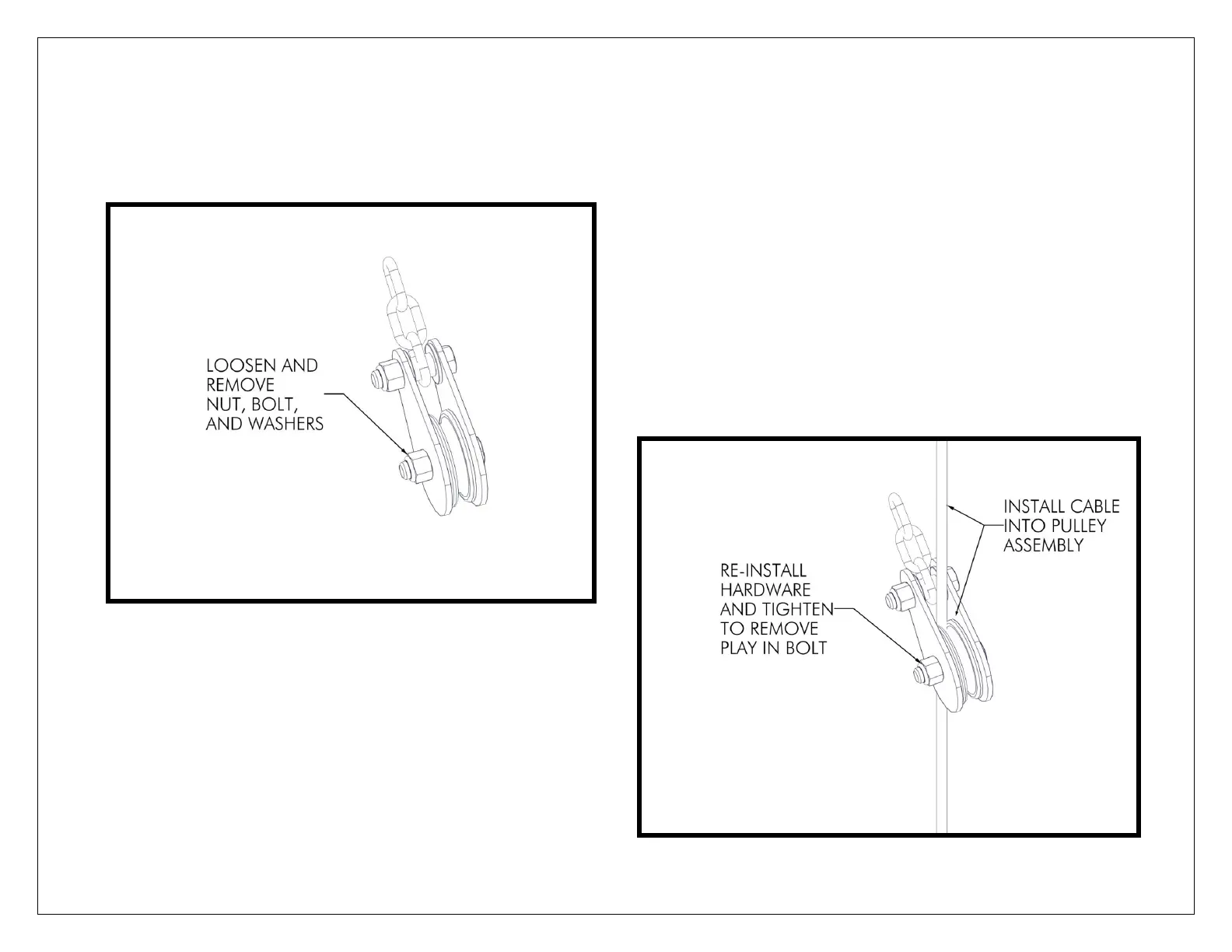

• LOOSEN AND REMOVE THE NUT, BOLT, AND WASHERS (END WITHOUT CHAIN ATTACHED) ON THE 2”
PULLEY ASSEMBLY (FIGURE 4.5). INSERT THE CABLE AND REPLACE HARDWARE. TIGHTEN TO REMOVE
EXCESS PLAY IN PULLEY (FIGURE 4.6).
FIGURE 4.5
FIGURE 4.6
