Floe PWC1300 - Attach Pulley Assembly to Frame

STEP 4

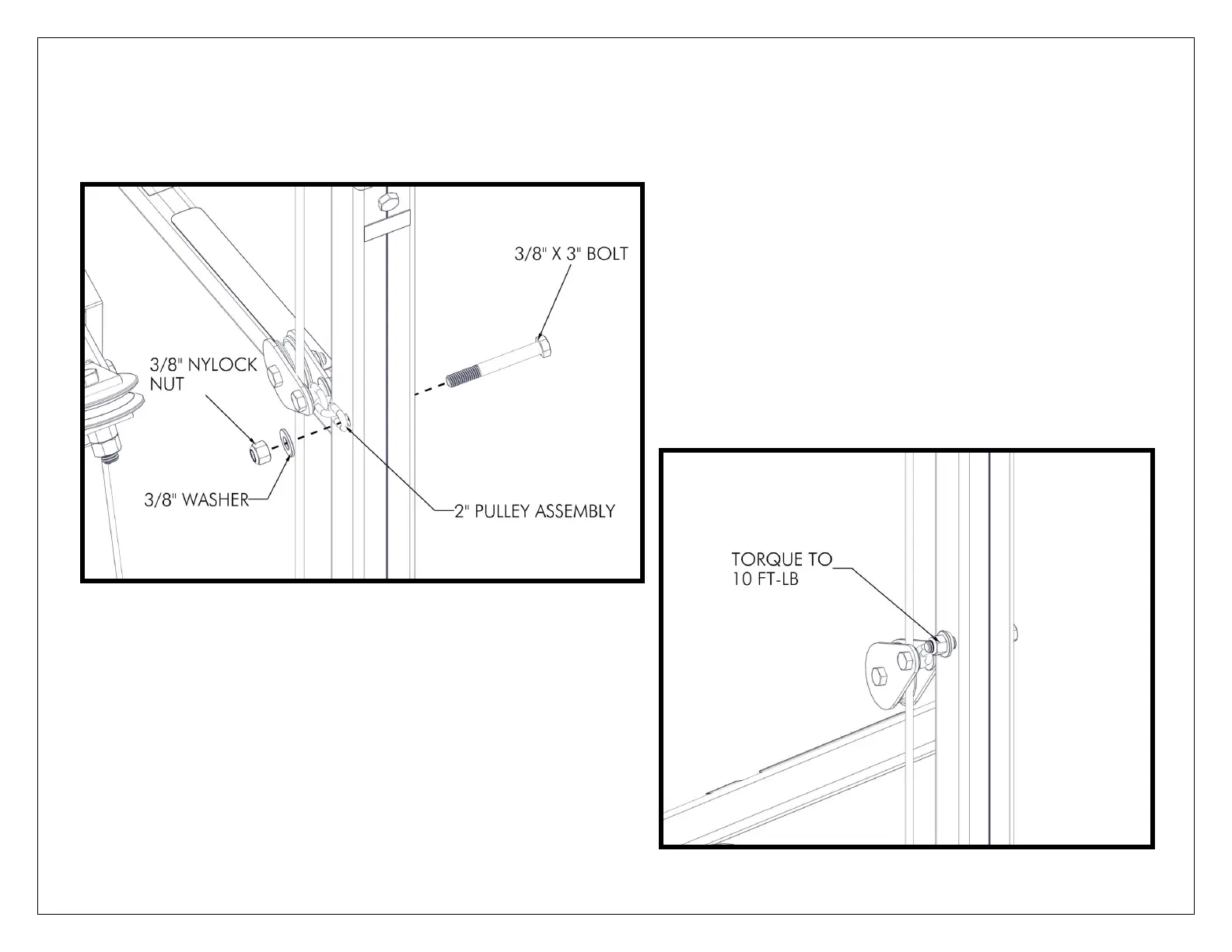

• ATTACH 2” PULLEY ASSEMBLY TO THE LEFT SIDE FRAME BEAM WELDMENT WITH (1) 3/8” X 3” BOLT, (1) 3/8”
WASHER, AND (1) 3/8” NUT (FIGURE 4.7). TORQUE TO 10 FT-LB (FIGURE 4.8).
FIGURE 4.7
FIGURE 4.8
