Floe PWC1300 - Install Cable Through Pulleys

STEP 4

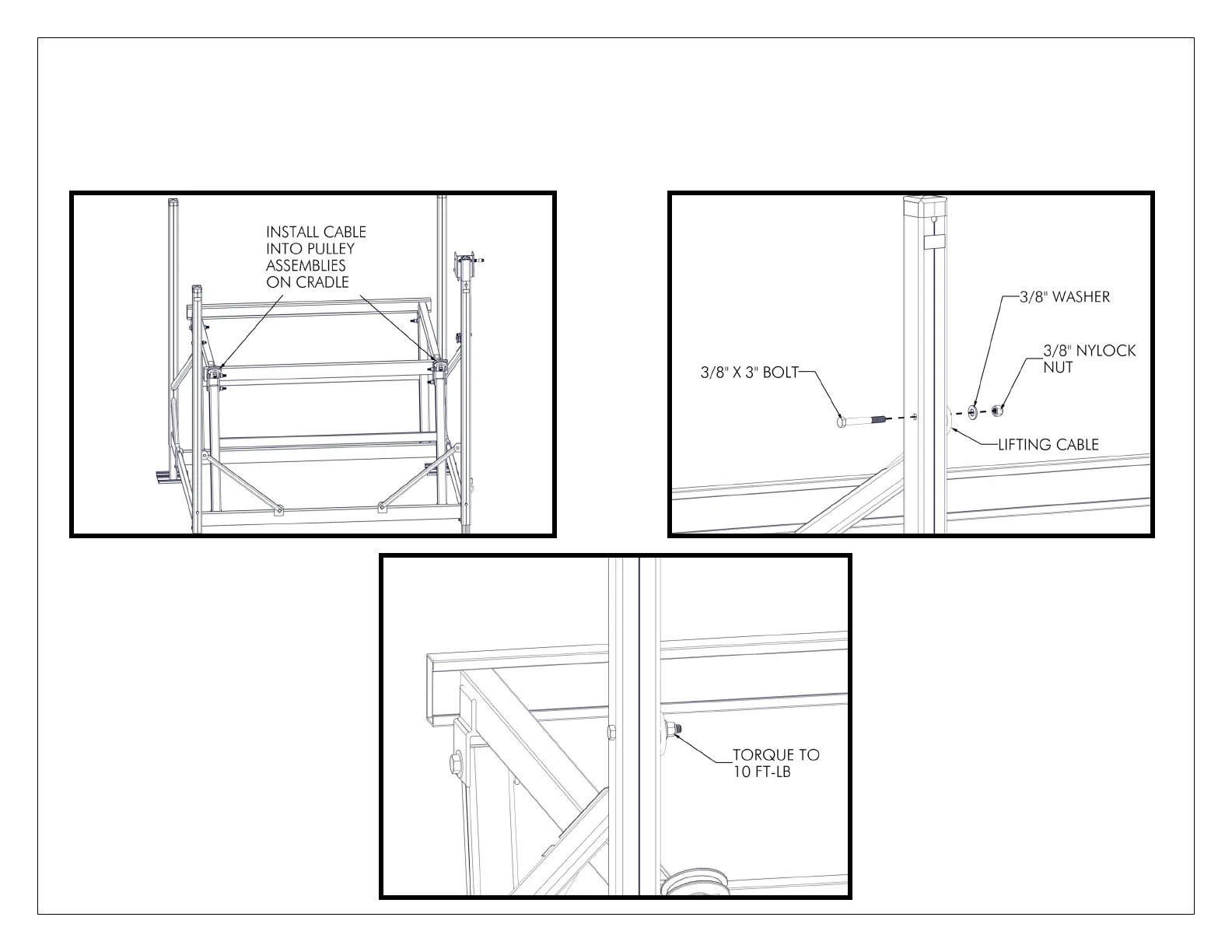

• INSTALL THE OTHER END OF THE CABLE THROUGH THE (2) 3” CRADLE PULLEY ASSEMBLIES (FIGURE 4.9).
• ATTACH THE SWEDGED END OF THE CABLE TO THE RIGHT SIDE WELDMENT WITH (1) 3/8” X 3”, (1) 3/8”
WASHER, AND (1) 3/8” NUT (FIGURE 4.10). TORQUE TO 10 FT-LB (FIGURE 4.11).
FIGURE 4.10
FIGURE 4.11
FIGURE
4.9
