Floe V2600-VSD5000 - Page 2

SHEET 2 OF 12

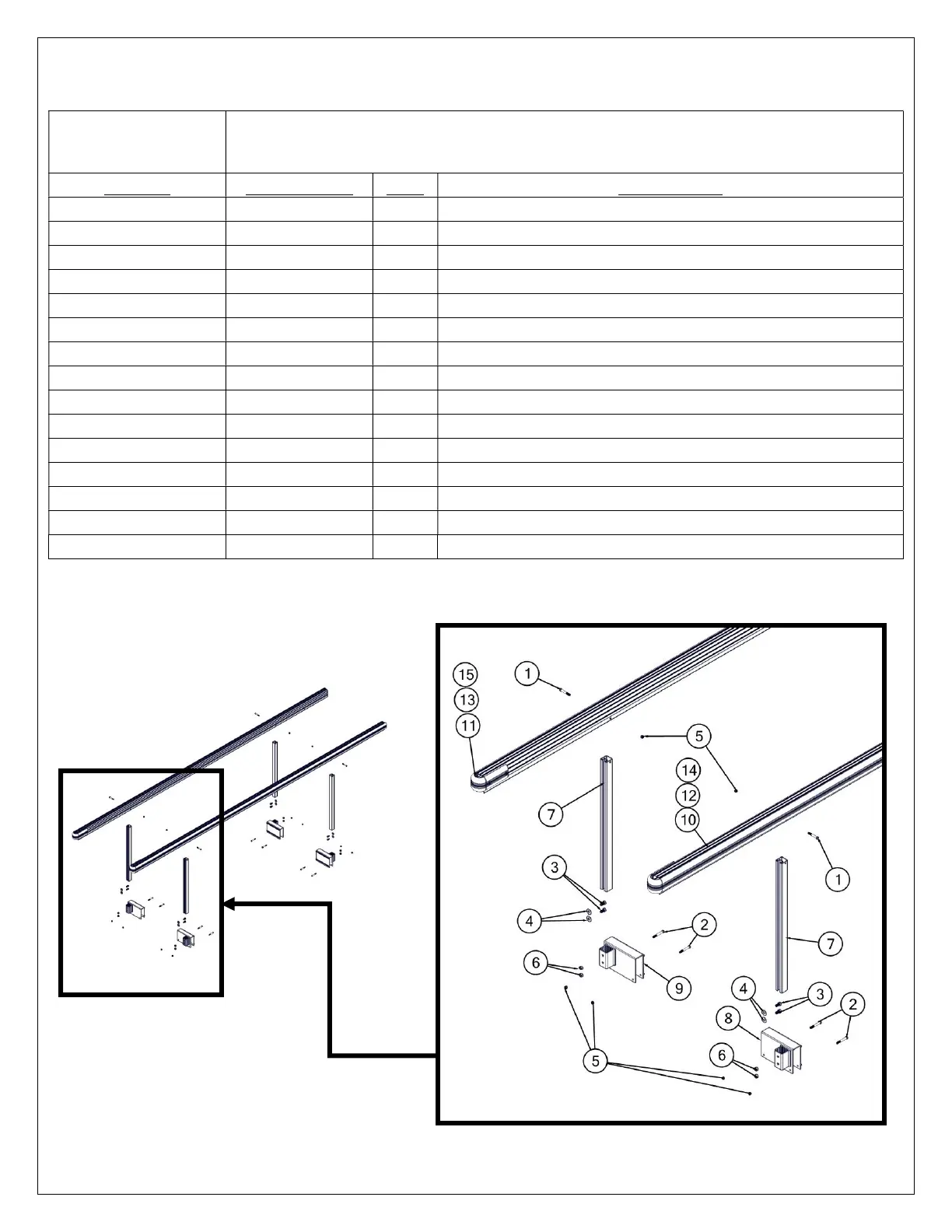

BILL OF MATERIALS
P/N
511
-
02480
-
00
P/N 511-02481-00
P/N 511-02483-00
GI/BUNK, PONTOON 16’ V3600
-
VSD5000
GI/BUNK, PONTOON 18’ V3600-VSD5000
GI/BUNK, PONTOON 20’ VSD5000
NUMBER PART NUMBER QTY. DESCRIPTION
1 001-70114-00 4 HHCS, 3/8-16 x 2 ¾” 18-8 ss
2 001-70115-00 8 HHCS, 3/8-16 x 3” 18-8 ss
3 001-70205-00 8 HHCS, ½” x 1” 18-8 ss
4 001-71022-00 8 FLAT WASHER, 1/2” SAE 18-8 ss
5 001-76349-00 12 NUT, 3/8-16 ALUM.
6 001-76350-00 8 NUT, ½-13 ALUM.
7 002-04375-00 4 TUBE, SUPPORT – PONTOON BUNK
8 111-00002-01 2 WELD’T, POCKET – CLAMP SIDE (1) 2 HOLE
9 111-00003-01 2 WELD’T, POCKET – CLAMP SIDE (2) 2 HOLE
10 111-00370-00 1 ASS’Y, BUNK – PONTOON 192” (A)
11 111-00371-00 1 ASS’Y, BUNK – PONTOON 192” (B)
12 111-00385-00 1 ASS’Y, BUNK – PONTOON 216” (A)
13 111-00386-00 1 ASS’Y, BUNK – PONTOON 216” (B)
14 111-00413-00 1 ASS’Y, BUNK – PONTOON 240” (A)
15 111-00414-00 1 ASS’Y, BUNK – PONTOON 240” (B)
EXPLODED VIEW
