SHEET 5 OF 12

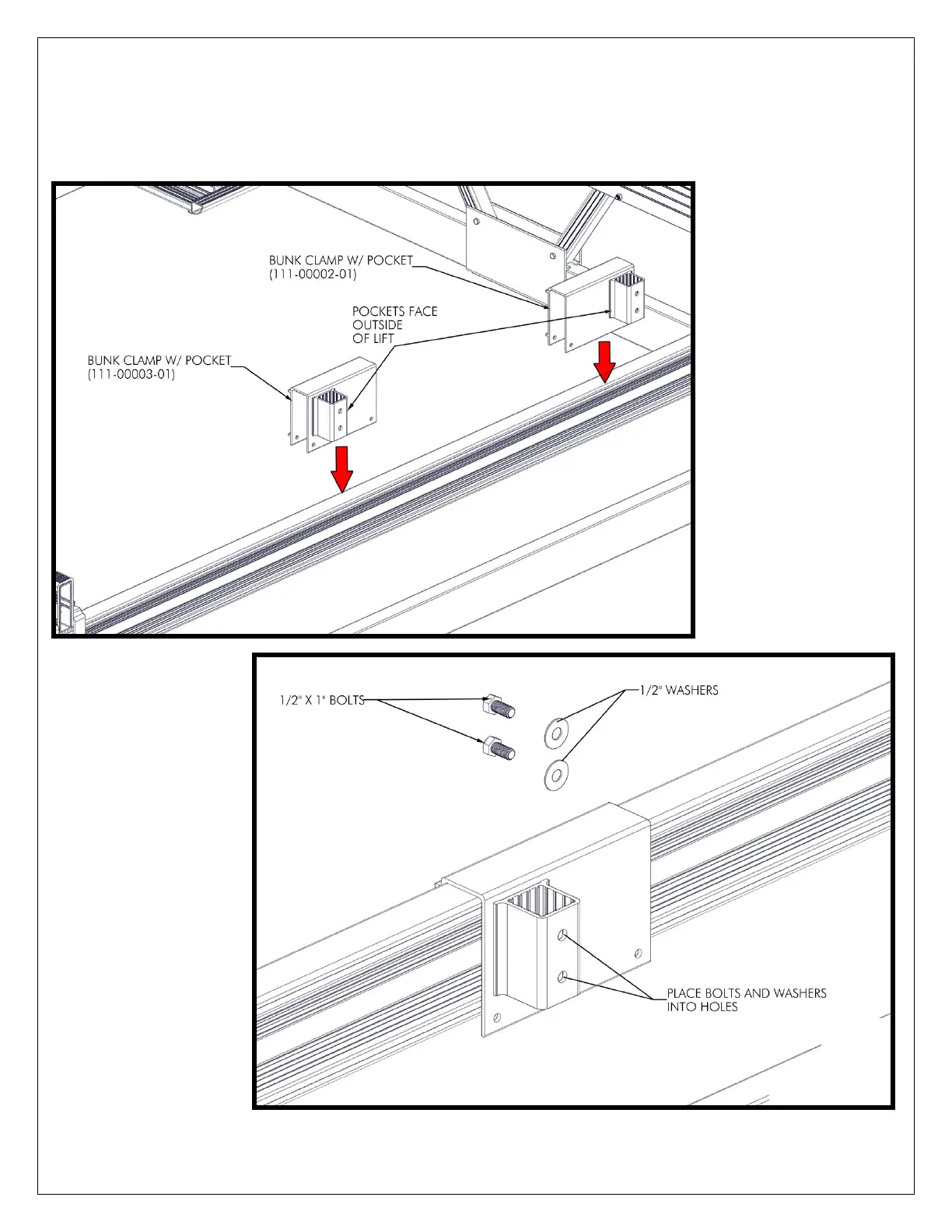

STEP 1
SLIDE CLAMPS TOGETHER (FIGURE 1.1) AND SLIDE PAIRS OVER CRADLE BEAM WITH POCKETS FACING
OUTWARDS (FIGURE 1.2). PLACE (2) 5/8” X 1” BOLTS AND (2) ½” WASHERS INTO EACH POCKET (FIGURE
1.3).
4X
FIGURE 1.1
FIGURE 1.2
4X
