Floe V2600-VSD5000 - Page 6

SHEET 6 OF 12

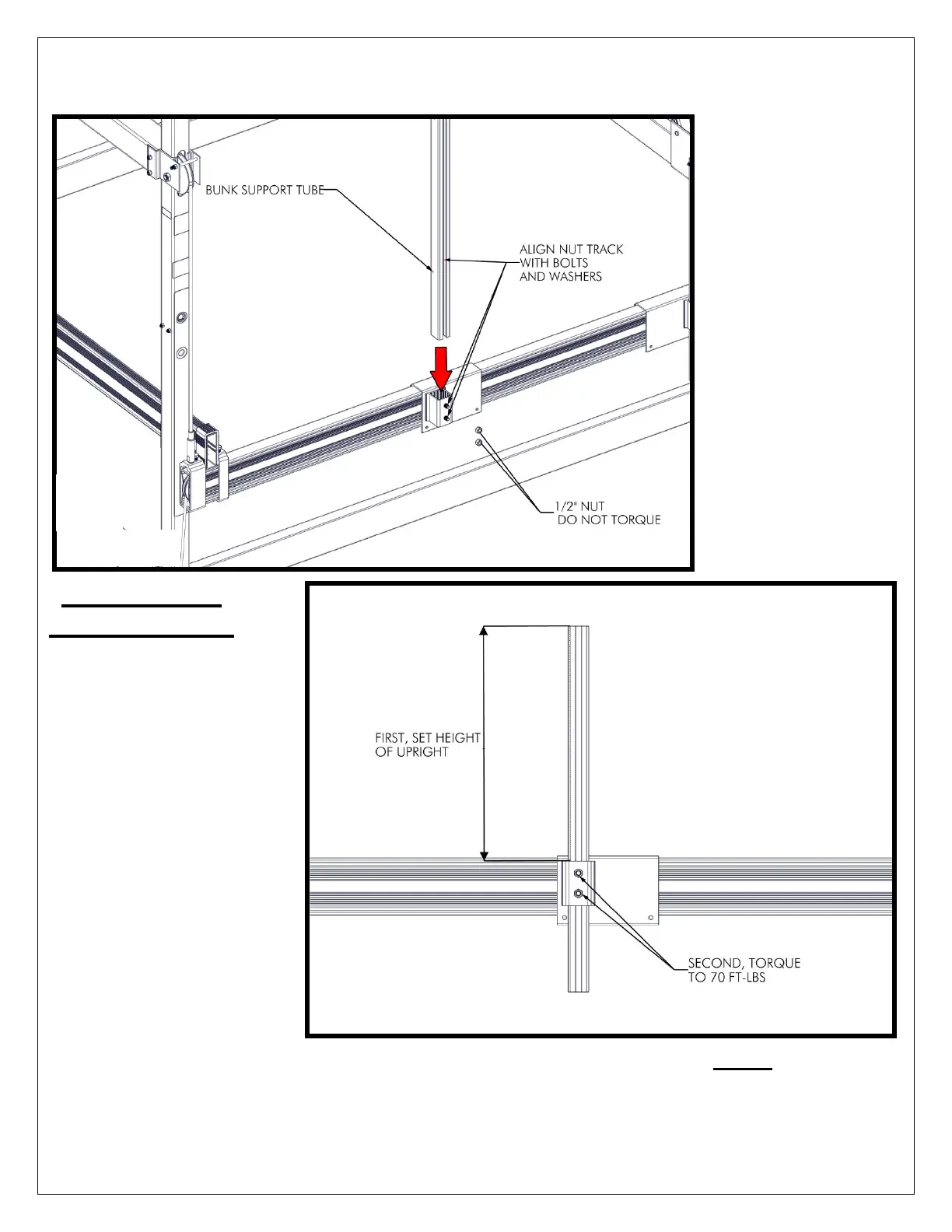

INSERT BUNK SUPPORT TUBES INTO CLAMP WELDMENTS AND ATTACH USING (2) 5/8” NUTS, HAND
TIGHT ONLY (FIGURE 1.3). ADJUST HEIGHT AND TORQUE TO 70 FT-LBS (FIGURE 1.4).
4X
4X
FIGURE 1.3
FIGURE 1.4
NOTE:
UPRIGHTS MAY HAVE TO BE
CUT TO ALLOW FULL TRAVEL
OF CRADLE ONCE FINAL
PLACEMENT IS ESTABLISHED.
BUNK/CRADLE
PAD DISCLAIMER
DUE TO THE
LARGE VARIETY
OF BOAT HULL
DESIGNS, WE
STRONGLY
RECOMMEND
THAT YOU
CONSULT WITH
YOUR BOAT’S
MANUFACTURER
TO ENSURE THAT
YOUR ARE
SUPPORTING
YOUR BOAT
PROPERLY TO
AVOID ANY
POTENTIAL
DAMAGE.
