Floe V2600-VSD5000 - Page 7

SHEET 7 OF 12
STEP 2

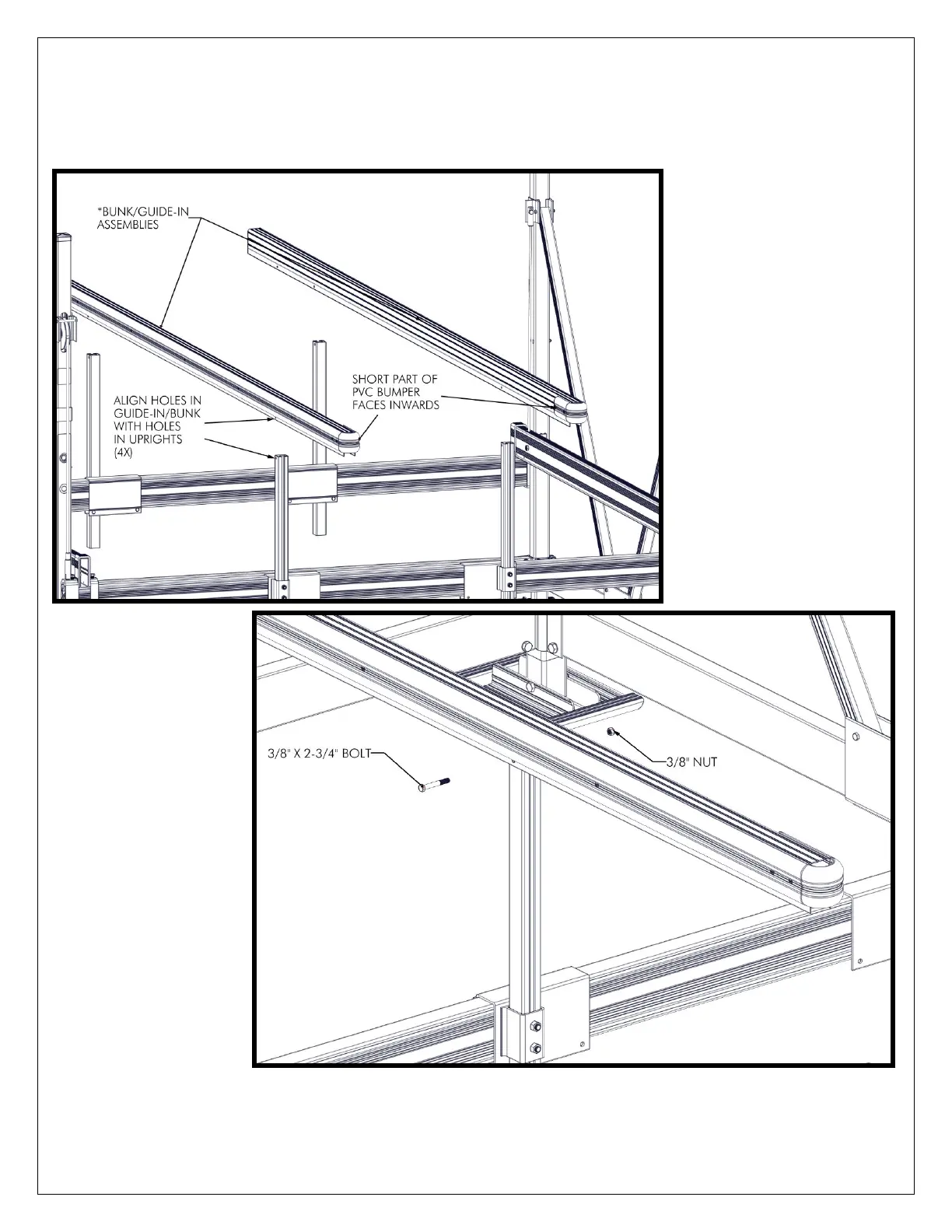

PLACE BUNKS ONTO UPRIGHTS (FIGURE 2.1) AND ATTACH USING (2) 3/8” X 3 3/4” BOLTS AND (2) 3/8”
NUTS PER BUNK (FIGURE 2.2).
FIGURE
2.1
4X
4X
FIGURE 2.2
*111
-
00370
-
00 & 111
-
00371-00 INCLUDED
WITH 511-02480-00
(16’ PONTOON
BUNKS/GUIDE-INS.
*111-00385-00 & 111-
00386-00 INCLUDED
WITH 511-02486-00
(18’ PONTOON
BUNKS/GUIDE-INS.
*111-00413-00 & 111-
00414-00 INCLUDED
WITH 511-02486-00
(20’ PONTOON
BUNKS/GUIDE-INS.
