STEP 8 (VSD 5000 AND VSD 6000-10000)
-ATTACH ACTUATORS

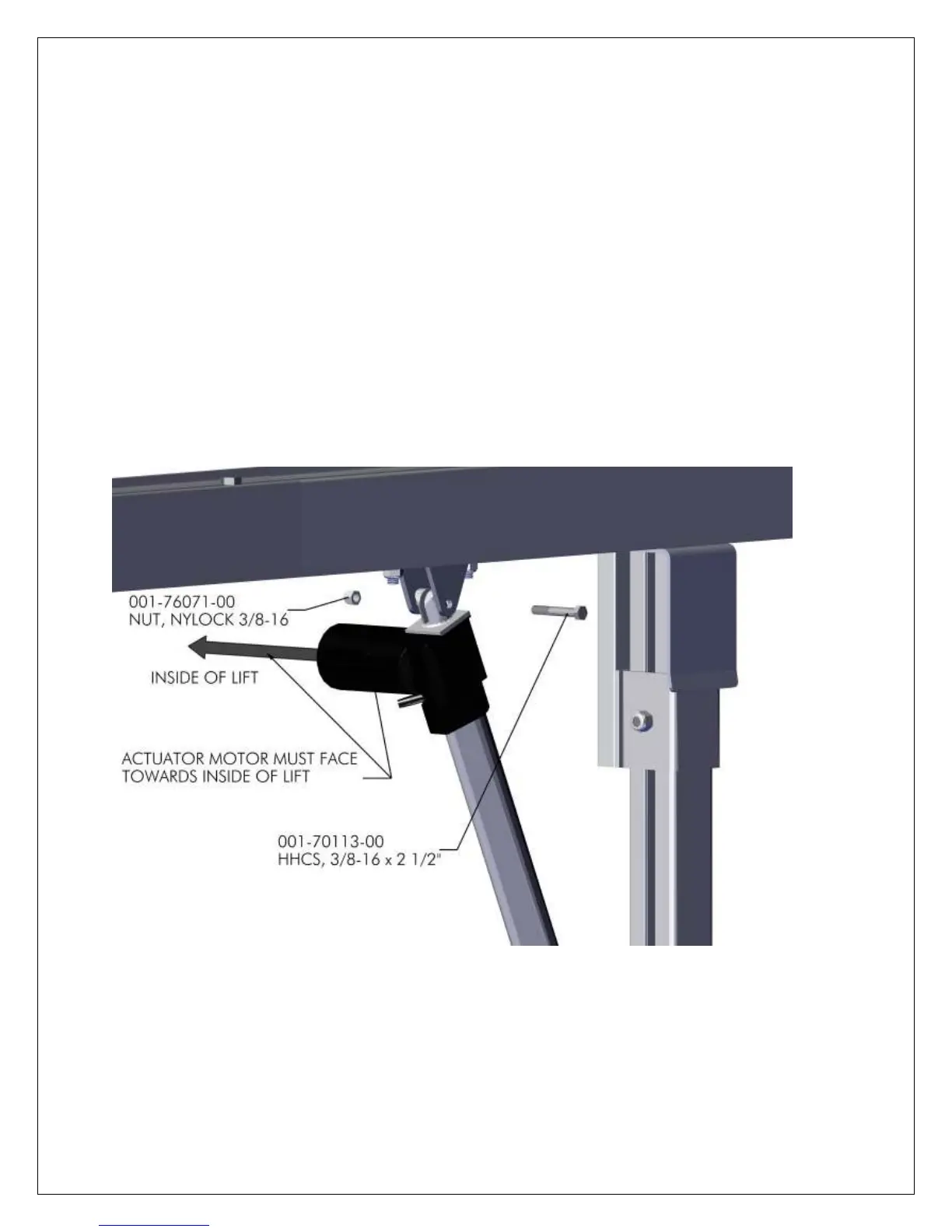

PLACE ACTUATORS INTO UPPER AND LOWER BRACKETS (FIG.1 AND FIG.2). ATTACH
USING 3/8-16 x 2 ½” BOLTS AND 3/8-16 NYLOCK NUTS (FIG.1 AND FIG. 2).
ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.
ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.
ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.
PLACE A SPACER BETWEEN THE CANOPY RAIL GUIDE AND CANOPY LEG TO ENSURE A
¼” GAP (FIG. 3).
ALIGN ACTUATOR TO DIMENSIONS SHOWN (FIG.4). TORQUE
TORQUE TORQUE
TORQUE LOWER
LOWERLOWER
LOWER NON PIVOTING
NON PIVOTINGNON PIVOTING
NON PIVOTING
BRACKET
BRACKET BRACKET
BRACKET NUTS TO 20
NUTS TO 20NUTS TO 20
NUTS TO 20 FT/LBS.
FT/LBS.FT/LBS.
FT/LBS. TIGHTEN ACTUATOR BRACKET NUTS UNTIL NYLOCK IS
TIGHTEN ACTUATOR BRACKET NUTS UNTIL NYLOCK IS TIGHTEN ACTUATOR BRACKET NUTS UNTIL NYLOCK IS
TIGHTEN ACTUATOR BRACKET NUTS UNTIL NYLOCK IS
ENGAGED
ENGAGEDENGAGED
ENGAGED.
..
.
FIG. 1
