512-65001-00 (VSD 6000-10000)
-FASTEN TILTING BRACKET (FIG. 1)
INSERT 1/2-13 x 5 1/2” BOLT, WASHERS, AND NUT INTO TILTING BRACKET.
ONLY TIGHTEN TO ENGAGE NYLOCK AND REMOVE PLAY IN BOLT. DO NOT TORQUE.
DO NOT TORQUE.DO NOT TORQUE.
DO NOT TORQUE.
-PLACE LOWER ACTUATOR BRACKETS
INSERT 3/8-16 x 5 1/2” BOLTS INTO BRACKET AND PLACE NUTS ON BOLTS (FIG. 2).
DO NOT TIGHTEN.
DO NOT TIGHTEN.DO NOT TIGHTEN.
DO NOT TIGHTEN.

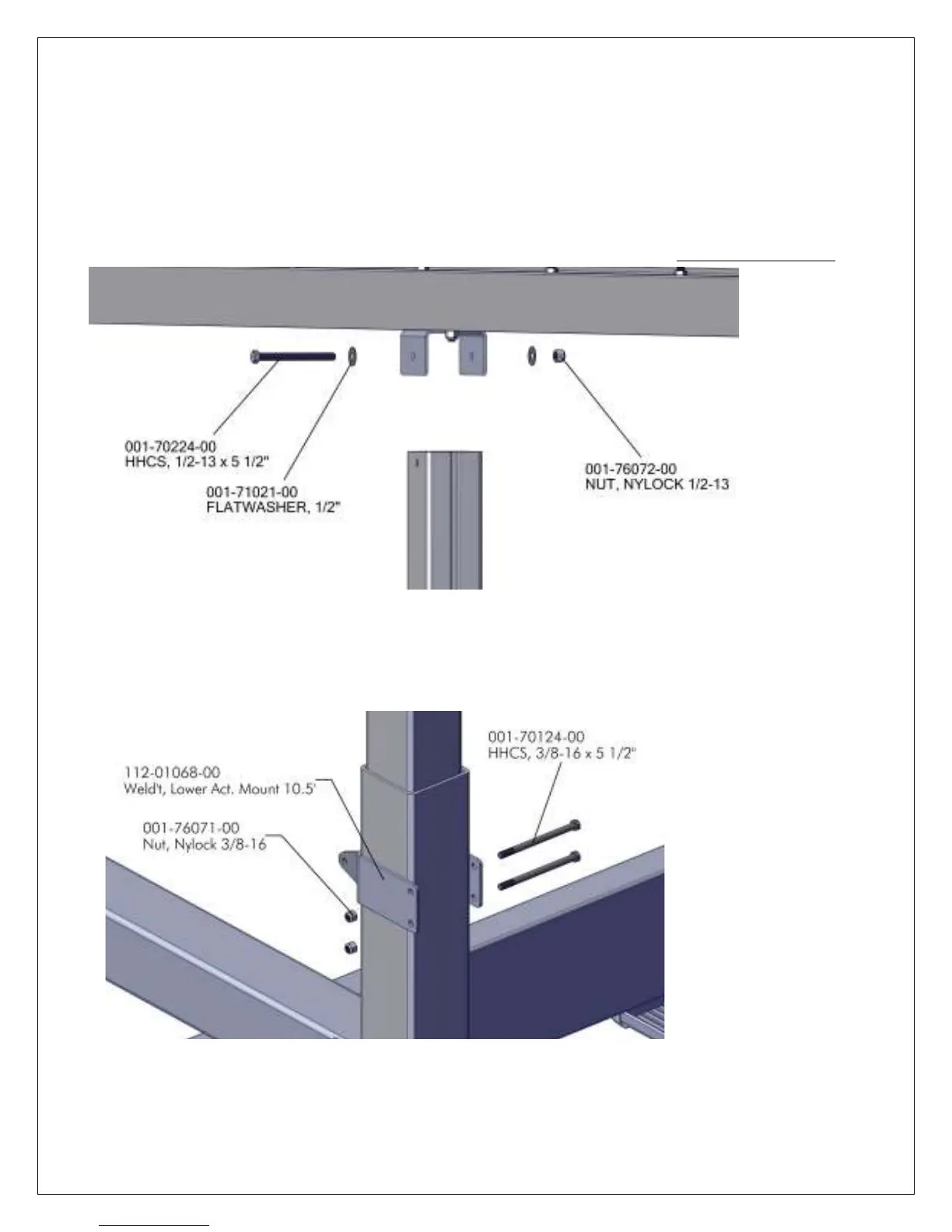

FIG. 1
FIG. 2
