STEP 2
-ATTACHING WIRING
ROUTE WIRING AS SHOWN TO PREVENT WIRING DAMAGE (FIG. 1).
THE CABLE WITH THE GREY END RUNS TO THE FAR ACTUATOR AND THE CABLE WITH
THE BLACK ENDS RUNS TO THE NEAR ACTUATOR.
BATTERY WIRE MUST RUN ALONG BALL SCREW AND ALL ACTUATOR WIRES MUST GO
OVER THE PIVOT BRACKET (FIG. 2,6).
ATTACH WIRE WITH VELCRO ALONG CANOPY HOOPS (FIG. 3-5).
EACH SIDE SHOULD HAVE ATTACH POINTS ON 4 HOOPS.
CANOPY HOOP CLOSEST TO CORNER POST WITH PIVOT SHOULD HAVE 12 ATTACH
POINTS.
WRAP EXCESS CORD NEAR ACTUATOR AND ALLOW FOR 2 INCHES
2 INCHES2 INCHES
2 INCHES OF SLACK (FIG. 7).

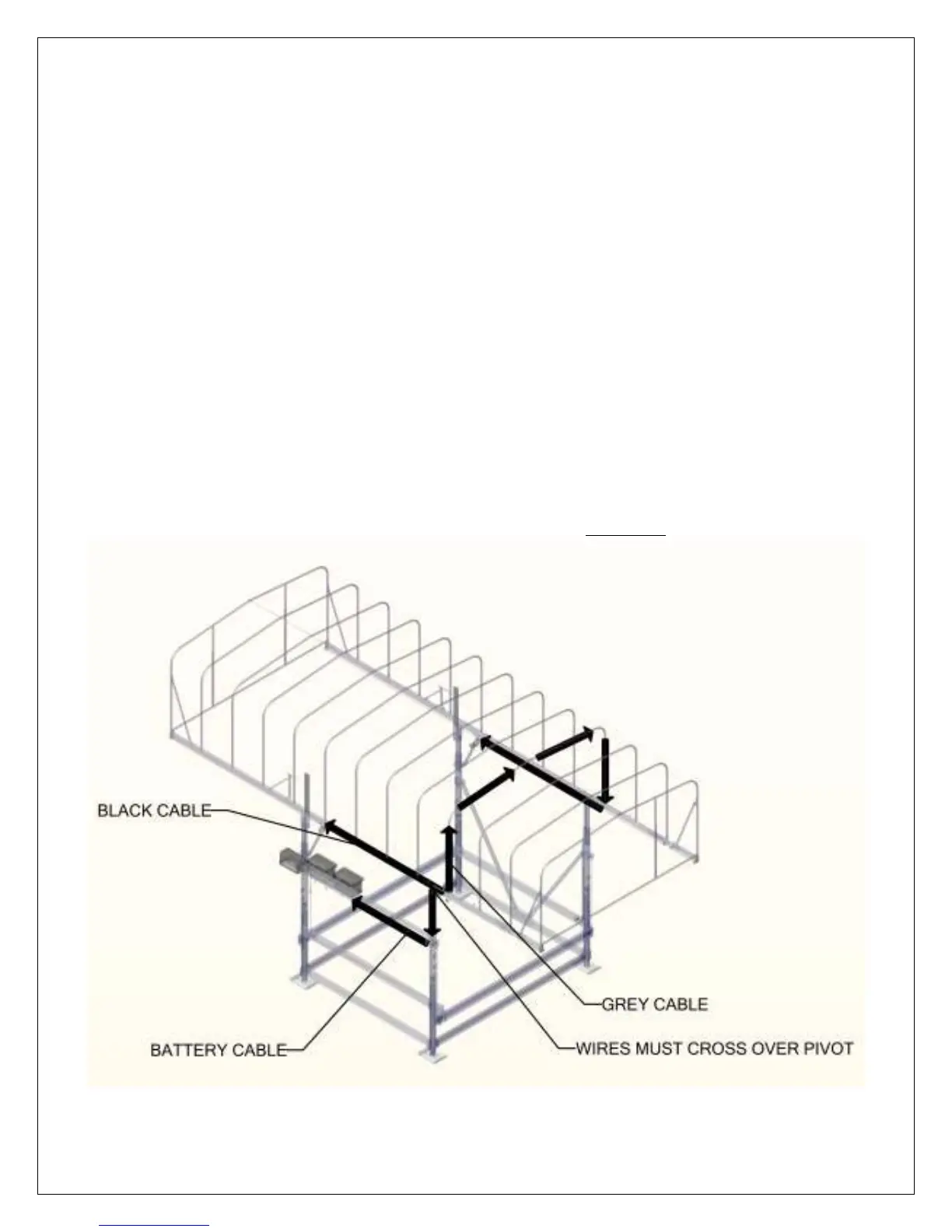

FIG. 1
