INSTALLATION
ALTERNATE CONFIGURATION WIRING
VSD 5000 AND VSD 6-10000
STEP 1
-ACTUATOR WIRING

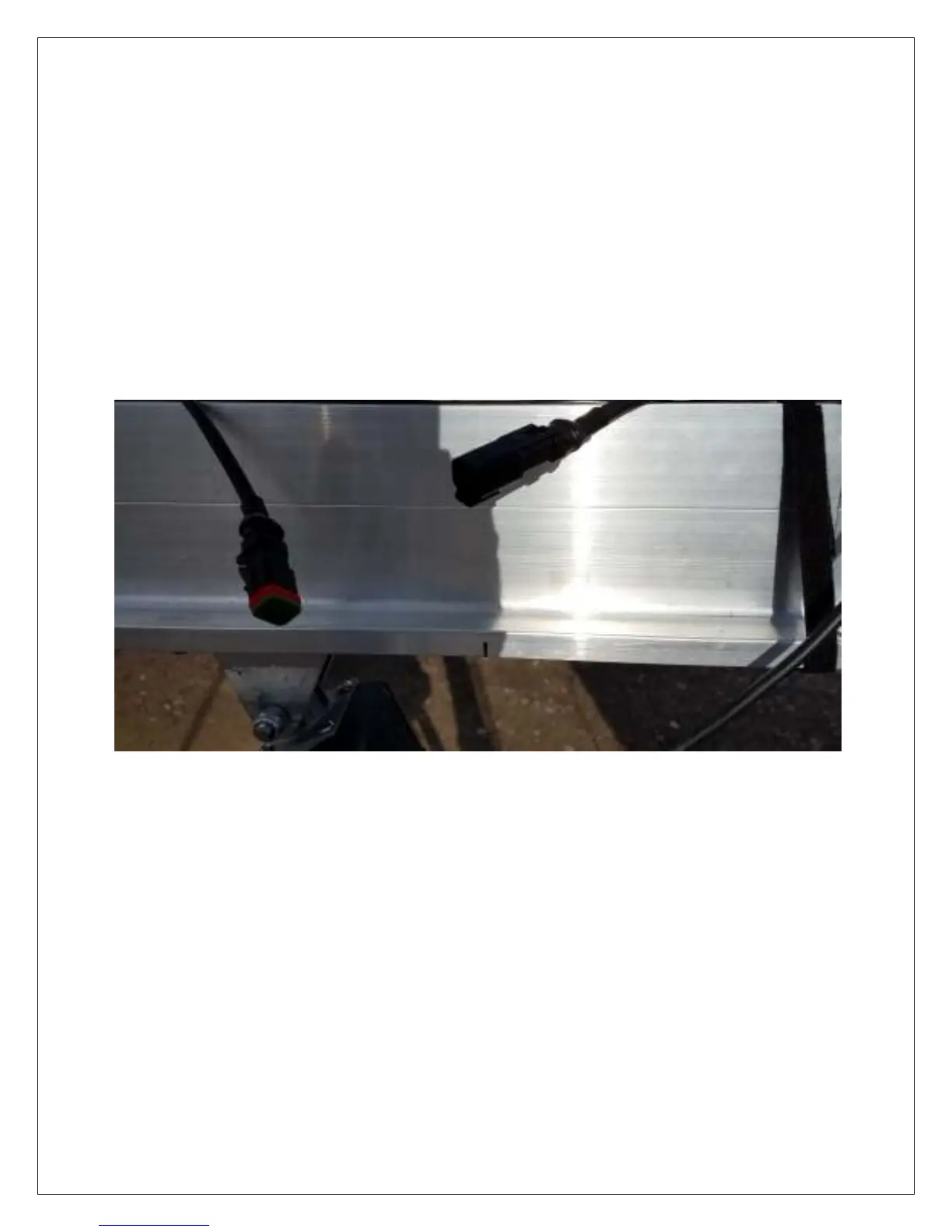

ARRANGE WIRE SUCH THAT EACH ACTUATOR HAS A MALE AND FEMALE CONNECTOR
(FIG.1).
FIG. 1
