Floe VSD 8000 - STEP 5: Cradle Assembly; Side Cradle Beam Placement and Securing

15
STEP 5


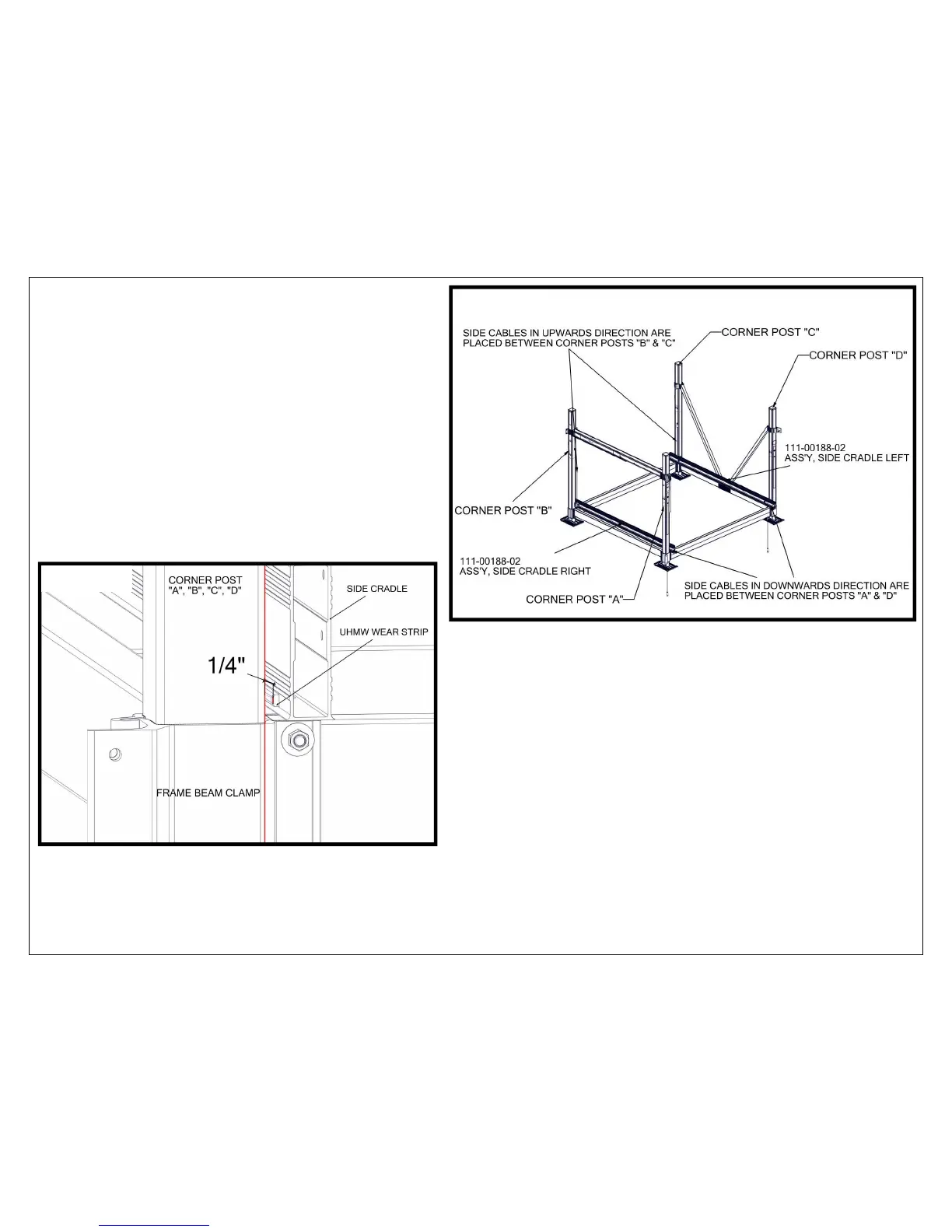

PLACE THE LEFT & RIGHT SIDE CRADLE BEAMS ON TOP
OF THE FRAME BEAMS. THE END WITH THE CABLE
COMING THROUGH THE TOP OF THE SIDE CRADLE
BEAM IS PLACED BY CORNER POSTS “B” AND “C”
THE END WITH THE CABLE COMING THROUGH THE
BOTTOM OF THE SIDE CRADLE BEAM IS PLACES BY
CORNER POSTS “A” AND “D” (FIGURE 5.1).
 NOTE: A ¼” GAP MUST BE MAINTAINED BETWEEN
UHMW WEAR STRIP AND CORNER POST (FIGURE 5.2).
FIGURE
5.1
FIGURE
5.2
