Floe VSD 8000 - Page 16

16

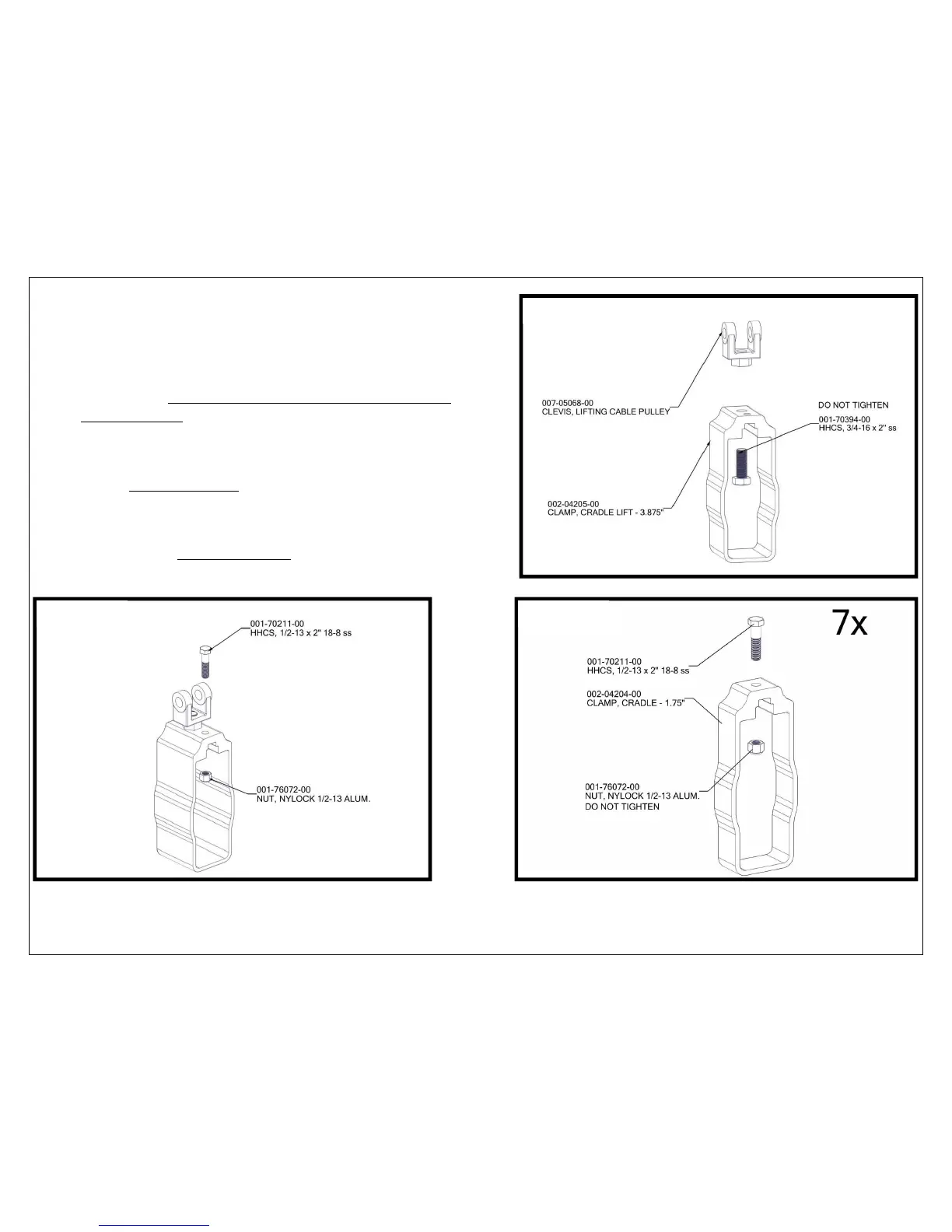

STEP 5

ATTACH LIFTING CABLE CLEVIS TO THE CRADLE LIFT CLAMP
USING A 3/4”-16 x 2” BOLT (FINE THREAD). MAKE SURE THE BOLT
IS SEATED IN THE SLOT OF THE CLAMP WHEN TIGHTENING THE
CABLE CLEVIS. DO NOT TIGHTEN THE CLEVIS COMPLETELY
AT THIS POINT. (FIGURE 5.3).
 INSTALL A ½” x 2” BOLT THROUGH THE OTHER HOLE IN LIFTING
CLAMP WITH A ½” NYLOCK IN THE SLOT ON THE INSIDE OF THE
CLAMP. DO NOT TIGHTEN (FIGURE 5.4).
 INSTALL A ½” x 2” BOLT THROUGH THE HOLE IN EACH CRADLE
CLAMP WITH A ½” NYLOCK NUTS IN THE SLOT ON THE INSIDE
OF THE CLAMP. DO NOT TIGHTEN (FIGURE 5.5).
FIGURE
5.3
FIGURE
5.4
FIGURE
5.5
