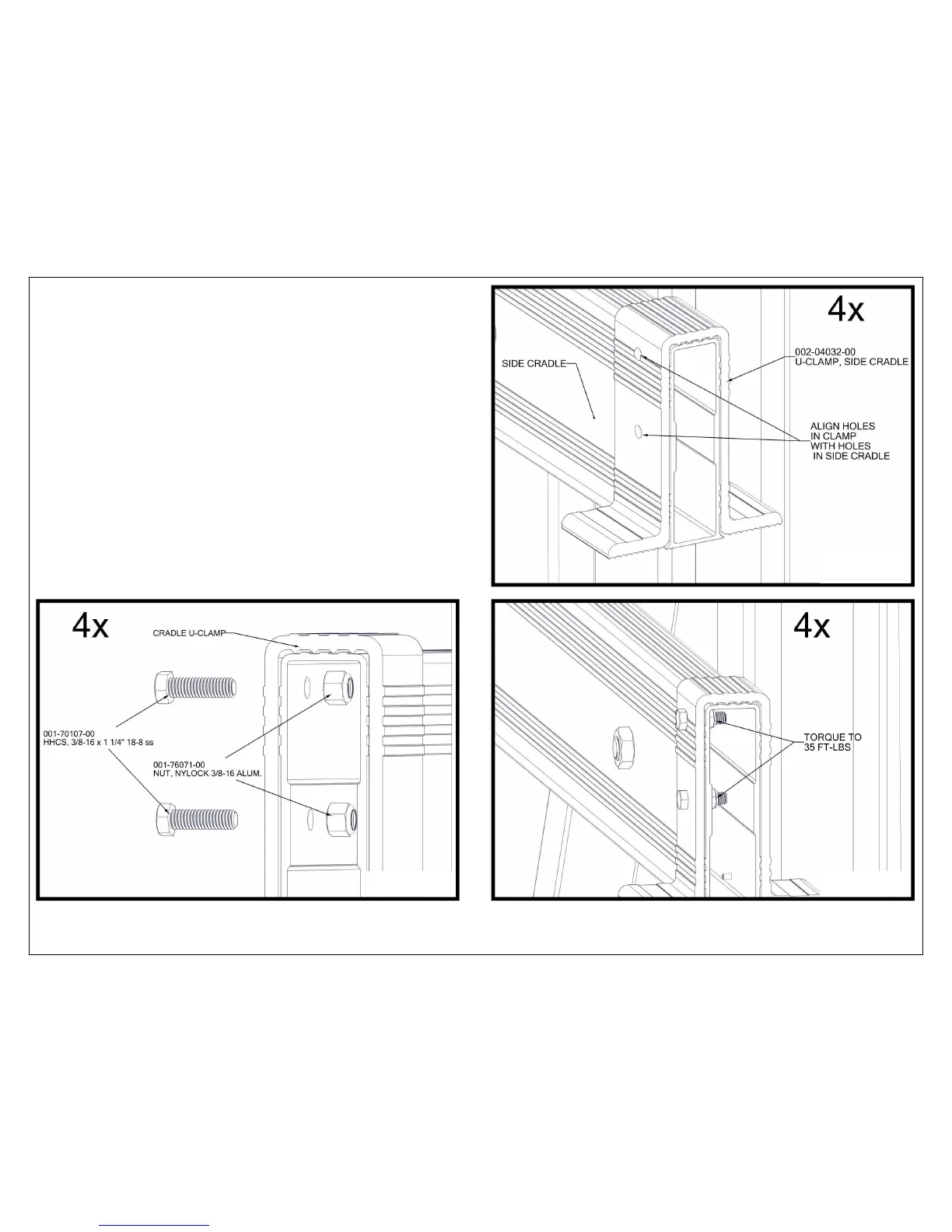

PLACE A CRADLE U-CLAMP ON BOTH CORNERS
OF EACH SIDE CRADLE BEAM AND ALIGN THE
HOLES ON THE INSIDE OF THE SIDE CRADLE
BEAMS (FIGURE 5.6).
ATTACH CRADLE U-CLAMPS USING (2) 3/8” x 1 ¼”
BOLTS AND (2) NYLOCK NUTS (FIGURE 5.7).
TORQUE TO 35 FT-LBS (FIGURE 5.8).
