18
STEP 5


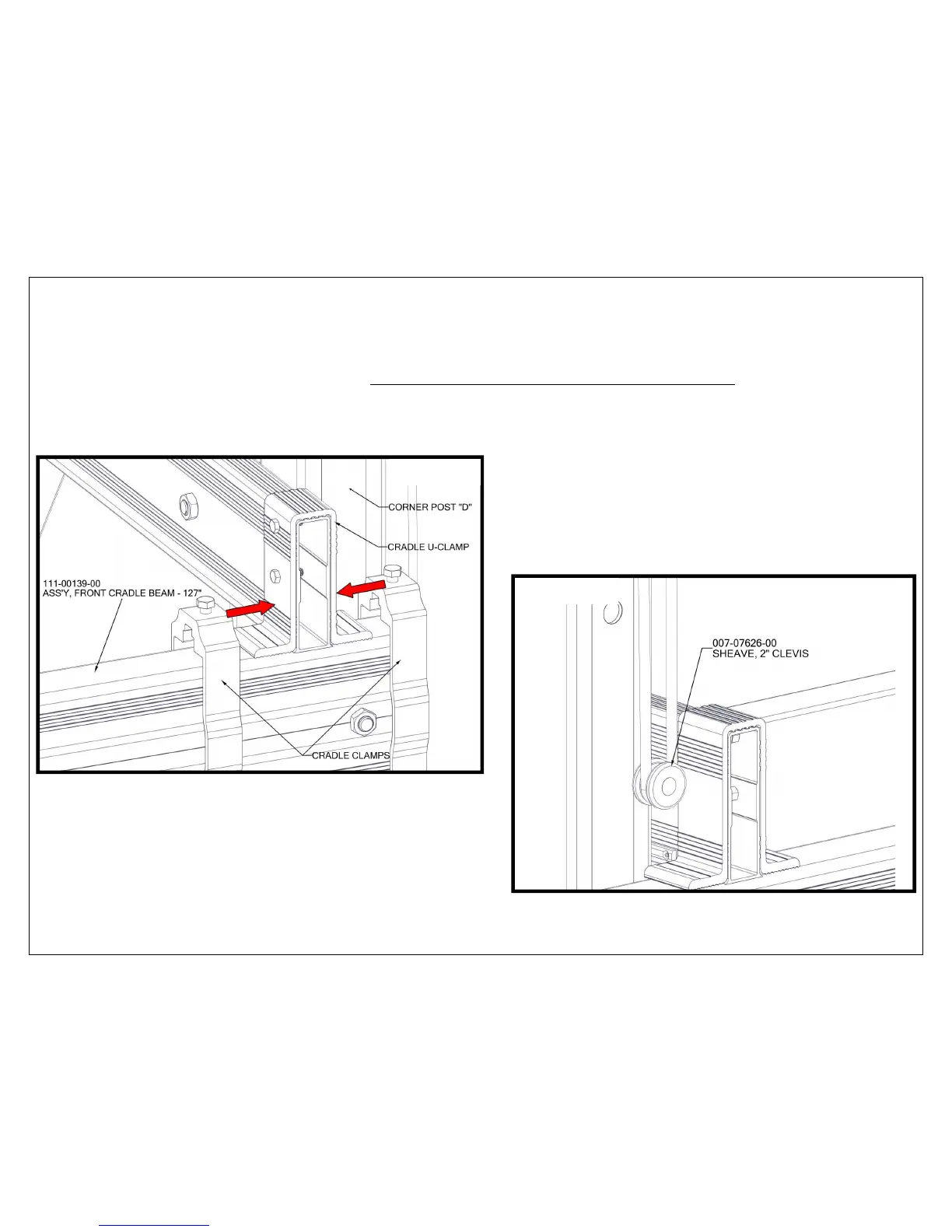

ATTACH FRONT AND REAR CRADLE BEAMS TO SIDE CRADLE BEAMS USING PRE-ASSEMBLED CRADLE CLAMPS (FIGURE 5.9, 5.10, & 5.12).
 PLACE THE LIFTING CABLE INTO THE 2” SHEAVE. NOTE THAT SHEAVE IS IN “STEP SEVEN” OF HARDWARE CARD. (FIGURE 5.11).
FIGURE
5.11
FIGURE
5.9
