STEP 5

USING A PAIR OF C-CLAMP PLIERS (MIN. 8” OPENING), SNUG
CRADLE CLAMPS TO CRADLE U-CLAMPS BEFORE TIGHTENING ½” x
2” BOLTS.
CONFIRM ¼” GAP BETWEEN SIDE CRADLE BEAMS AND CORNER
POST (FIGURE 5.2)
 TORQUE TO 80 FT-LBS (FIGURE 5.13 & 5.14).

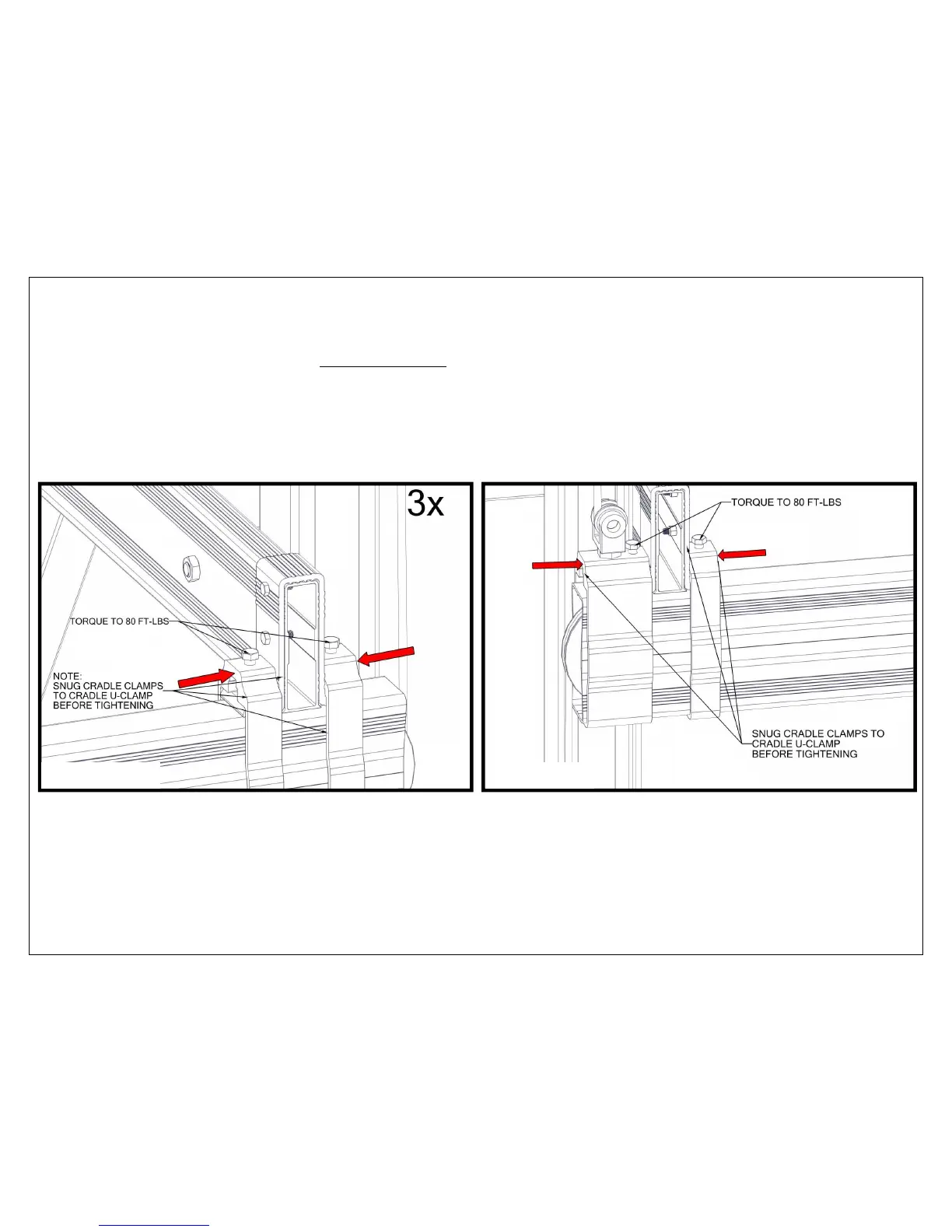

FIGURE
5.14
FIGURE
5.13
