STEP 6


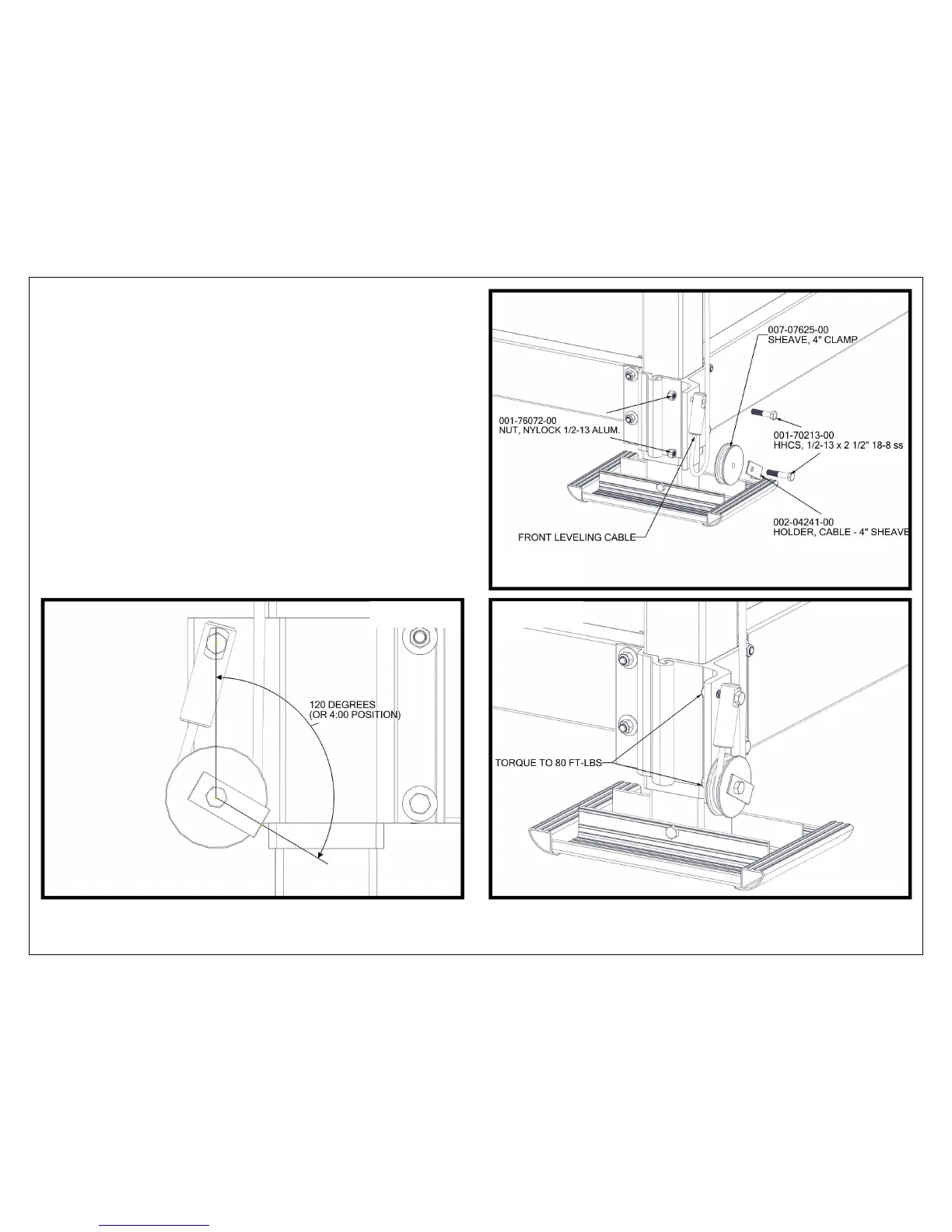

WRAP FRONT LIFTING CABLE AROUND SHEAVE AND ATTACH
TO LIFTING CLAMP ON CORNER POST “A” WITH A ½” x 2 ½”
BOLT AND ½” NYLOCK NUT.
ATTACH CABLE END TO LOWER CLAMP WITH ½” x 2 ½” BOLT
AND ½” NYLOCK NUT (FIGURE 6.1).
 CABLE HOLER IS PLACED AT APPROXIMATELY 120 DEGREES
FROM VERTICAL CLOCKWISE (OR AT A 4:00 POSITION)
(FIGURE 6.2).
 TORQUE TO 80 FT-LBS (FIGURE 6.3).
FIGURE
6.1
FIGURE
6.2
FIGURE
6.3
