Floe VSD 8000 - Page 22

22
STEP 6


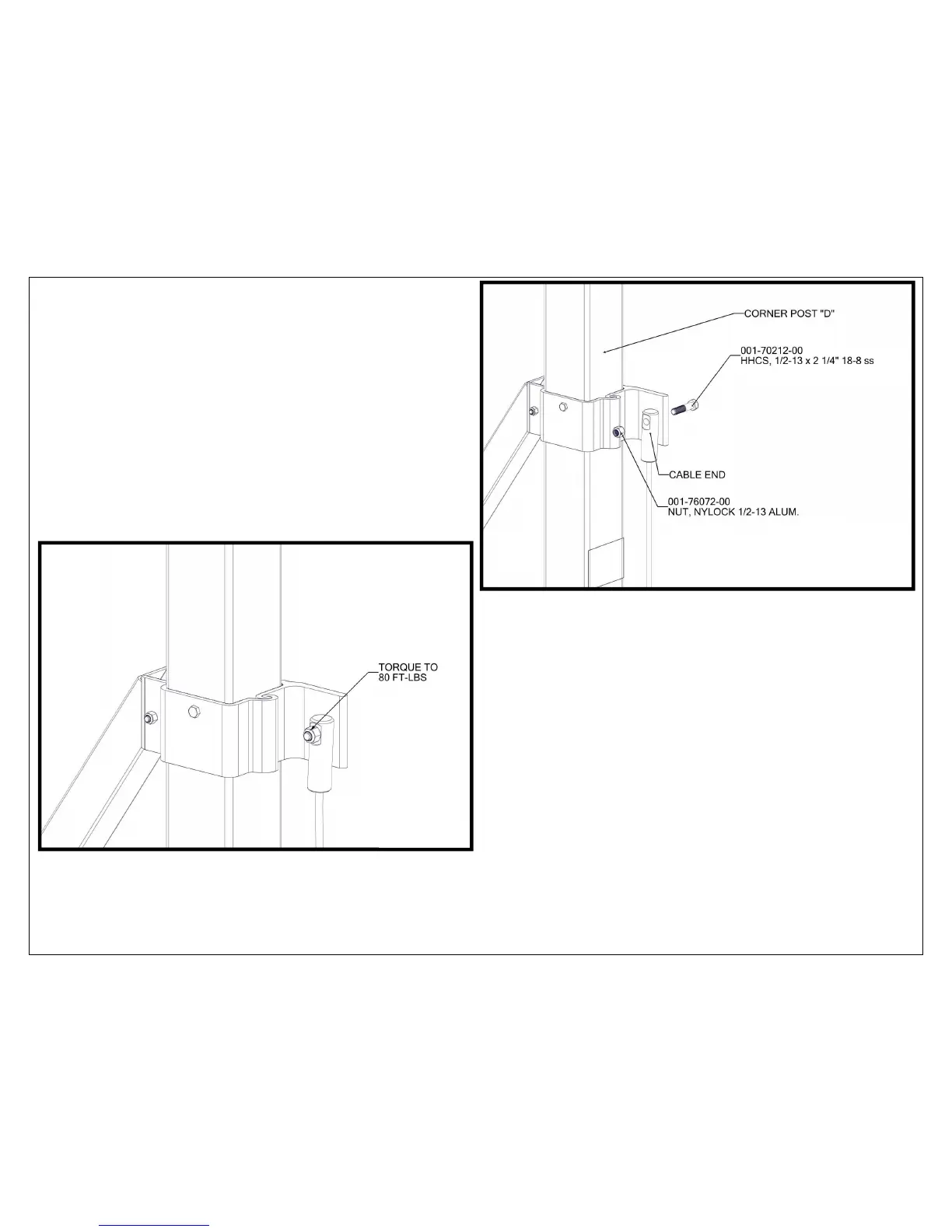

WHILE LIFTING OPPOSITE END OF FRONT CRADLE BEAM,
ATTACH OTHER END OF CABLE TO UPPER V-BRACE CLAMP
ON CORNER POST “D” WITH A ½” x 2 ¼” BOLT AND ½”
NYLOCK NUT (FIGURE 6.4).
 TORQUE TO 80 FT-LBS (FIGURE 6.5).
FIGURE
6.4
FIGURE
6.5
