24

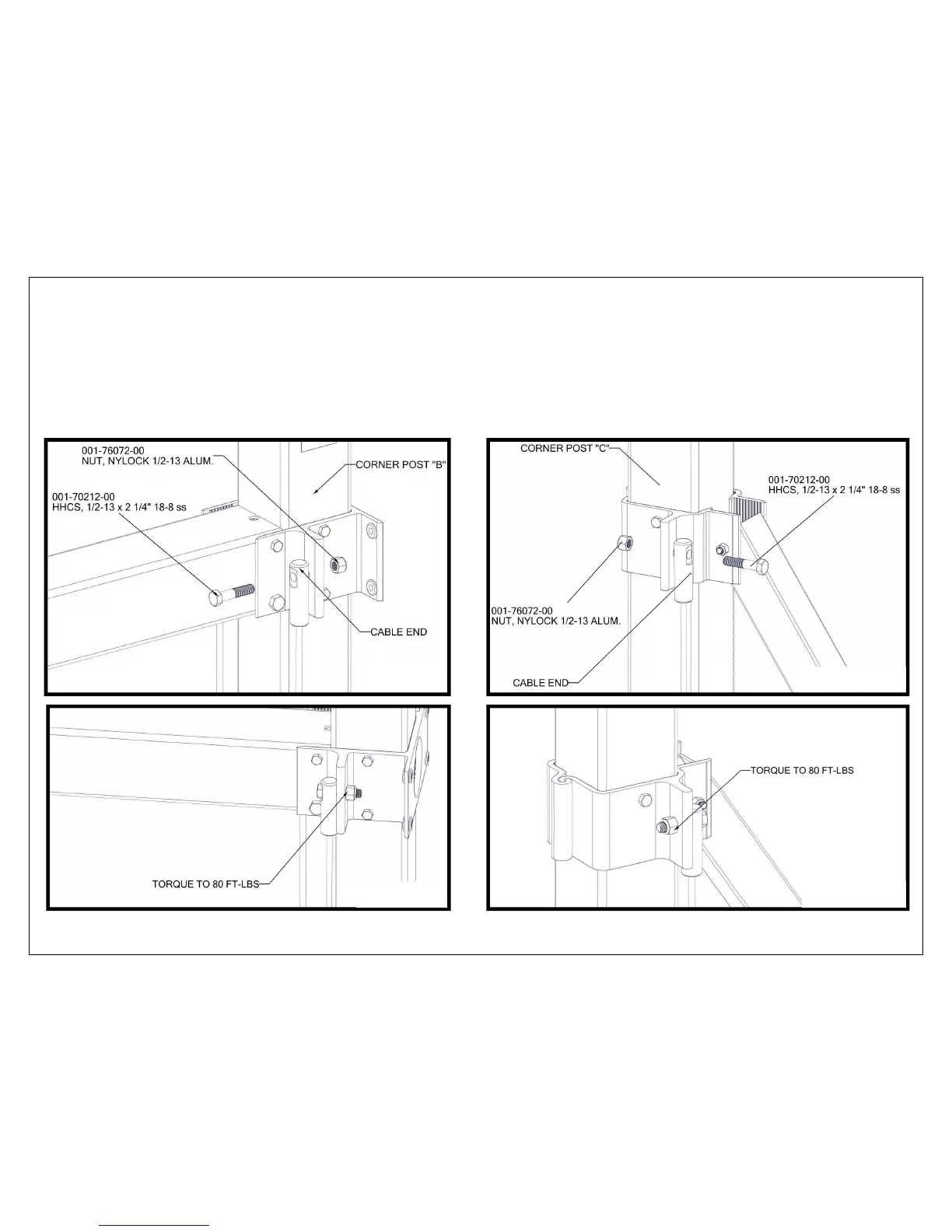

STEP 6

THE SIDE LEVELING CABLE END PLACED AT CORNER POSTS “B” & “C” ARE
ATTACHED WITH A ½” x 2 ¼” BOLT AND ½” NUT (FIGURE 6.8 & 6.10).
 TORQUE TO 80 FT-LBS (FIGURE 6.9 & 6.11)
FIGURE
6.8
FIGURE
6.9
FIGURE
6.10
FIGURE
6.11
