30

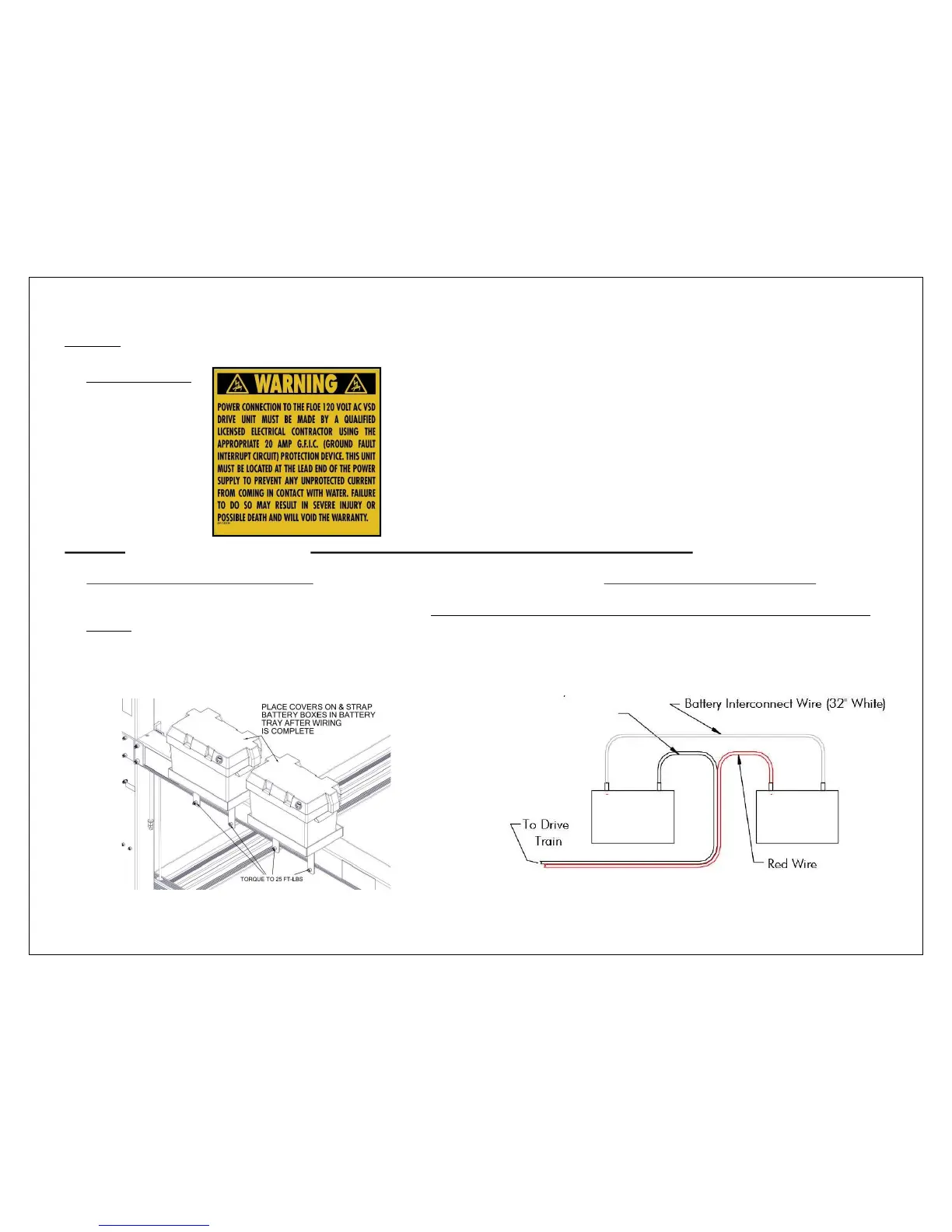

STEP 8
1. AC ONLY - THE DRIVE TRAIN CAN NOW BE CONNECTED TO THE POWER SOURCE. IT IS VERY IMPORTANT THAT THIS CONNECTION BE MADE IN
ACCORDANCE WITH STATE AND LOCAL REGULATIONS.
SEE WARNING:
2. DC ONLY - 24 VOLT BATTERY SETUP (SEE VSD DRIVE INSTRUCTIONS FOR ADDITIONAL DETAILS)
CONNECT REMAINING RED AND RED & BLACK WIRES FROM THE ASC WITH RING TERMINALS TO THE BATTERIES. THE RED WIRE IS CONNECTED TO THE
POSITIVE POST ON THE SECOND BATTERY AND THE RED & BLACK WIRE IS CONNECTED TO THE NEGATIVE POST ON THE FIRST BATTERY.
CONNECT THE WHITE BATTERY INTERCONNECT CABLE TO THE POSITIVE POST OF THE FIRST BATTERY AND THE NEGATIVE POST OF THE SECOND
BATTERY.
AT THIS TIME, ATTACH THE BATTERY VOLT METER (INCLUDED WITH BATTERY BOX, SEE INCLUDED INSTRUCTIONS (RED-POSITIVE, BLACK-NEGATIVE)).
TORQUE 3/8” NUTS FOR BATTERY TRAYS TO 25 FT-LBS.
