STEP 7 (NO CANOPY)

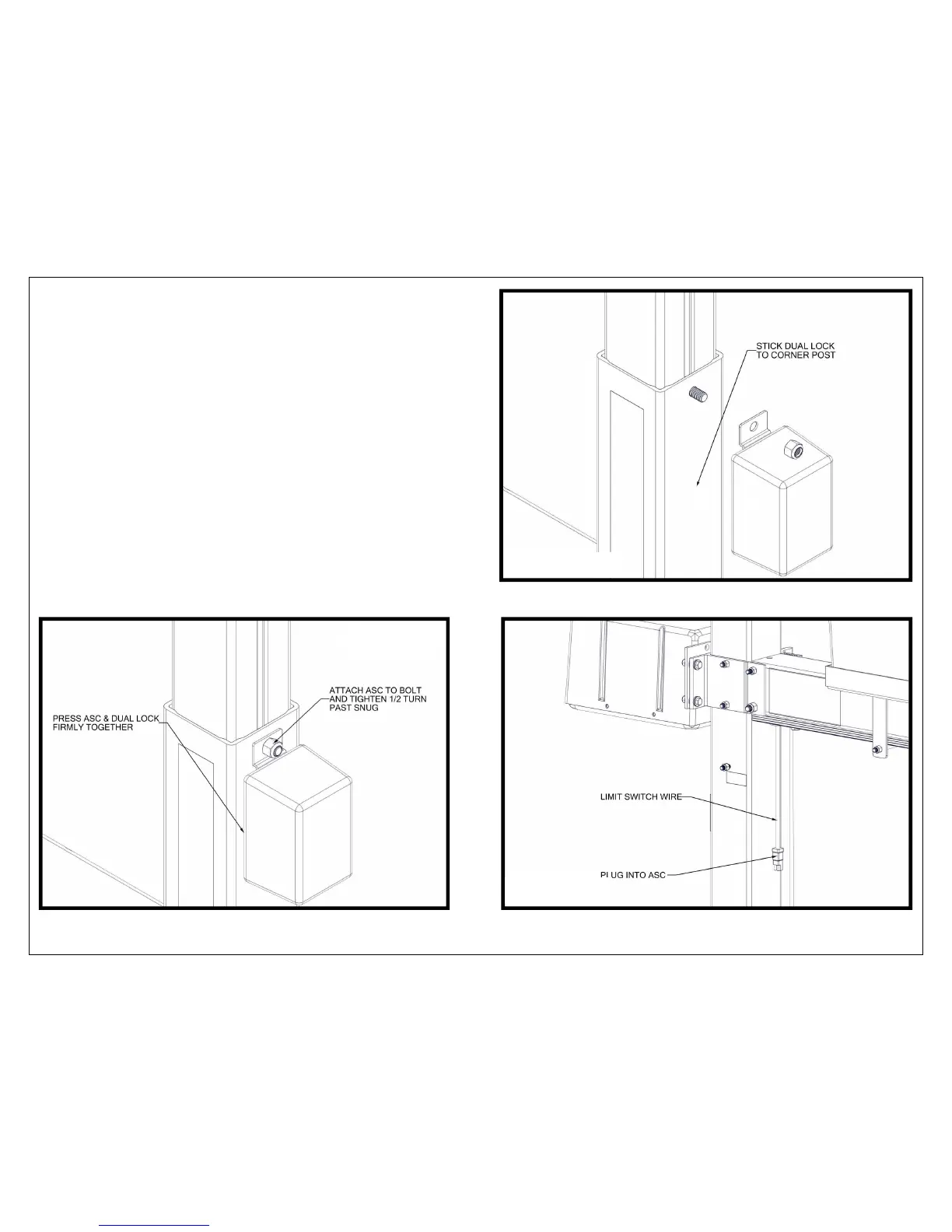

 STICK DUAL LOCK ON CORNER POST BELOW LOCATION OF
ASC. ATTACH THE UNIT TO THE UPPER HOLE IN CORNER
POST AND TIGHTEN ½ TURN PAST SNUG. PRESS ASC AND
DUAL LOCK FIRMLY TOGETHER (FIGURE 7.13 & 7.14).
 PLUG LIMIT SWITCH WIRE FROM THE LIFT FRAME INTO THE
LIMIT SWITCH PLUG FROM THE WCS. THE LIMIT SWITCH WIRE
FROM THE LIFT FRAME IS LOCATED ON THE CHANNEL ON
THE BOTTOM SIDE OF THE BALL SCREW TUBE. (FIGURE 7.15).
FIGURE
7.13
FIGURE
7.14
FIGURE
7.15
