Floe VSD 8000 - STEP 7 (IF USING CANOPY): ASC Box Attachment

28
STEP 7 (IF USING CANOPY)

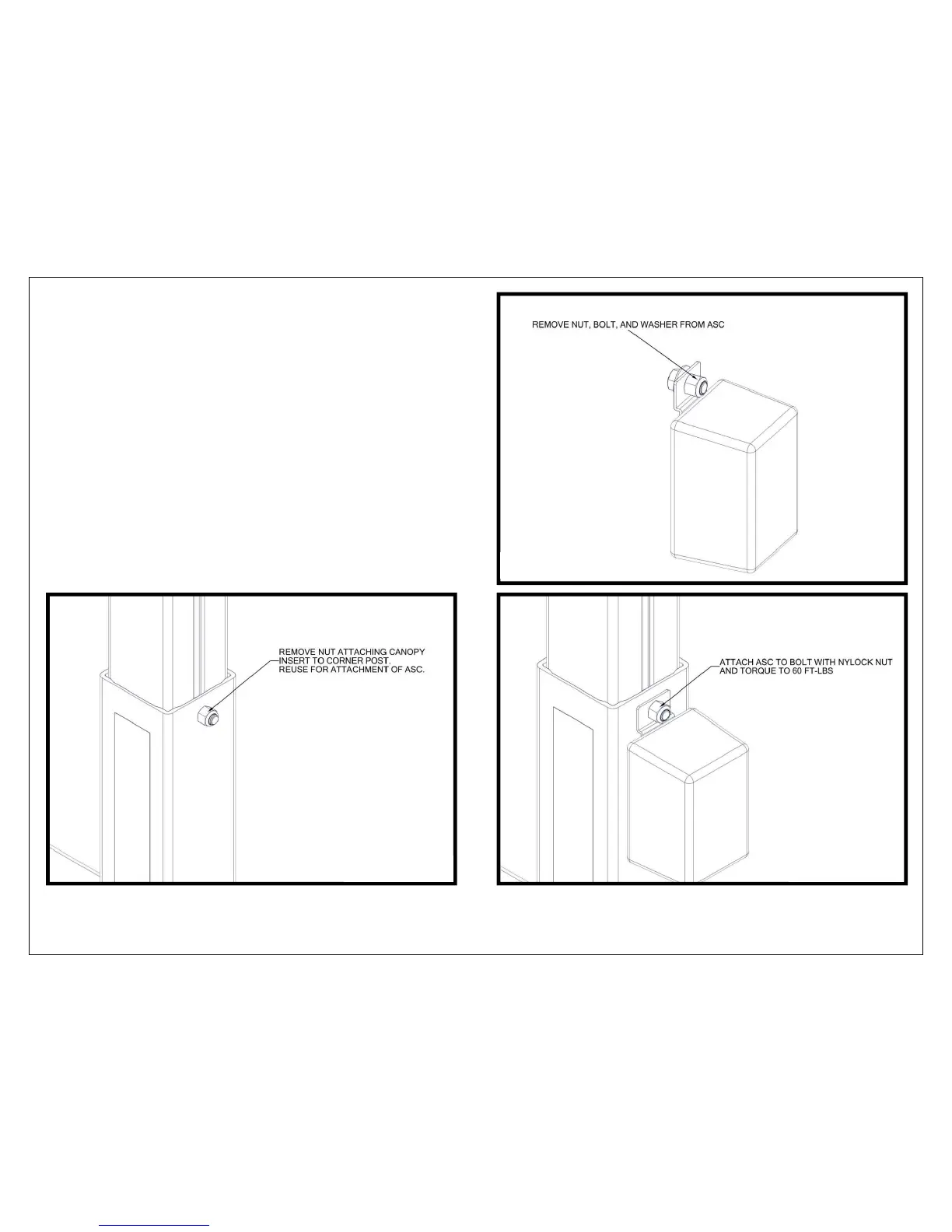

 REMOVE THE NUT, BOLT, AND WASHER FROM THE
ASC AS THEY WILL NOT BE NEEDED (FIGURE 7.10).
REMOVE NUT FROM ½” x 1 ¼” BOLT HOLDING
CANOPY INSERT (FIGURE 7.11).
ATTACH ASC BOX TO BOLT WITH NUT FROM
CORNER POST, AND TORQUE TO 60 FT-LBS
(FIGURE 7.12).
FIGURE
7.10
FIGURE
7.11
FIGURE
7.12
