Flotec FP7100 User Manual

For parts or assistance, call Flotec Customer Service at 1-800-365-6832
Installation 5
TESTING FOR BLADDER
LEAKAGE
Step 1. Disconnect power to pump.
Step 2. Drain water from tank bladder by opening
faucet closest to tank.
Step 3. Remove valve cap and release all pressure
by depressing valve core. When air stops
coming from valve, remove valve core to
release remaining pressure.
Step 4. Disconnect piping from elbow on tank
cover flange.
Step 5. Carefully turn tank upside down or lay on
its side.
Retained water in tank may cause
sudden weight shift when lowering. Support tank so
it cannot fall when being lowered or inverted.
Step 6. If bladder leaks, water will run out of valve.
If so, replace bladder.
Step 7. If replacing bladder, be sure air and water
pressures are relieved before removing
cover flange. When reassembling cover
flange, do not tighten nuts or mounting
studs more than 85 in-lbs. (9.6 Nm).
NOTICE: When using metal pipe with plastic fit-
tings use only Teflon tape or Plasto-Joint Stik
1
on
male threads.
NOTICE: Most standard tanks have separate inlet
and outlet ports. Pre-charge tanks have one port
serving both functions. When replacing standard
tank with a pre-charge tank, run pipe from pump
into a tee as shown. 2nd leg of tee goes to tank
elbow; 3rd leg goes to existing service.
To service
Pressure
Relief Valve
Pressure
Gauge
Pressure
Switch
From Well
160 0893

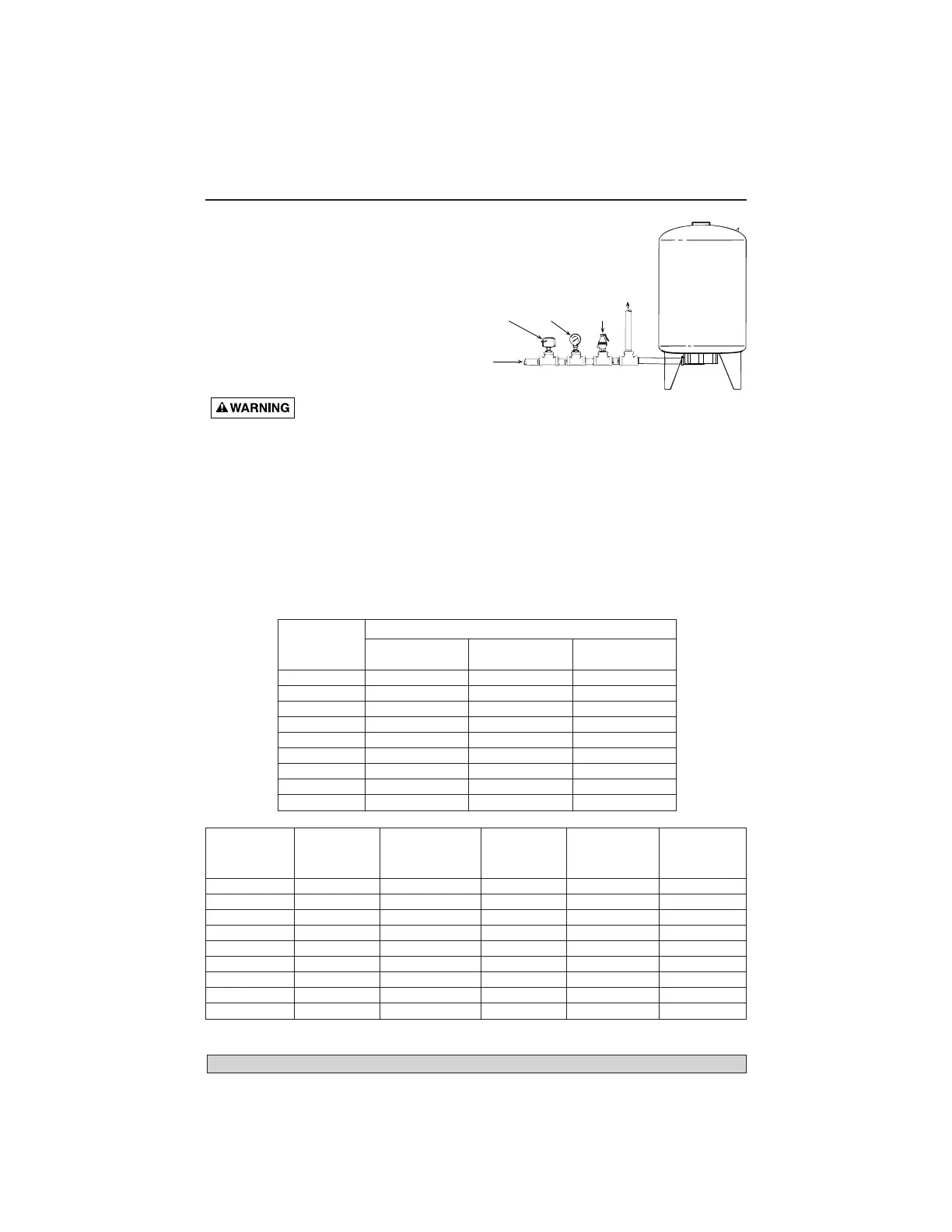

Figure 5: Typical installation with vertical
pre-charge tank and submersible well
pumps
Maximum Equivalent Tank Tank Tank
Catalog Capacity to Standard Diameter Height Discharge
Number US Gals (L) Tank US Gals (L) (mm) (mm) Tapping
FP7100 6 (23) 15 (57) 12" (305) *16-1/2" (419) 3/4"
FP7100H 6 (23) 15 (57) 12" (305) *16-1/2" (419) 3/4"
FP7110T 19 (72) 42 (159) 16" (406) 30-1/8" (765) 1"
FP7110TH 19 (72) 42 (159) 16" (406) *24-5/8" (625) 1"
FP7110 19 (72) 42 (159) 20" (508) 22-3/4" (578) 1"
FP7120 35 (132) 82 (310) 20" (508) 36-1/4" (921) 1"
FP7125 50 (189) 120 (454) 24" (610) 34-3/4" (883) 1-1/4"
FP7130 85 (322) 220 (833) 24" (610) 54" (1372) 1-1/4"
FP7135 119 (450) 320 (1211) 24" (610) 68" (1727) 1-1/4"
Drawdown - Gals (L)
Catalog
20-40 PSI 30-50 PSI 40-60 PSI
Number (138-276kPa) (207-345kPa) (276-414kPa)
FP7100 2.2 (8.3) 1.8 (6.8) 1.6 (6.1)
FP7100H 2.2 (8.3) 1.8 (6.8) 1.6 (6.1)
FP7110T 6.9 (26.1) 5.8 (22) 5.0 (18.9)
FP7110TH 6.9 (26.1) 5.8 (22) 5.0 (18.9)
FP7110 6.9 (26.1) 5.8 (22) 5.0 (18.9)
FP7120 12.7 (48.1) 10.7 (40.5) 9.3 (35.2)
FP7125 18.3 (69.3) 15.5 (58.7) 13.4 (50.7)
FP7130 30.0 (113.6) 26.0 (98.4) 22.0 (83.3)
FP7135 41.3 (156.3) 35.4 (134.0) 31.0 (117.3)
* Length overall; this model is a horizontal tank.
Product Information – Pre-Charged Tanks
