Flott TBZ 13 Plus - Page 74

Spare Part List
74 14/03/2023 212601
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation Turbo Drill TB 10 Plus SB 13 Plus
TB 13 Plus
TBZ 13 Plus
SB 15 Plus
TB 15 Plus
TBZ 15 Plus
3 1 Bracket 212513 212513 212513 212772
3 2 Retaining bolt at top 212514 212514 212514 212514
3 3 Tension spring * 007693 007693 007693 007693
3 4 Retaining bolts at bottom 212564 212564 212564 212564
4 1
Quill
212632 212632 212632
–
4 2
Groove ball bearing DIN625 *
15x35x11 – 6202 2Z
009030 009030 009030
–
4 3
Spindle pulley
212691 212696 212686
–
4 4
Feather key
007917 007917 007917
–
4 5
Spindle B12
212536
– – –
4 5 Spindel B16
–
212531 212531
–
4 6
Hexagon nut
009689 009689 009689
–
4 7
Quill Mk 2
– –
212631 212631
4 8
Groove ball bearing DIN625 *
25x52x15 – 6205 2Z
– –
007137 007137
4 9
Spindle Mk2
– –
212630 212630
4 10
Groove ball bearing DIN625 *
15x35x11 – 6202 2Z
– –
009030 009030
4 11
Spindle pulley
– –
212686 212686
4 12
Locknut M15x1
– –
009796 009796
4 13
O-ring DIN3771 D45x4.5 *
– –
007707 007707

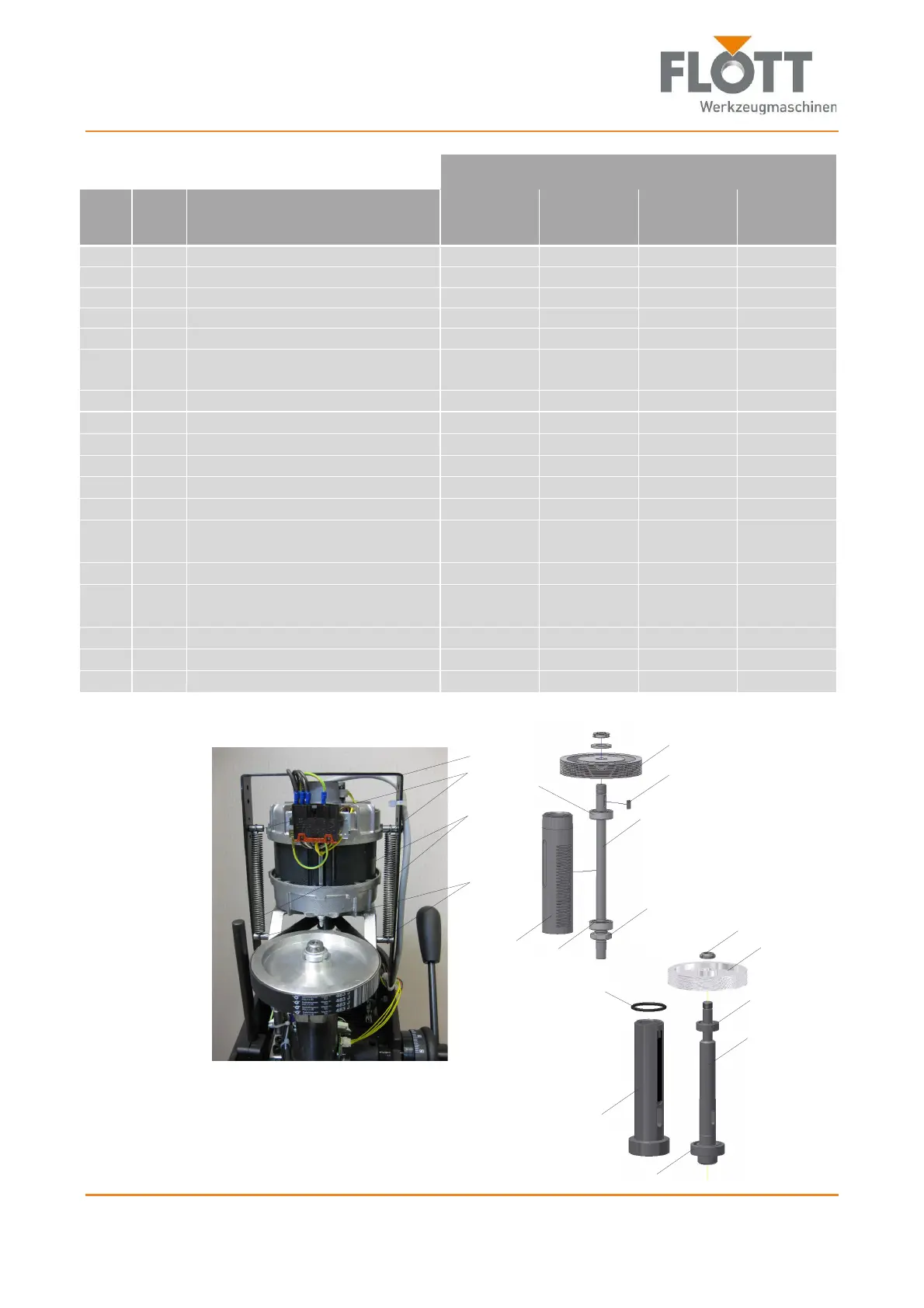

Abb./fig. 3
Abb./fig. 4
1
2
3
4
5
9
3
11
12
13
4
6
10
1
2
8
2
7
