15.0 Operating

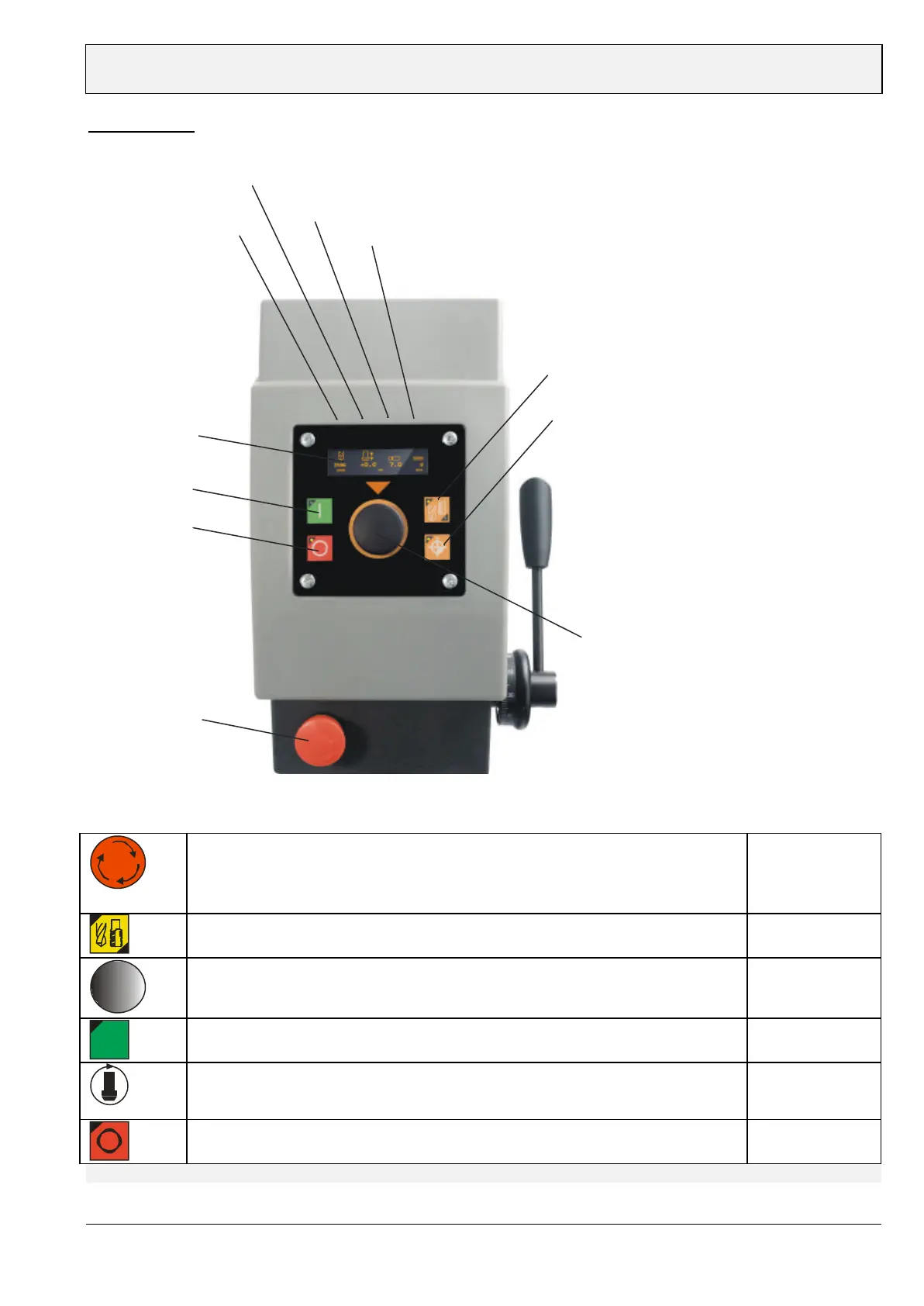

Display
drill / tapping
Drill depth display
actual value
Drill depth
nominal value
Piece counter
Zeropoint
Start
Spindle speed
(rpm)
Stop
Emergency stop
Control knob
turning= setting values
Pushing= adopting values
Activate display
Mode button
drilling / tapping
Mode Drilling / Clearance hole
- Chuck drill bit
- Clamp work piece
- Unlock emergency stop
- Close drill protection device
Set mode "Drilling"
(Display Drill Bit / LED Drilling)
Set speed(rpm) / control knob
Adopt speed(rpm) by pushing control knob
I
START
1/min
Spindle turns
Drilling
STOP
