Flott Turbo Drill - Drilling Mode with Depth Control

212516 D/GB
17
GB

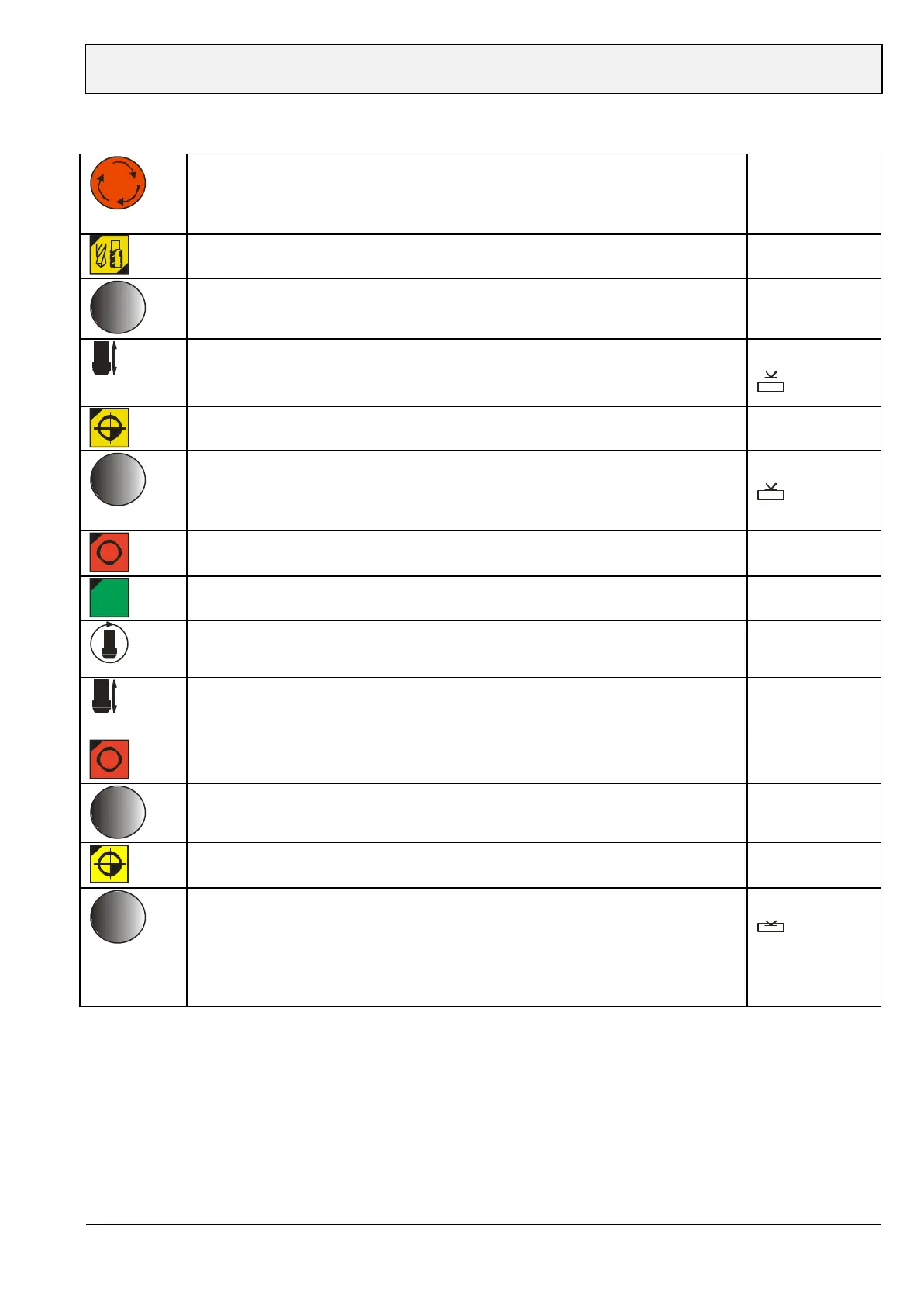

Mode drilling with depth control
- Chuck drill bit
- Clamp work piece
- Unlock emergency stop
- Close drill protection device
Display Drilling
flashes
Set mode "Drilling"
(Display Drill Bit / LED Drilling)
Set speed(rpm) / control knob
Adopt speed(rpm) by pushing control knob
mm
Feed drill bit on to work piece Display flashes
X.X
Push Zero adjustment button
Set drill depth by turning control knob
Adopt value by pushing control knob
- alternative: Set spindle to required drill depth (e.g. 8mm) by using lever
Adopt value by pushing control knob
Display flashes
X.X
Abort settings by pushing stop button
I
START
1/min
Spindle turns
mm
Drilling
with display of drill depth
(when reaching nominal depth "beep")
STOP
Change of drill settings spindle speed(rpm)
spindle speed(rpm) can be adjusted during downtime or operation by turning
control knob.
Change of drill settings zeropoint
Zero point (workpiece surface)can be adjusted during downtime or operation.
Change of drill settings drill depth
machine in operation
- Push control knob
- Set drill depth by turning control knob
- Adopt new drill depth by pushing control knob
- Now change of speed(rpm) is active again
value flashes
X.X
