FlowCon SM Series User Manual

*
*
*
*
*
*
*
*

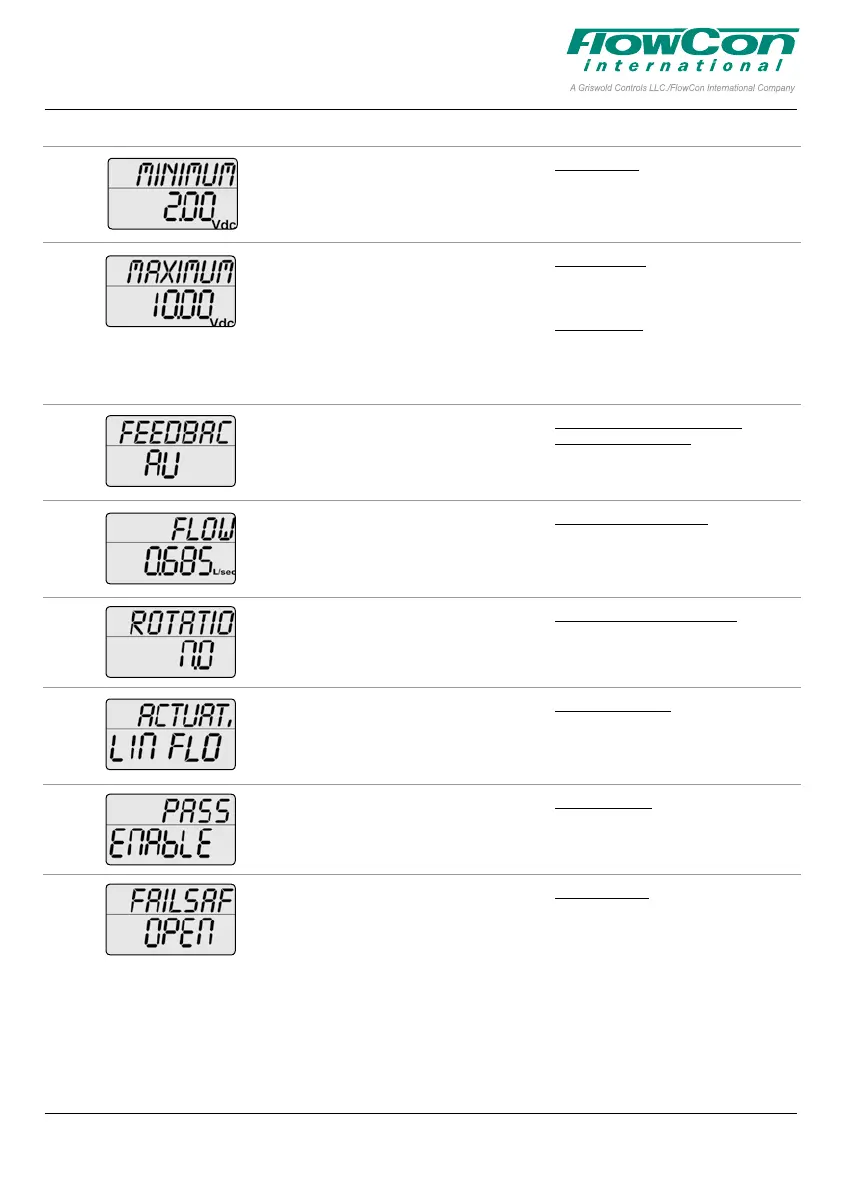

Step Display Description Values
6 Select minimum control value.
*scrolling top:
SET MINIMUM LIMIT
Volt default: 2.
Options: from 0-7. Increment: 0.1.
mA default: 4.
Options: from 0-14. Increment: 0.2.
NA if Digital (in step 5).
7 Select maximum control value.
*scrolling top:
SET MAXIMUM LIMIT
Volt default: 10.
Options: from 3-10 and at least 3 VDC
greater than the selected minimum limit.
Increment: 0.1.
mA default: 20.
Options: from 6-20 and at least 6 mA
greater than the selected minimum limit.
Increment: 0.2.
NA if Digital (in step 5).
8 Select feedback signal.
*scrolling top:
SELECT FEEDBAC SIGNAL
Default: AU; Automatic match of
control signal if analog.
Options: 0-10 VDC, 2-10 VDC or 4-20
mA or AU.
If Digital (in step 5) AU is not an option.
9 Set the designed maximum flow.
Accuracy: Greatest of either ±5% of de
-
signed max. flow or ±2% of max. valve flow.
*scrolling top:
SELECT MAXIMUM FLOW
Default: Maximum setting.
Values depend on valve model and unit
scale chosen in step 2 and 3.
Stepping increments as per tech note.
10 Select direction of rotation.
*scrolling top:
SELECT ROTAT DIRECT
Default: Normally Closed (NC).
Options: Normally Open (NO) or Nor
-
mally Closed (NC).
11 Select actuator mode.
*scrolling top:
actuator mode
Default: Linear flow.
Options: Linear flow, Equal percentage,
Linear rotation or Linear signal.
For SM.1 and SM.2 only linear rotation
will apply.
12 Activation of password.
*scrolling top:
ACTIVAT PASS WORD
Default: Disable.
Options: Enable or Disable.
If Enabled password is required to ac
-
cess alarm and programming menu.
13 Select direction of rotation when Failsafe.
*scrolling top:
SELECT FAIL SAFE DIRECT
Default: Closed.
Options: Open or Closed.
Only valid for SM.0.0.0.4 (failsafe
model). Failsafe direction open means
opening to max. flow
chosen in step 9.
FlowCon SM 15-250 mm (1/2”-10”)
1A95106 - 01/2019
This paper is a supplement to the FlowCon General Instruction
Latest release of any FlowCon material is available on www.owcon.com
Page 5 of 8
