21.TECHNICAL SPECIFICATIONS
20-60KM 60-130KM 150-300KM
Power supply 10-16VDC 10-16VDC 10-16VDC
ok.50mA ok.50mA ok.50mA
0.5-30l/h 1-60l/h 1,5-120l/h
ok. 5% ok.5% ok.5%
Range of engine power
Type S Type M
Type L
Power consumption
Flow measurement range
Fuel measurement error rate
Diameter of fuel connection 9,5mm (3/8") 9,5mm (3/8") 9,5mm (3/8")
Sensor type
Protection degre
External instrument diameter
Instrument height
IP64
62mm
17mm
IP64
62mm
17mm
IP64
62mm
17mm
23

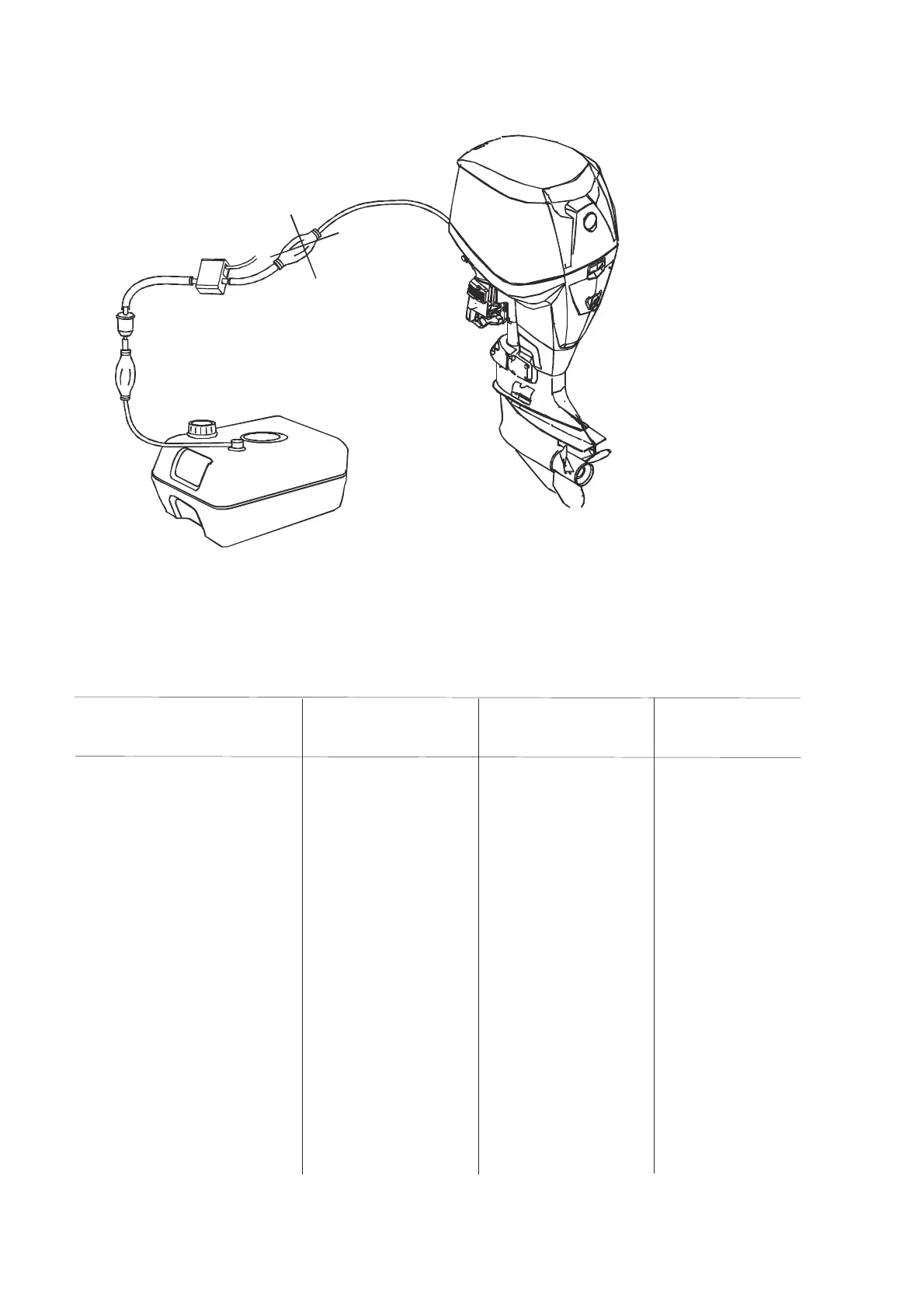

20. CONNECTING FUEL LINE
correct
fuel filter
primer bulb placement
wrong
flow sensor
fuel tank
Attention:
primer bulb must not be installed on the motor side !
It should be installed between the sensor and
the fuel tank as shown in the picture
When connecting the fuel lines
See arrow on the case.
22
Note: Fuel sensors should be protected against strong
light because they have an optical measuring
system which under the influence of external
light may not work correctly !
to sensor remember to keep
appropriate fuel flow
direction !
