Apply Power
The input power should not be turned on until the installation has been completed with all connections verified,
power and signal connection board assembly screwed down and the instrument ready to operate. Be sure any
external circuit breakers are on.
Remote Enclosure Bracket Installation
The remote enclosure can be rotated at various points around a 360° axis and bolted in place using 1/4-20
hardware. See Figure 2-8.

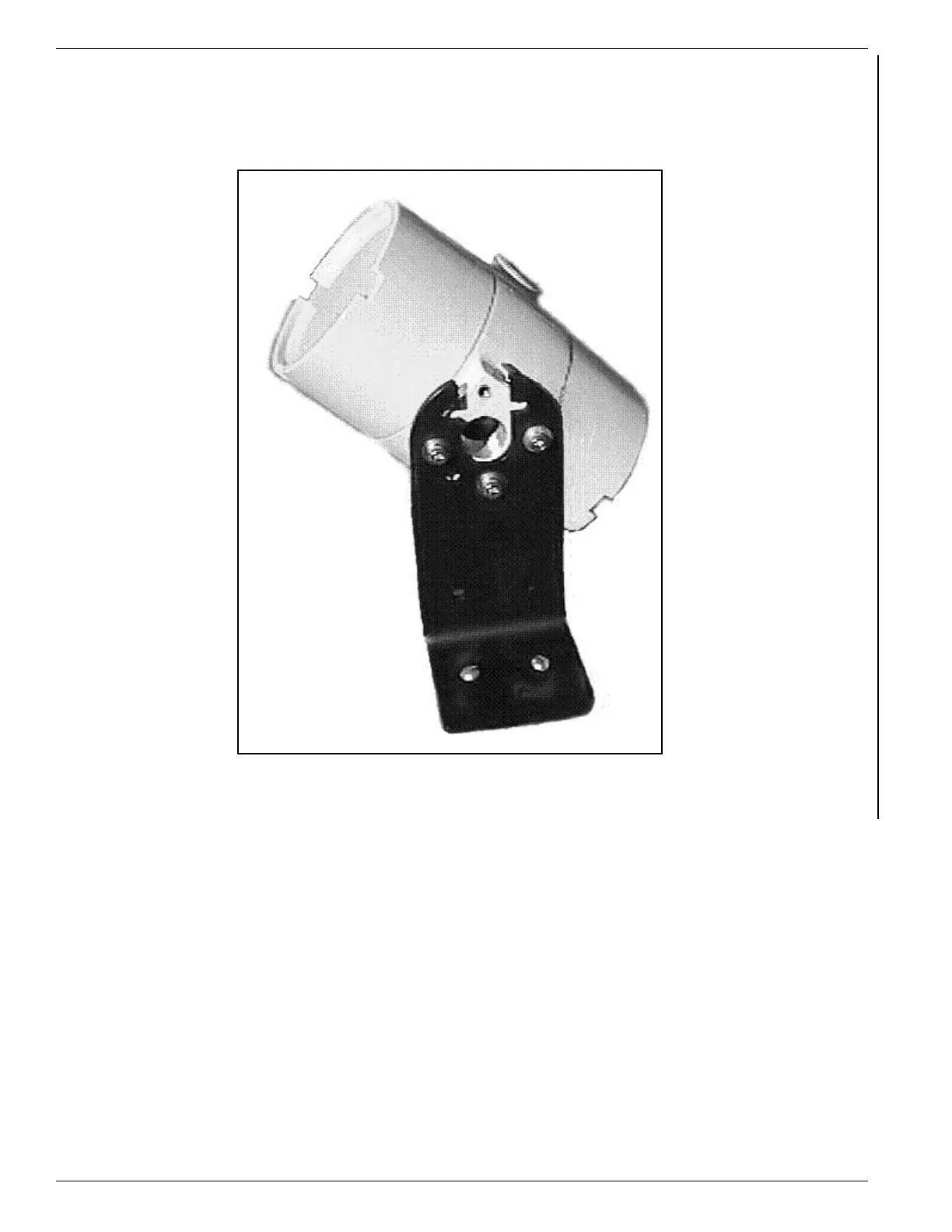

Figure 2-8. Remote Bracket Installation
