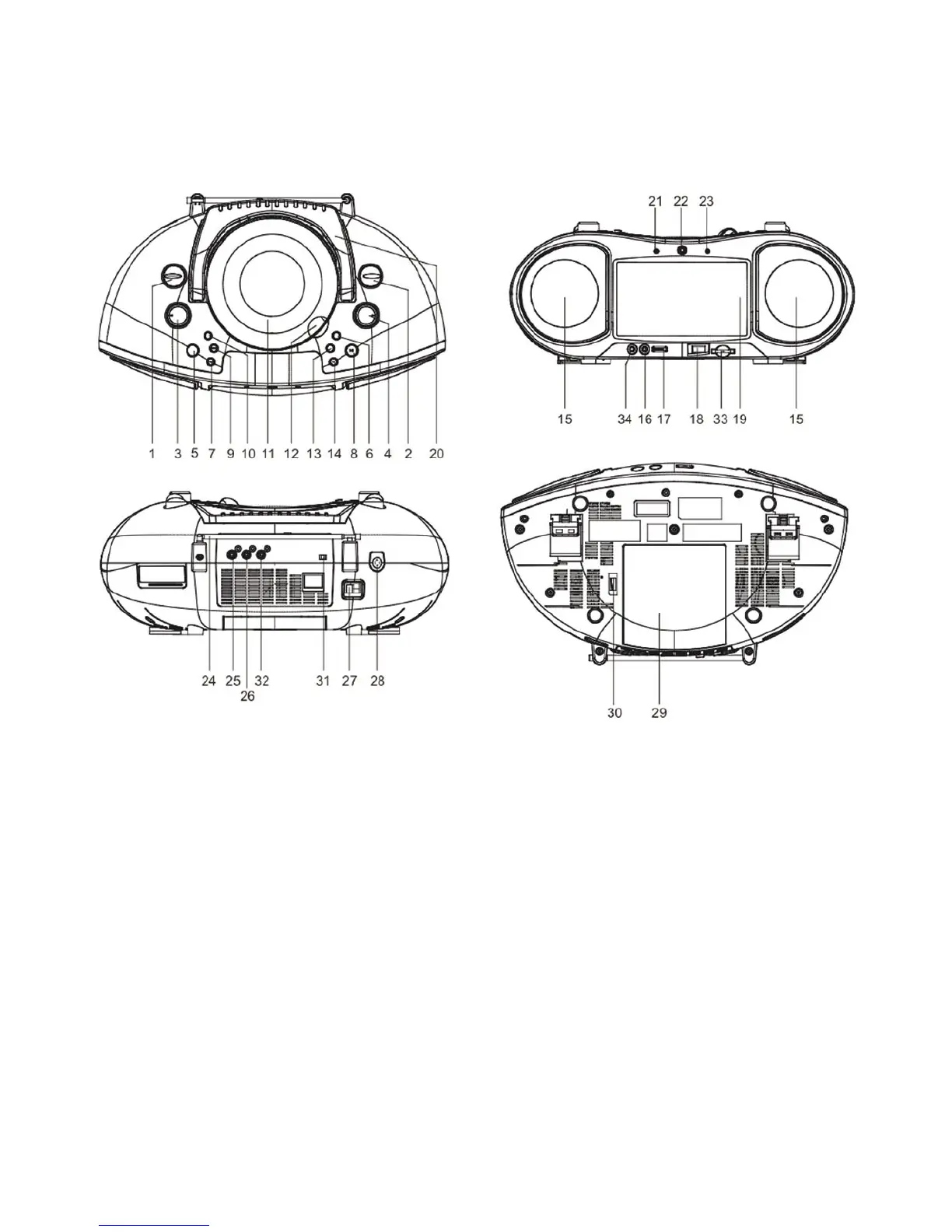

Description of the Controls and Jacks on the Main Unit
Main unit
1. FUNCTION CONTROL
2. BAND CONTROL
3. VOLUME CONTROL
4. TUNING CONTROL
5. MODE BUTTON
6. FAST FORWARD BUTTON
7. PREVIOUS BUTTON
8. PLAY/PAUSE BUTTON
9. NEXT BUTTON
10. BASS BOOST BUTTON
11. CD DOOR
12. CD DOOR OPEN SLOT
13. FAST BACKWARD BUTTON
14. STOP BUTTON
15. SPEAKERS
16. MIC SOCKET
17. MIC LEVEL
18. USB PORT
19. LCD DISPLAY
20. HANDLE
21. POWER INDICATOR
22. REMOTE SENSOR
23. FM STEREO INDICATOR
24. FM TELESCOPIC ANTENNA
25. VIDEO OUTPUT JACK
26. AUDIO RIGHT JACK
27. AC SOCKET
28. HEADPHONE JACK
29. BATTERY COMPARTMENT
30. AC VOLTAGE SELECTOR
(for dual voltage version and at
bottom of unit) (not applicable to all models)
31. DISPLAY ON/OFF SWITCH
32. AUDIO LEFT JACK
33. SD/MMC CARD SLOT
34. AUDIO-IN JACK
