Fluke 12B/18 User Manual

English
Page 4

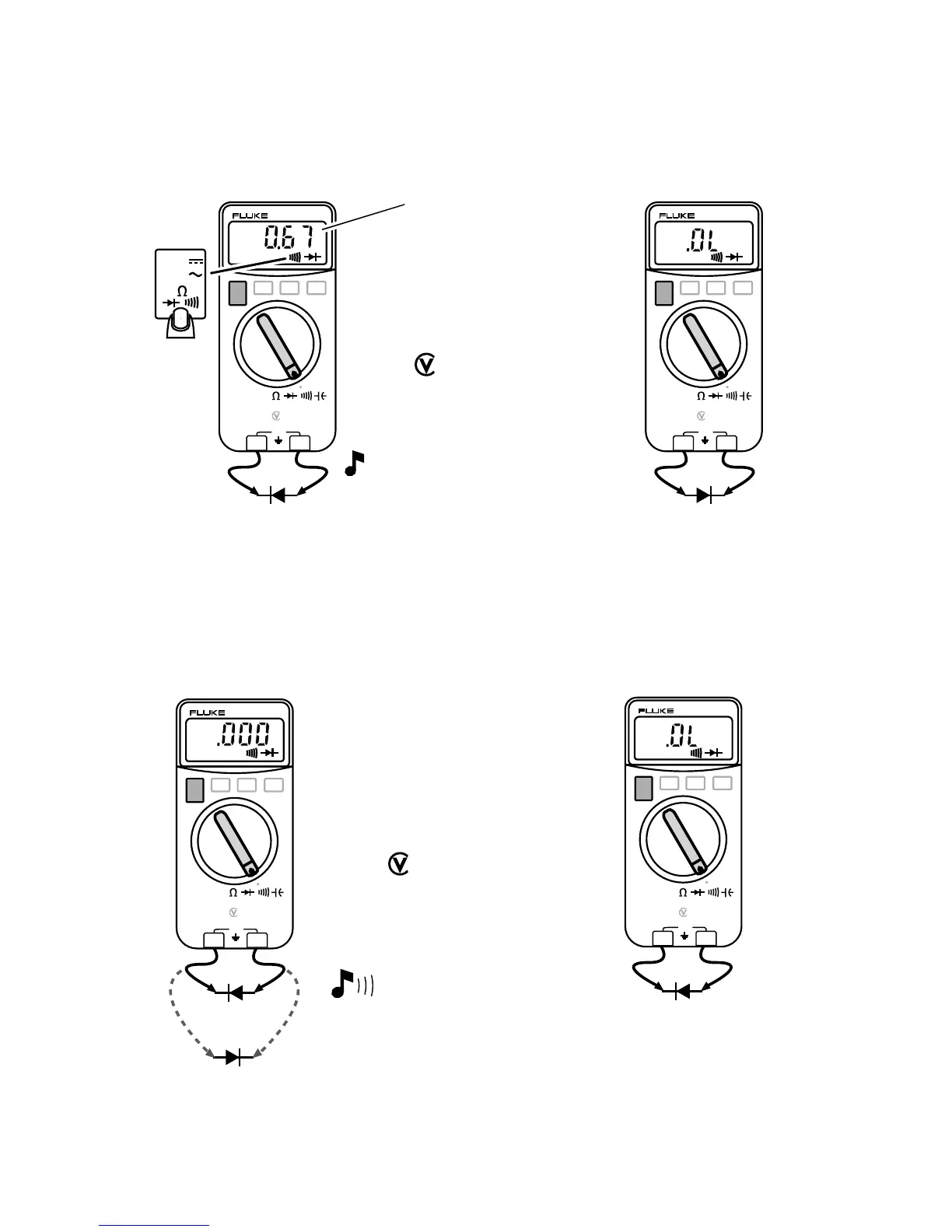

Diode Test
Good Diode
VDC
VAC
+
COM
+
COM
Typical voltage
for silicon diode
Single beep
AUTOMATIC
SELECTION
AUTOMATIC
SELECTION
AUTOMATIC
SELECTION
12B Only
LOW IMPEDANCE
LOW IMPEDANCE
LOW IMPEDANCE
600V
CAT III
600V
CAT III
ag03i.eps
Forward Bias Reverse Bias
Bad Diode
+
COM
+
COM
or
AUTOMATIC
SELECTION
AUTOMATIC
SELECTION
AUTOMATIC
SELECTION
12B Only
LOW IMPEDANCE
LOW IMPEDANCE
600V
CAT III
600V
CAT III
ag04i.eps
Shorted Open
